Gree MULTI VRF SYSTEM II GMV-120WL/A-T User Manual

81
DC Inverter Multi VRF System II
Service Manual
Note: Before airtightness test, all welding lines can’t be insulated and bundled.

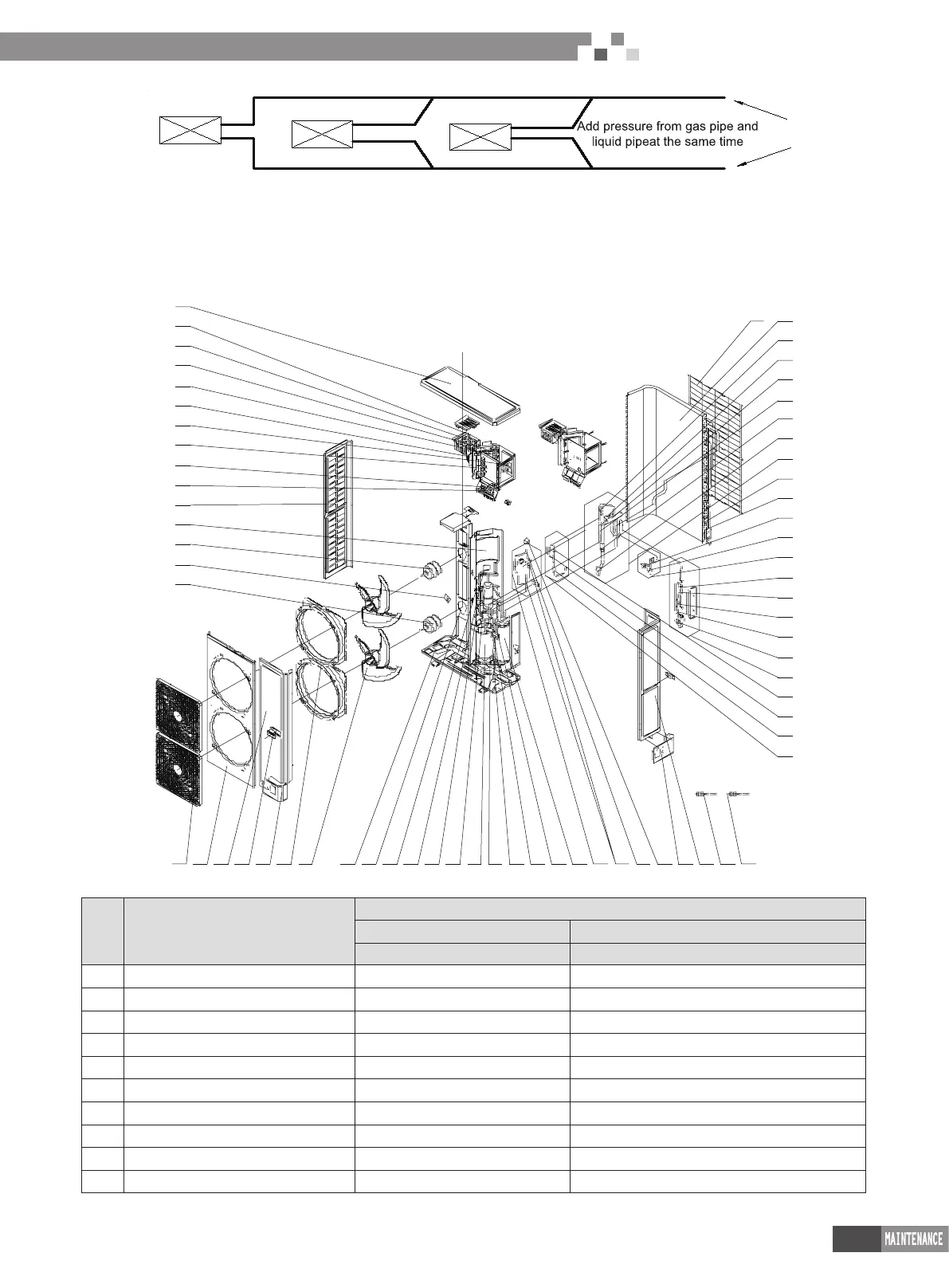

7 Exploded View of Unit and Parts’ List
7.1 Exploed view for outdoor unit and parts’ list
1) Model: GMV-120WL/A-T,GMV-140WL/A-T,GMV-160WL/A-T
Exploded view:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
52
36
51
50
49
48
47
46
45
44
37
36
43
53
57
56
55
54
58
59
60
61
6263
Parts list :
NO. Name of Part
GMV-120WL/A-T,GMV-140WL/A-T,GMV-160WL/A-T
Product Code CN850W0180 /CN850W0170/CN850W0160
Part Code Quantity
1 Coping 01264100008P 1
2 Inductance Assy 01394100050 1
3 Inductance 43120122 1
4 Electric Box Assy 01394100124 1
5 Main Board 30228000005 1
6 Radiator 49018000013 1
7 Filter Board 30228000006 1
8 Main Board 30226000045 1
9 Terminal Board 42018000026 1
10 Terminal Board 42011242 1
