4 DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS
4.1 Outdoor Unit
Double-fan Inverter Outdoor Unit, applicable toGUHD09NK3CO /GUHD12NK3CO
Disassembly and Assembly of external casing
Note: Before removing the outer housing, make sure that the unit has been cut off from the power supply.

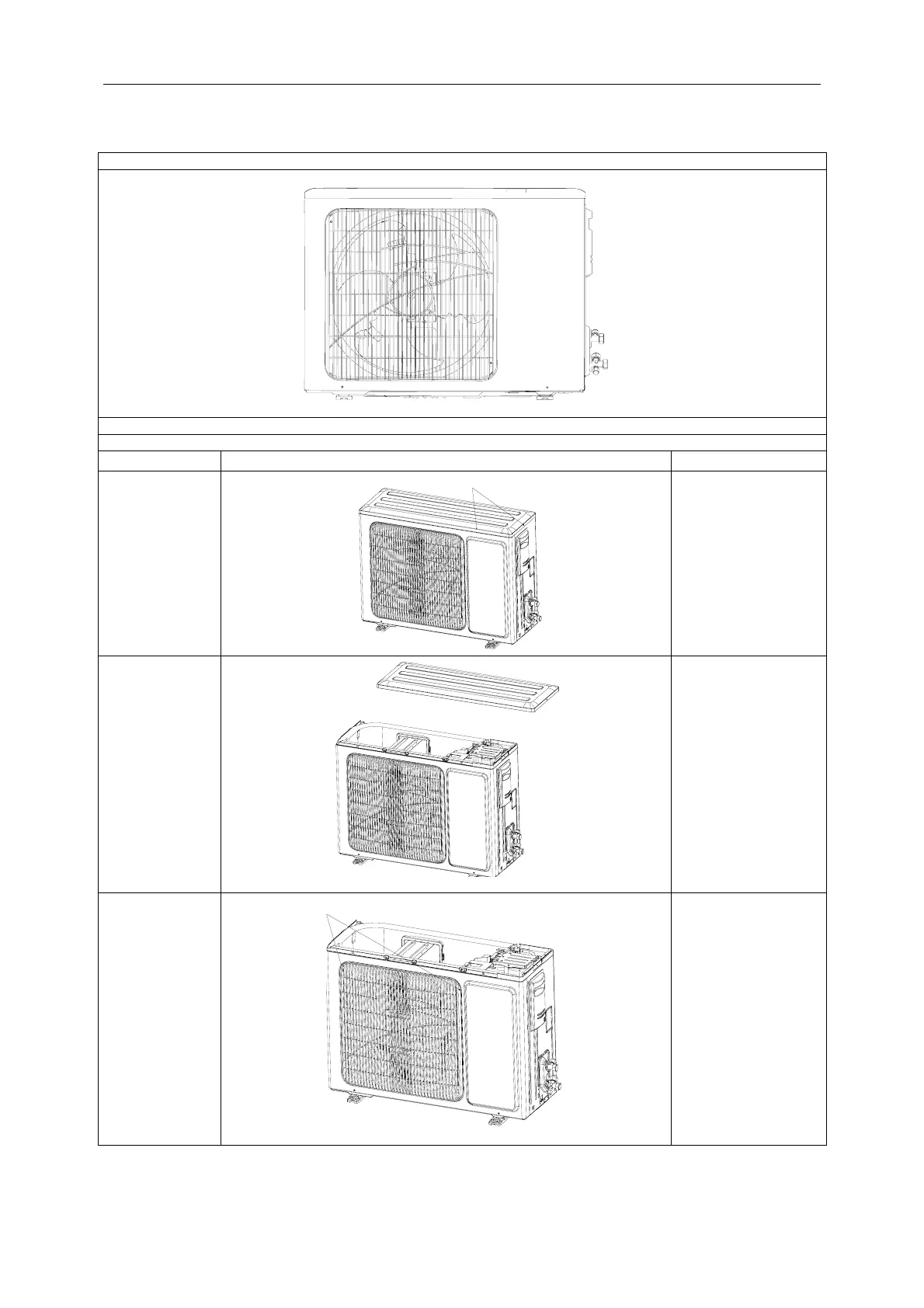

Step Illustration Handling Instruction
1 Disassemble
the top panel
a. Cut off the power
supply
b. Recover the
refrigerant
c. Loosen the screws
on the top panel with
a screw driver.
2 Remove the
top panel
Remove upwards the
top panel away from
the unit
3. Disassemble
the grille
Loosen the screws on
the grille with a screw
driver
