A/A DC INVERTER U-MATCH AIR CONDITIONERS MAINTENANCE
202
Disassembly and Assembly of electrical parts box
Remark : Before removing the electric box or electric box sub-assembly, make sure that the power has been cut
off.

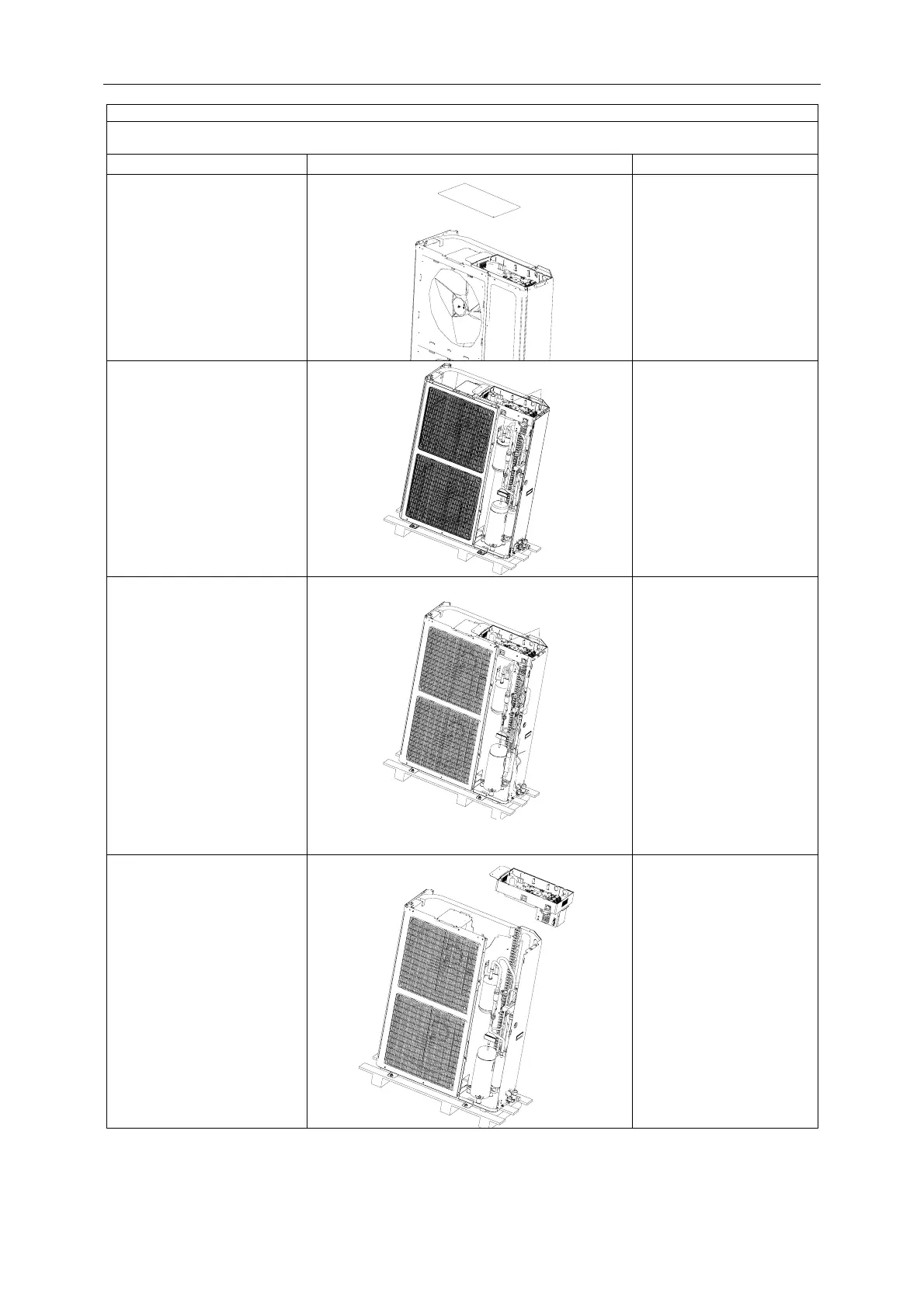

Step Illustration Handling Instruction
1. Remove the electric box
cover
● Cut off the power.
● Use the screwdriver to
remove the fixing screws
between electric box cover
and electric box.
● Remove the cover from
electric box.
2. 拆卸电器盒电源连接线
用手或者钳子拔掉电器盒电
源线
3. Loosen the screws between
the electric box and side panel
and motor base.
Loosen the screws between
the electric box and side
panel and motor base with a
screw driver.
4. Remove the electric box
sub-assembly
● Move the electric box
sub-assembly upward from
the middle isolation plate.
To Next Page
