Gree U-MATCH GUHD09NK3CO

A/A DC INVERTER U-MATCH AIR CONDITIONERS INSTALLATION
96

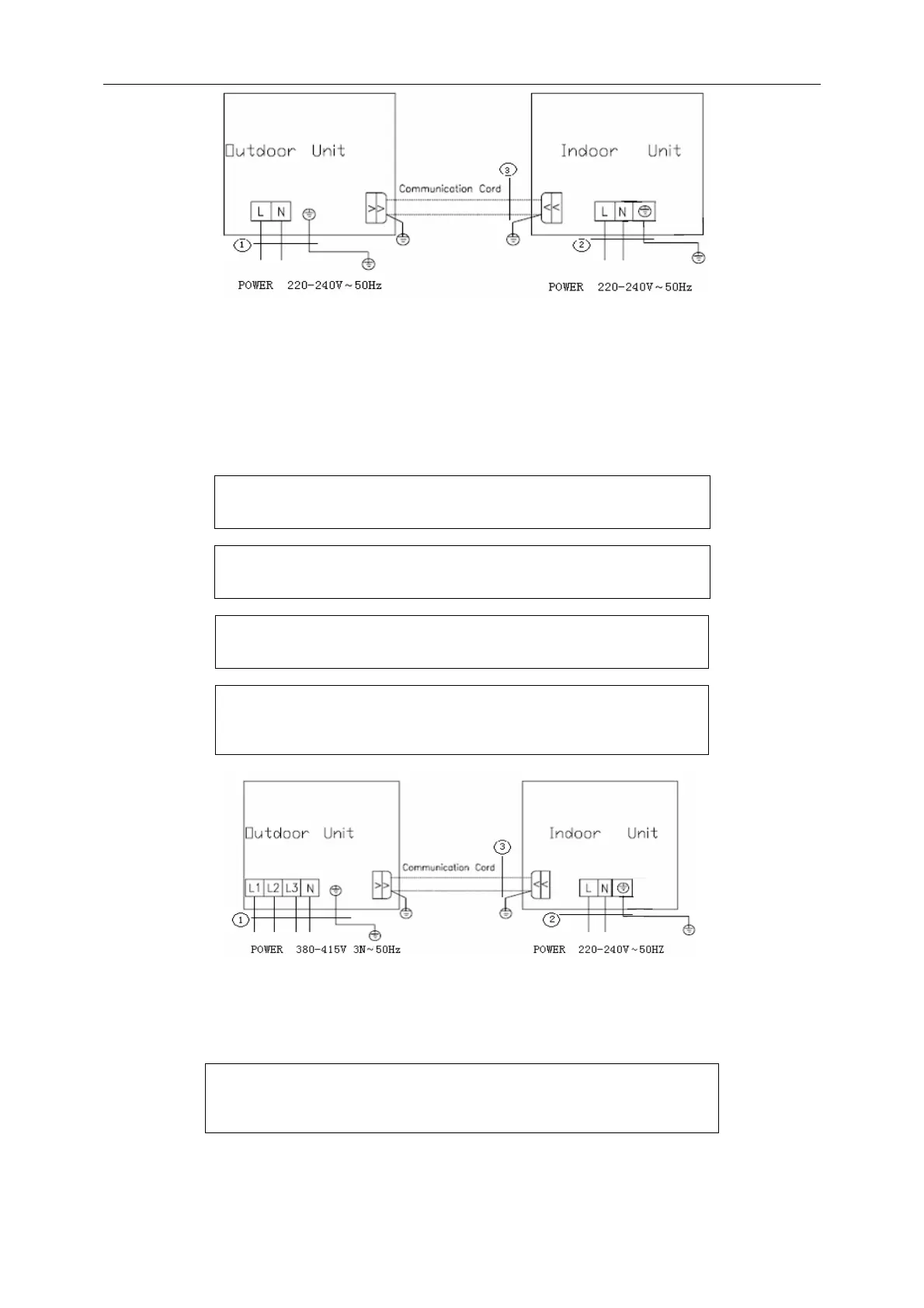

Fig.54
GUHD09NK3CO + GTH09K3CI
GUHD12NK3CO + GTH12K3CI
GUHD18NK3CO + GTH18K3CI
GUHD24NK3CO + GTH24K3CI
GUHD30NK3CO + GTH30K3CI
GUHD36NK3CO + GTH36K3CI
GUHD42NK3CO + GTH42K3CI
GUHD48NK3CO + GTH48K3CI
GUHD09NK3CO + GTH09K3CI GUHD12NK3CO + GTH12K3CI
①Power cord 3×2.5 mm
2
(H07RN-F) ②Power cord 3×1.0 mm
2
(H05VV-F)
③Communication Cords
GUHD18NK3CO + GTH18K3CI
①Power cord 3×4 mm
2
(H07RN-F) ②Power cord 3×1.0 mm
2
(H05VV-F)
③Communication Cords
GUHD24NK3CO + GTH24K3CI
①Power cord 3×4 mm
2
(H07RN-F) ②Power cord 3×1.5 mm
2
(H05VV-F)
③Communication Cords
GUHD30NK3CO + GTH30K3CI GUHD36NK3CO + GTH36K3CI
GUHD42NK3CO + GTH42K3CI GUHD48NK3CO + GTH48K3CI
①Power cord 3×6 mm
2
(H07RN-F) ②Power cord 3×1.5 mm
2
(H05VV-F)
③Communication Cords
Fig.55
GUHD36NM3CO+ GTH36K3CI
GUHD42NM3CO+ GTH42K3CI
GUHD48NM3CO+ GTH48K3CI
GUHD60NM3CO+ GTH60K3CI
GUHD36NM3CO+ GTH36K3CI GUHD42NM3CO+ GTH42K3CI
GUHD48NM3CO+ GTH48K3CI GUHD60NM3CO+ GTH60K3CI
①Power cord 5×6 mm
2
(H07RN-F) ②Power cord 3×1.5 mm
2
(H05VV-F)
③Communication Cords
