GREE Duct type Ducted Type Split Air-Conditioner Units

65

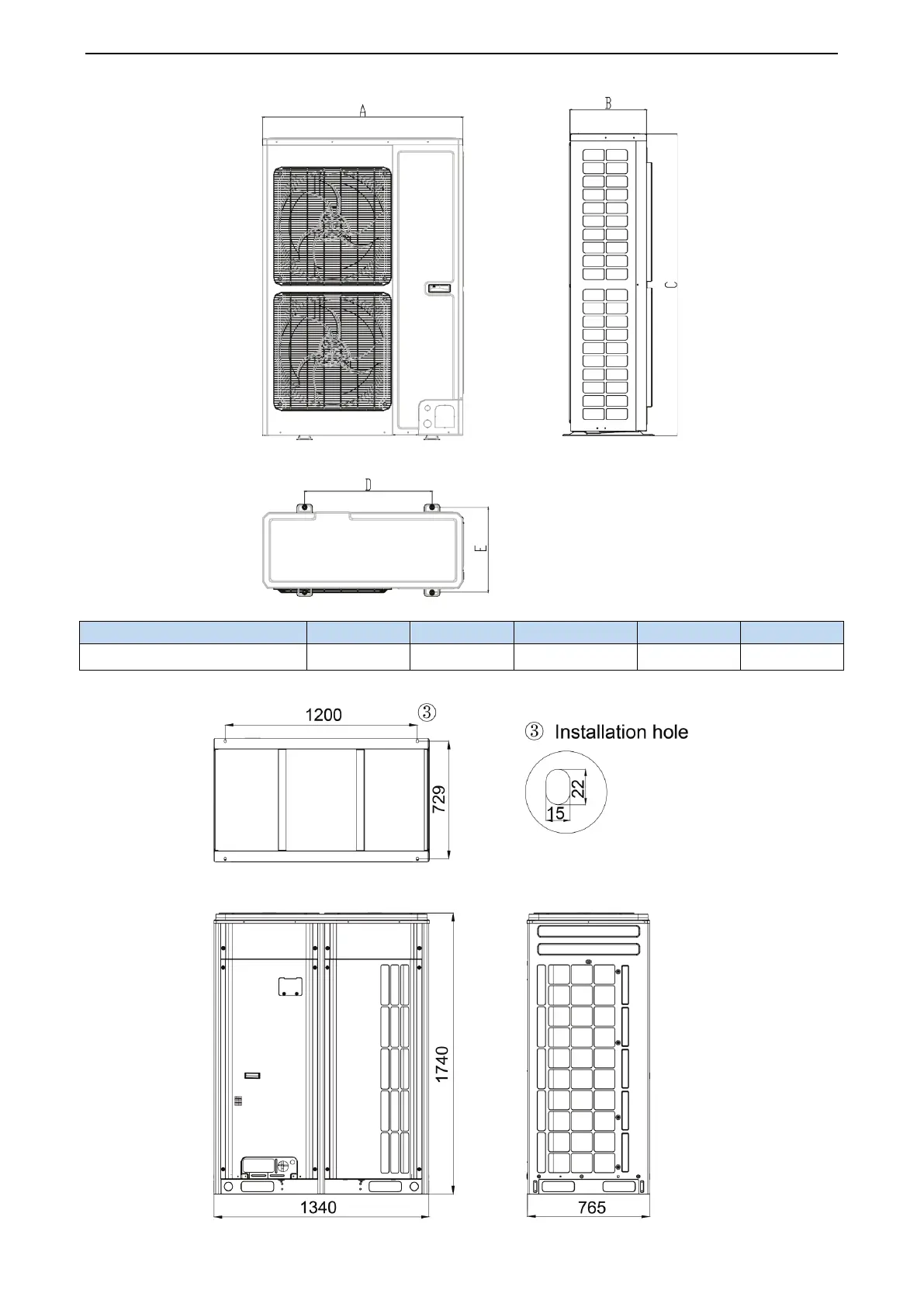

Unit: mm

Model

A

B

C

D

E

UMLD400W/A-M(P) 940 460 1615 610 486
