Gree VERSATI III Series - Page 28

Air-to-water Heat Pump Split Versati
24
SPLIT TYPE

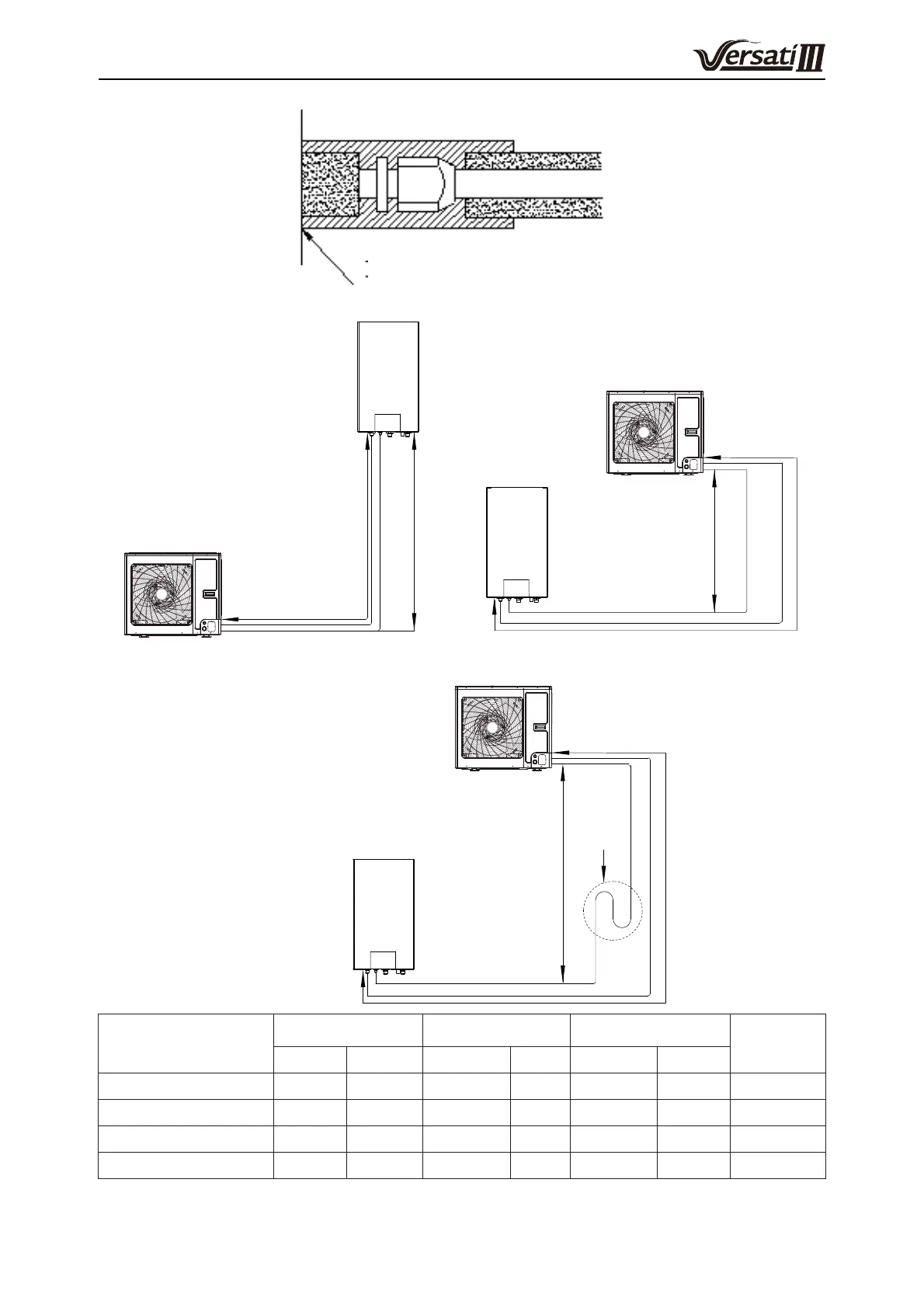

No clearance
Outdoor unit
Indoor unit
B
B
B
Indoor unit
Outdoor unit
Outdoor unit
A
A
A
Indoor unit
Oil bend
Model
Pipe size
"#$%'
Length B Elevation A
Additional
refrigerant
gas Liquid Standard Max. Standard Max.
GRS-CQ4.0Pd/NhH-E 1/2" 1/4" 5m 20m 0m 15m 16g/m
GRS-CQ6.0Pd/NhH-E 1/2" 1/4" 5m 20m 0m 15m 16g/m
GRS-CQ8.0Pd/NhH-E 1/2" 1/4" 5m 25m 0m 15m 16g/m
GRS-CQ10Pd/NhH-E 1/2" 1/4" 5m 25m 0m 15m 16g/m
Notes
(a) No additional charge of the refrigerant is need when the pipe length is less than 10m, if the pipe length is
