92
Installation and Maintenance
Service Manual

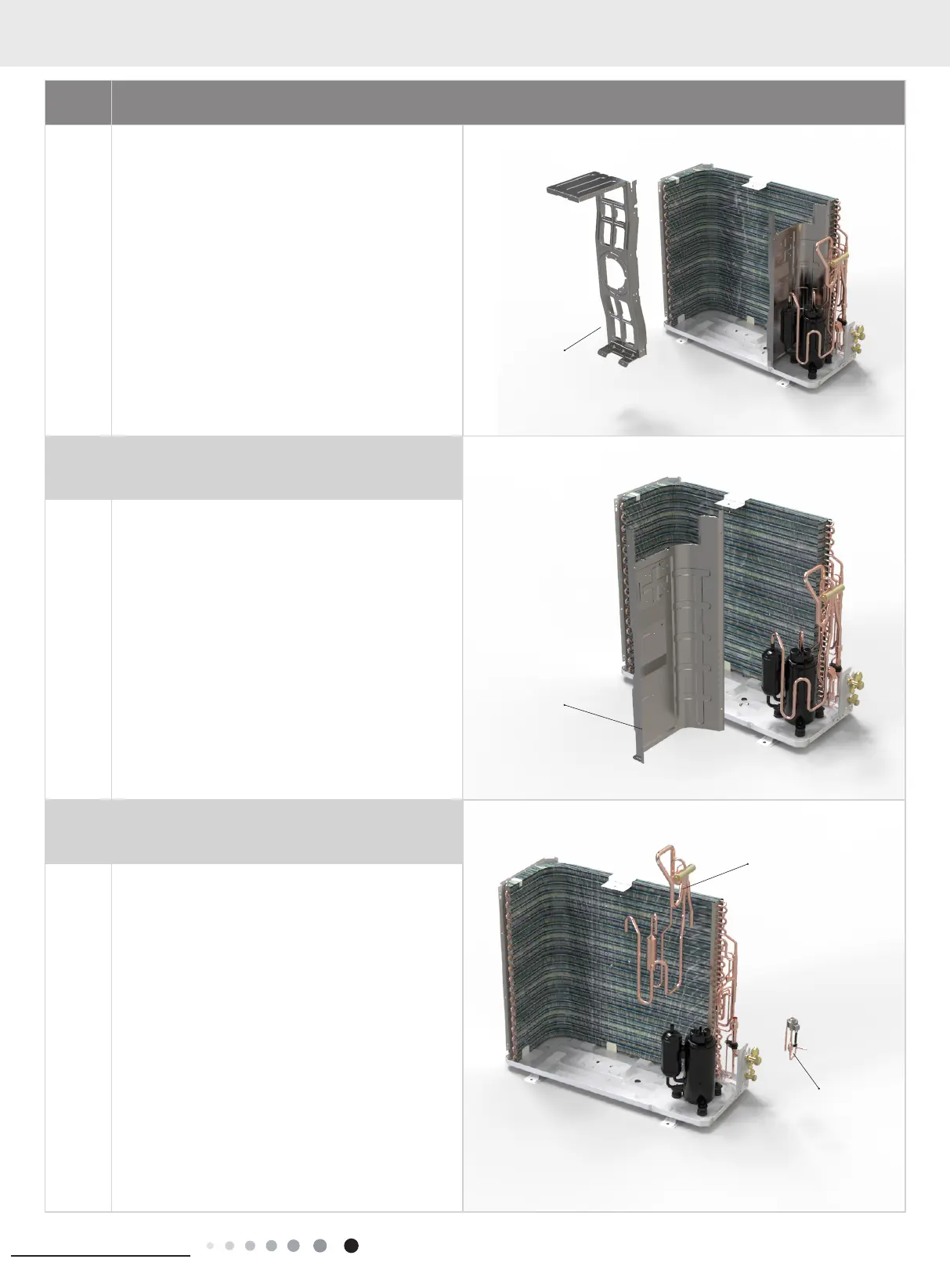

Step Procedure
b
Twist off the tapping screws xing the motor support,
pull it upwards and then remove the motor support.
9.Remove isolation sheet
Twist off the screws connecting isolation sheet and
end plate of condenser and chassis, and then remove
the isolation sheet.
10.Remove 4-way valve
Unsolder the pipe line between compressor,
condenser, gas and liquid valve, and then remove the
4-way valve. (note: release all refrigerant before
unsoldering).
motor support
isolation sheet
4-way valve
Capillary Sub-assy
11. Removal Procedure
To Next Page
