b-1. Open Upper Table Front Ass'y M7-5-210020.

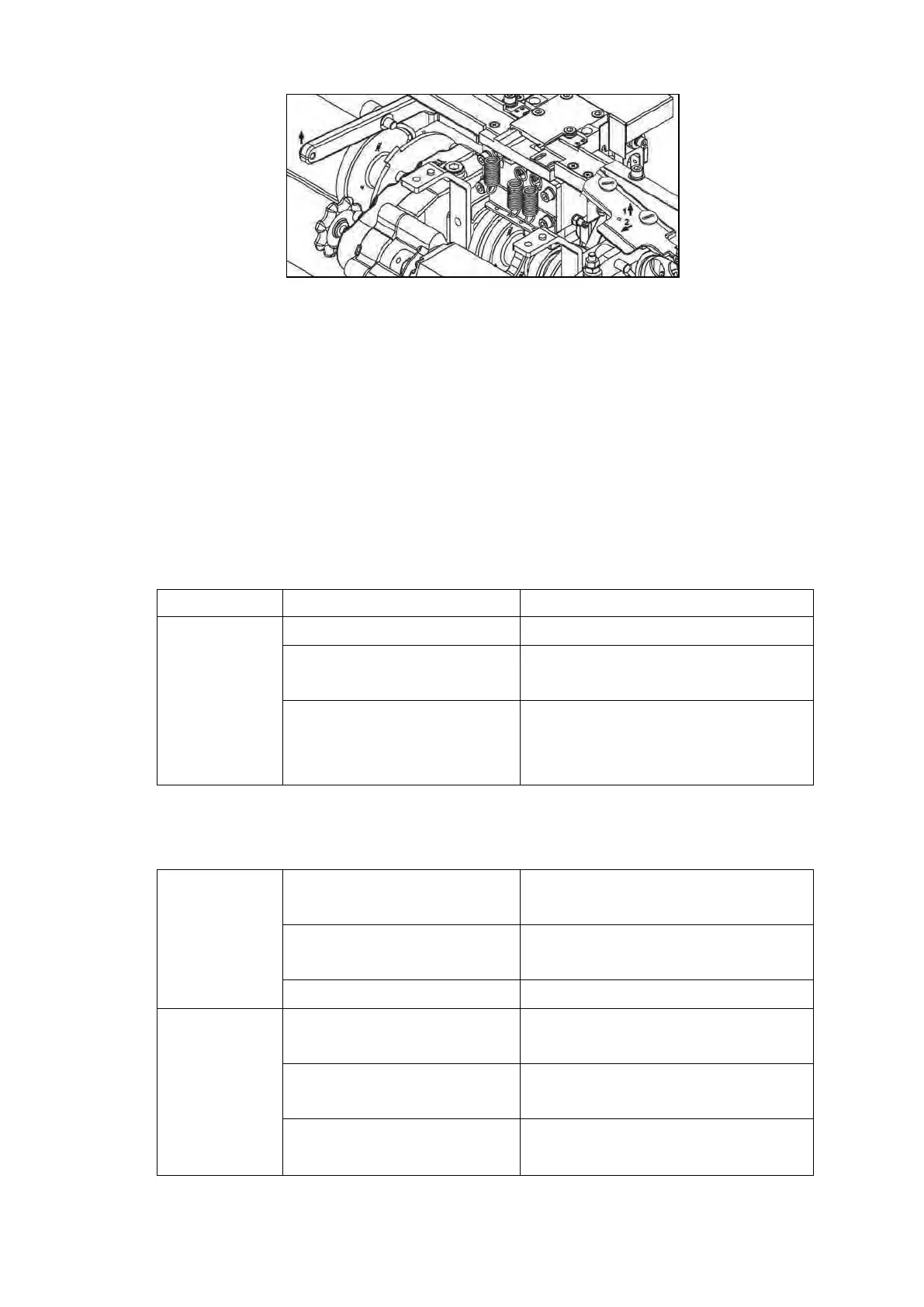

b-2. Lift up the Lever (M7-2-101400/M7-2-101410) with left hand and take
out the Cover (M7-1-311220) for the Upper Guide with right hand at the
same time.
b-3. Take out the jammed strap and cut it.
b-4. Put the cover (M7-1-311220) for the Upper Guide back to its position
and put the Upper Table Front Ass'y back as well. Push START switch
in the control panel to RESTART machine.
If this does not solve the problem, the following causes have to be checked as well:
1. Feed jam
Strap is too curved Change strap
Insufficient feeding pressure
Adjust feeding pressure according to
5.5
Too much strap amount in the
accumulator box and has
caused strap to be curved
Adjust to proper strap amount in the
accumulator box according to 5.1
Other malfunctions
1. Sealing
failure
Too much debris on both sides
Clean both sides of the heater plate by
Insufficient heater temperature
Increase the heater temperature
according to 5.3
Insufficient cooling time Increase cooling time according to 4.3
2. Insufficient
strap tension
Soft-High tension switch is at
“soft” position
Turn it to “high” position
Lubricant drops into tension
Too much debris in the gear of
tension roller
Clean the debris
To Next Page
