Greenheck ERV Series User Manual

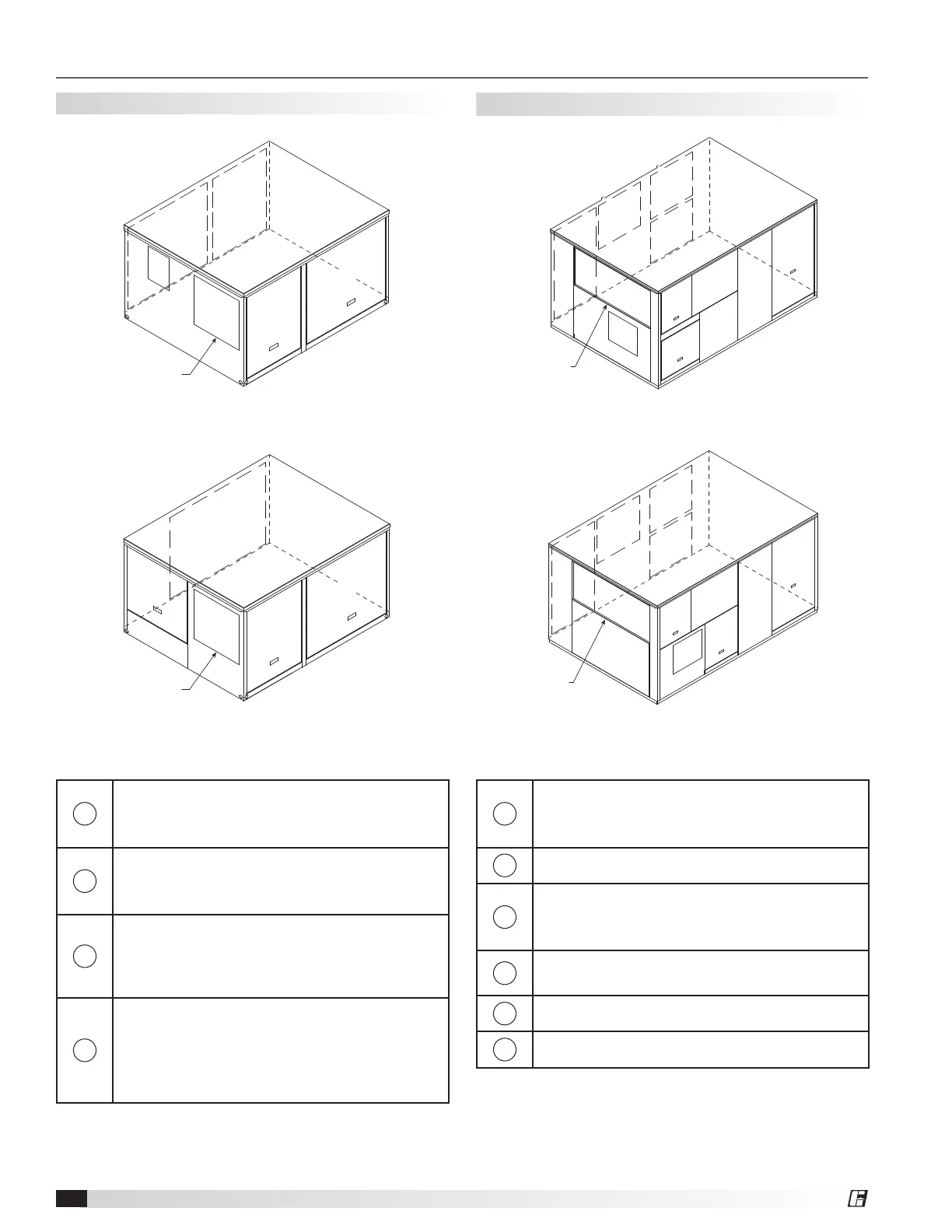

Access Panel Locations
1
Outdoor air intake damper
Preheater and controls
Outdoor air sensors
2
Energy wheel cassette
Supply filters
Supply blower and motor
3
Exhaust blower and motor
Exhaust filters (end exhaust discharge)
Return air intake dampers (end exhaust
discharge)
4
Electrical control center
Main disconnect
Exhaust filters (side exhaust discharge)
Return air intake damper (side exhaust
discharge)
1
Outdoor air intake damper
Preheater and controls
Outdoor air sensors
2
Exhaust blower and motor
3
Energy wheel cassette
Supply filters
Exhaust filters
4
Electrical control center
Main disconnect
5
Supply blower and motor
6
Return air intake damper
OUTDOOR
AIR INTAKE
2
1
4
3
Exhaust Air Discharge End
OUTDOOR
AIR INTAKE
2
1
4
3
Exhaust Air Discharge Side
1
2
3
3
4
5
6
OUTDOOR
AIR INTAKE
Exhaust Air Discharge End
1
2
3
3
4
5
6
OUTDOOR
AIR INTAKE
Exhaust Air Discharge Side
ERV-10, ERV-20 and ERV-45
ERV-90 and ERV-120
Energy Recovery Ventilator8
®

Greenheck ERV Series Specifications

General

Category	Energy Recovery Ventilator (ERV)
Cabinet Construction	Galvanized Steel with Optional Insulation
Voltage Options	115V, 208V, 230V, 460V
Power Supply	Single or Three Phase
Certifications	AHRI
Filters	MERV
