Greenheck RV User Manual

5
Packaged Rooftop Ventilator
Installation
Supply Air
Discharge
Control
Center
Recirc
Damper
Indirect Gas
Heater
Outdoor Air
Damper
Supply
Blower
Compressors
Return Air Intake
Outdoor Air
Weatherhood
Supply Filters
DX Coil
LA
W
J
H

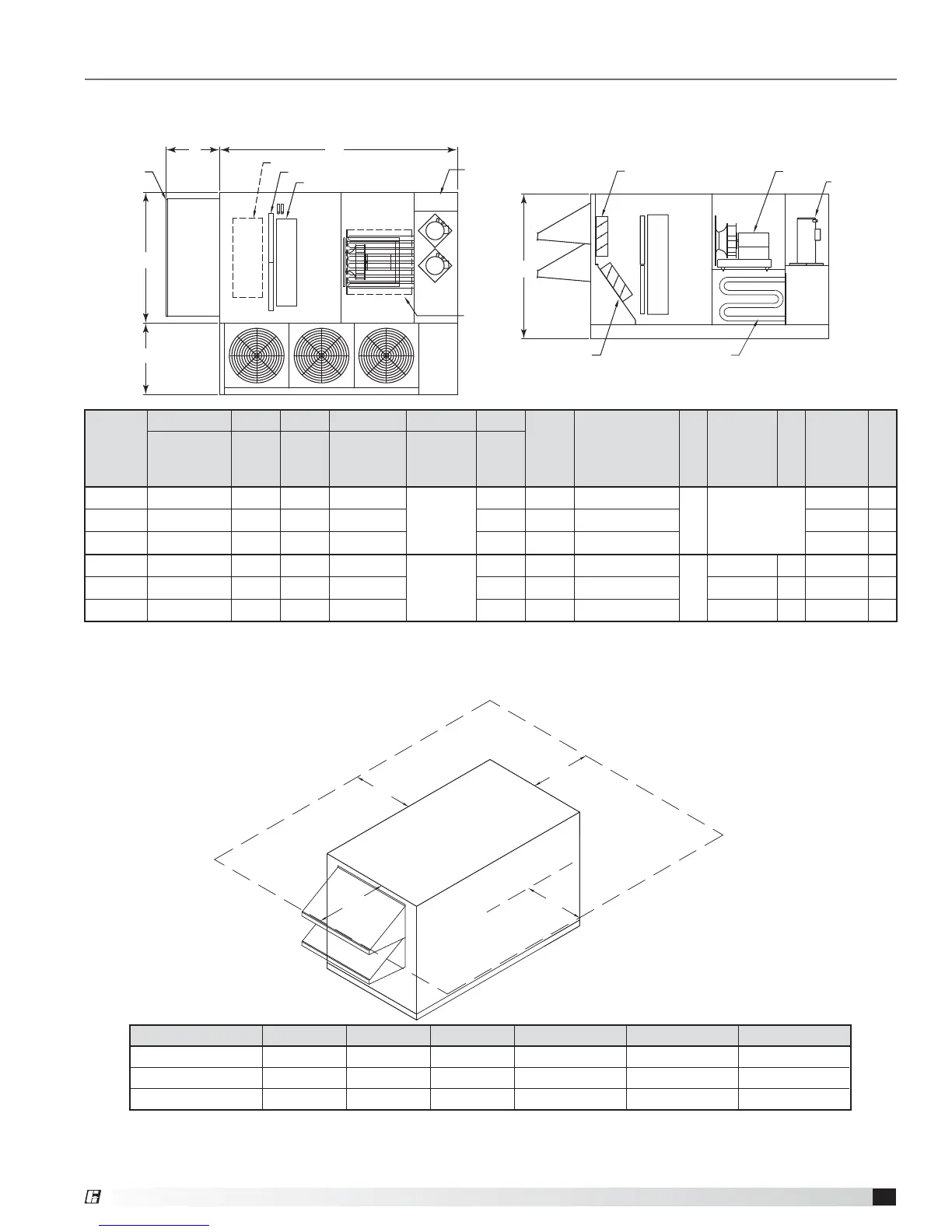

PLAN VIEW ELEVATION
Service Clearances
Clearance
ACS
CC End
Clearance
NA
OA End
Unit
Size
A L W J J H
Unit
Weight
Outdoor Air
Weatherhood
(Aluminum Mesh)
Qty
Pre-Wheel
Outdoor/
Exhaust
Filters*
Qty
Supply
Final
Filters
(Pre-coil)
Qty
Outdoor
Air
Weatherhood
Length Width
Condensing
Section
Optional
Piping
Vestibule
Height
RV-35 21.5 95.6 52.5 28.8
26.0
58.2 2,600 20x20x2
4NA
20x20x2 4
RV-50 21.5 108.8 64.0 32.0 70.5 3,600 20x25x2 20x25x2 6
RV-80 26.5 117.0 68.0 30.0 82.0 4,500 25x25x2 20x25x2 6
RVE-35 21.5 147.5 52.5 28.8
26.0
58.2 3,000 20x20x2
4
20x25x2 2 20x20x2 4
RVE-50 21.5 163.1 64.0 32.0 70.5 4,100 20x25x2 20x25x2 3 20x25x2 6
RVE-80 26.5 178.3 68.0 30.0 82.0 5,100 25x25x2 16x20x2 7 20x25x2 6
All dimensions are shown in inches. Weight shown in pounds. *Size and quantity is per airstream.
Note: If RV unit is ordered with optional exhaust (relief) fan, corresponding RVE dimensions will apply, excluding pre-wheel
outdoor/exhaust filters.
Unit Size ACS CC End OA End *NA from Unit *NA from CS *NA from Vest
RV-35/RVE-35 36 36 42 24 42 30
RV-50/RVE-50 36 36 42 24 42 30
RV-80/RVE-80 36 36 52 24 42 30
All dimensions are shown in inches.
*NA from Unit = no condensing section or piping vestibule
*NA from CS = condensing section
*NA from Vest = piping vestibule
ACS = Access
CC = Control Center
NA = Non-Access
OA = Outdoor Air Weatherhood
Typical Unit Weights and Dimensions
®
