Greenheck SBE-3 User Manual

14

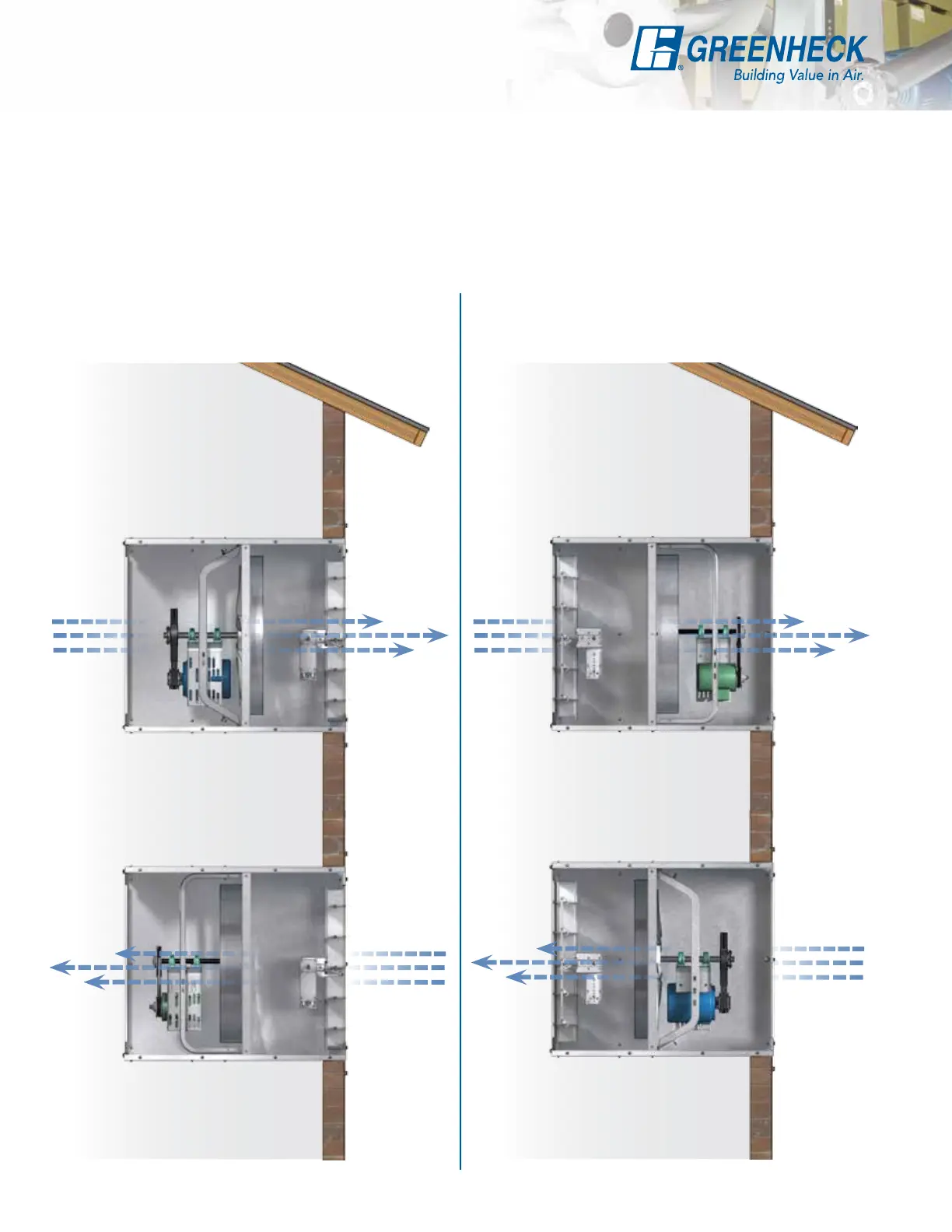

Mounting Options
Flush Exterior
Inside of Building
- Damper Outside
Outside of Building
- Damper Inside
Exhaust - Flush Exterior
Supply - Flush Exterior
Exhaust - Flush Exterior
Supply - Flush Exterior
Motor and Drive Accessed from -
MOTOR ACCESS
BUILDING INTERIOR
MOTOR
ACCESS
BUILDING
EXTERIOR
MOTOR
ACCESS
BUILDING
EXTERIOR
MOTOR ACCESS
BUILDING INTERIOR
Sidewall propeller housings can be oriented in eight
horizontal and eight vertical configurations. The two
main considerations for determining which orientation
the project requires are:
1. Will the fan and housing be placed inside the building
or outside of the building?
2. How will the motor and drives be most easily
accessed, from inside of the building or from outside
of the building?
Wall housing or wall collar should be tipped
slightly to the outside for water drainage.
