15

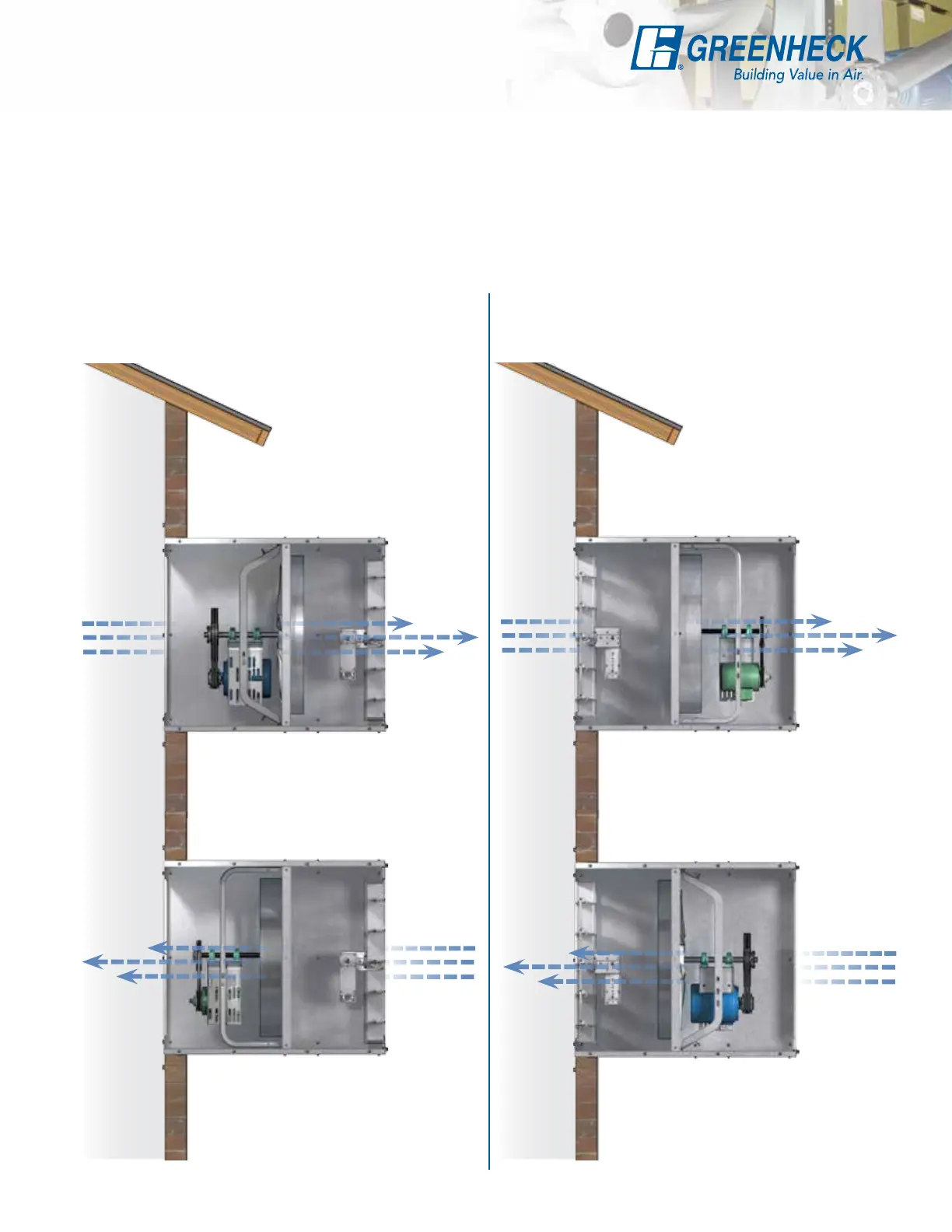

Mounting Options
Flush Interior
Inside of Building
- Damper Outside
Outside of Building
- Damper Inside
Exhaust - Flush Interior
Supply - Flush Interior
Exhaust - Flush Interior
Supply - Flush Interior
Motor and Drive Accessed from -
MOTOR ACCESS
BUILDING EXTERIOR
MOTOR ACCESS
BUILDING EXTERIOR
MOTOR
ACCESS
BUILDING
INTERIOR
MOTOR
ACCESS
BUILDING
INTERIOR
Flush Interior: The fan and housing will be outside the
building and the end of the housing will be flush with the
interior wall.
Flush Exterior: The fan and housing will be inside the
building and the end of the housing will be flush with the
exterior wall.
Motor Access: The motor and drives can be placed
on either side of the propeller for access to grease
bearings, check or change belts and inspect the motor/
wiring connections. Failure to assess the best access
point can place maintenance personnel in extreme
danger if they must reach through the propeller.
Wall housing or wall collar should be tipped
slightly to the outside for water drainage.
