GreenWorks 25322 - Exploded View

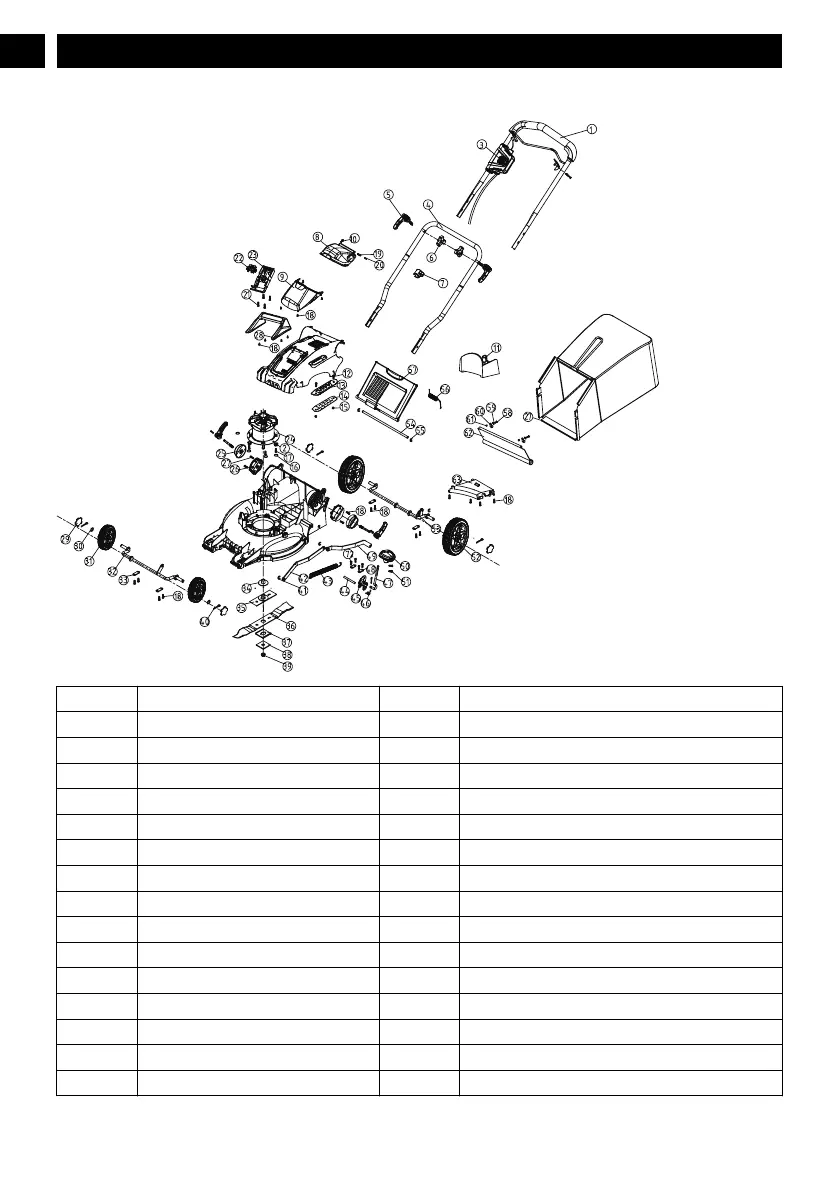

12 EXPLODED VIEW
No. Part No. Qty Description
1 31104488B 1 Upper handle assembly
2 3220537 3 Lock nut M6
3 311021163-4A 1 Motor engagement box
4 33309470A 1 Lower handle
5 31102467-2 2 Cam lock assy.
6 34106467-1 2 Handle knob
7 3411135 1 Cord guide
8 34103488 1 Battery housing
9 34102488 1 Battery door
10 33905470 1 Spring
11 31104975 1 Mulch plug
12 32201110 2 Screw
13 333012470 1 Height adjustment plate
14 34202470 1 Dust plate
15 32204100 2 Nut M5
