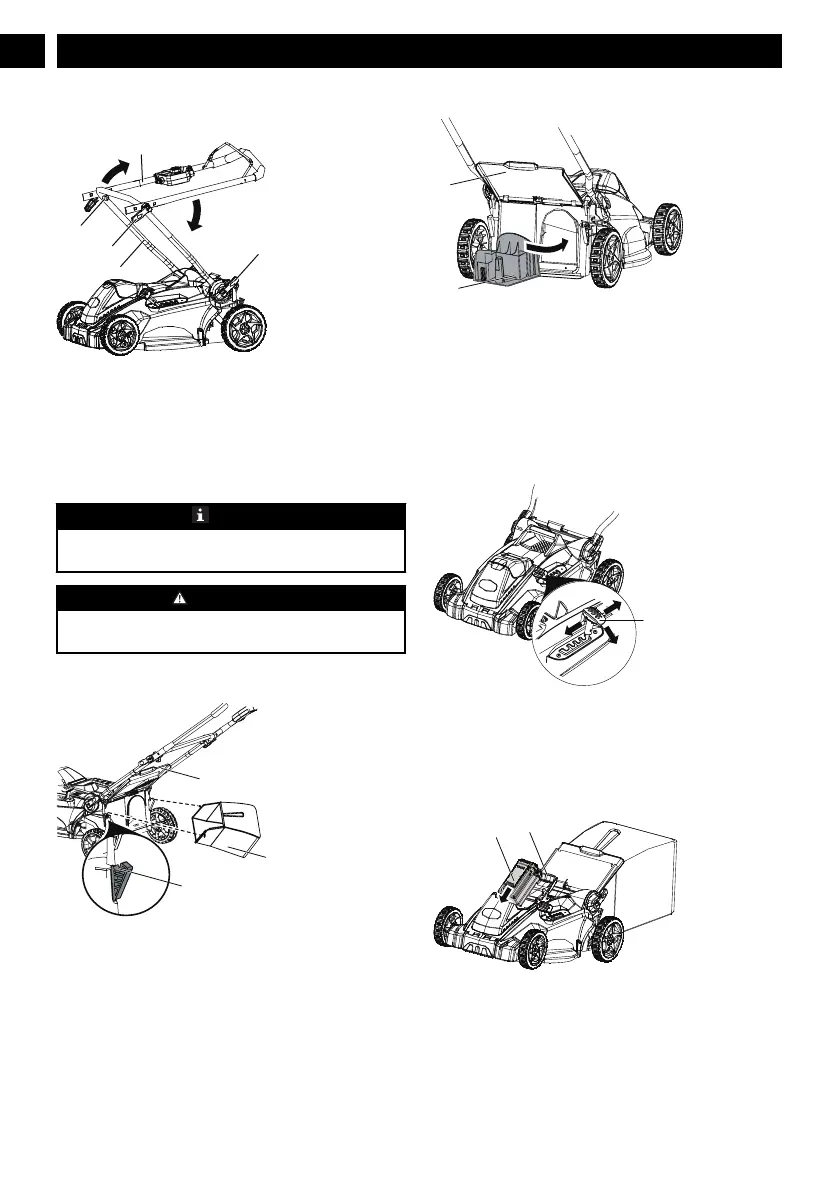

GreenWorks 25322 - Install the Battery Pack; Set the Blade Height; Install the Mulch Plug; Install the Grass Catcher

6.2 UNFOLD AND ADJUST THE
HANDLE
4
5
5
3
2
1. Pull up and back the upper handle to lift the handle
into operation position. Make sure that the handles
click into position correctly.
2. Tighten the upper handle with the cam locks on both
sides.
3. Tighten the lower handle with the cam locks on both
sides.
NOTE
Make sure that the two handles are in the same
position.
WARNING
Do not make damage to the cables when you fold or
unfold the handle.
6.3 INSTALL THE GRASS CATCHER
10
12
11
1. Remove the mulch plug.
2. Open the rear discharge door and hold it.
3. Hold the the grass catcher by its handle and engage
the hooks on the slots.
4. Close the rear discharge door.
6.4 INSTALL THE MULCH PLUG
10
9
1. Remove the grass catcher.
2. Open the rear discharge door and hold it.
3. Hold the mulch plug by its handle and fit it in the
discharge chute.
4. Close the rear discharge door.
6.5 SET THE BLADE HEIGHT
The machine can be set to different blade heights.
1
3
2
4
5
6
1. Pull the height adjustment lever rearward to
increase the blade height.
2. Pull the height adjustment lever forward to decrease
the blade height.
6.6 INSTALL THE BATTERY PACK
7
8
8
