21
W450320A 08/12
Operator Programmable Alarms
Accessing the Operator Alarms
1. Press the configuration button to access the operator alarms from the main working screen.

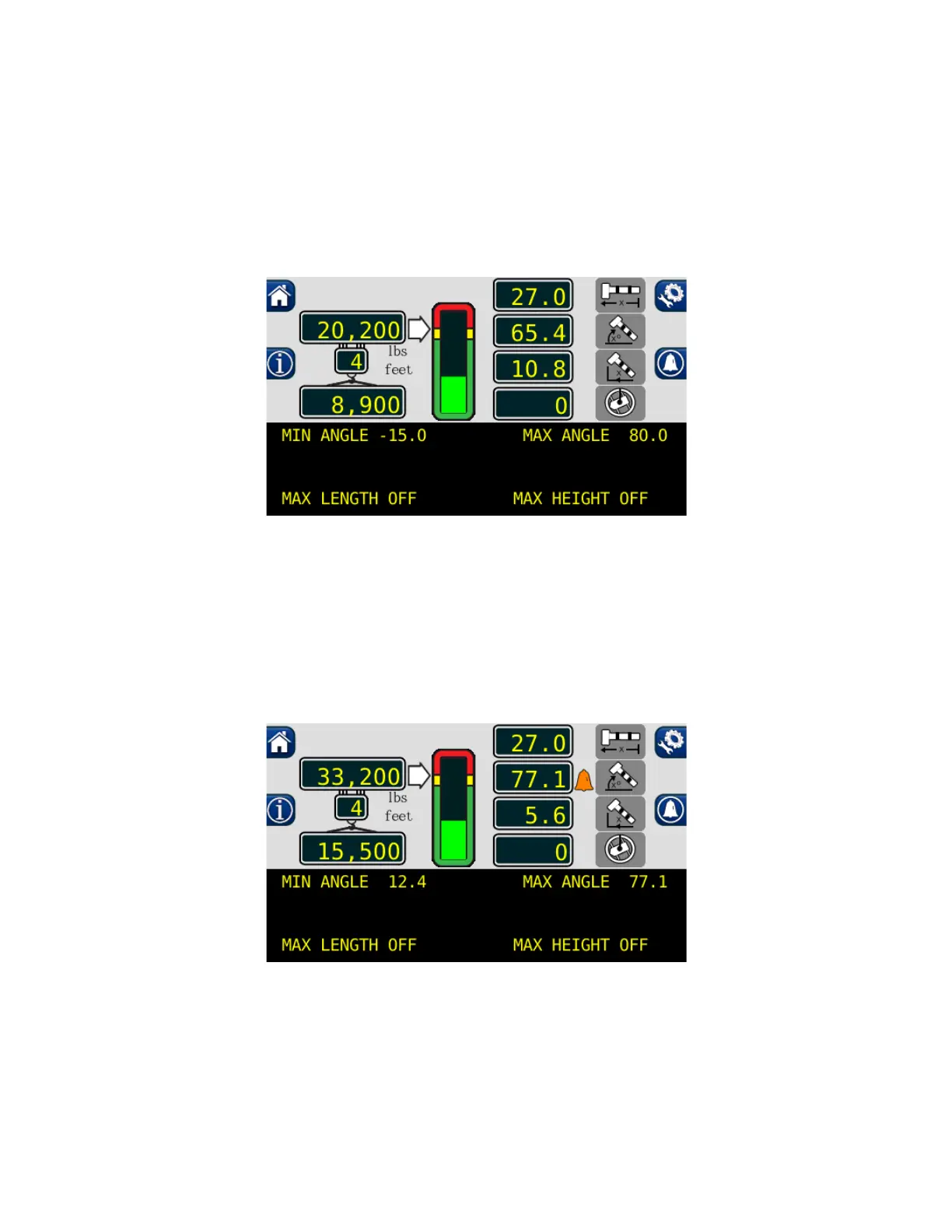

2. Then press the operator alarm button. The information screen will show the current status of the
operator alarms. The system has default settings for minimum and maximum boom angle;
negative 15° for minimum boom angle and 80° for maximum boom angle.
Each button corresponds to the displayed alarm. These buttons operate as a toggle switch. If the alarm
to be set is OFF, pressing the button will turn the alarm ON. If the alarm to be set is ON, pressing the
button will turn the alarm OFF.
NOTE: Press the operator alarm button in order to cycle through the various user programmable alarms.
Press the home button to return to the main screen. Exit at any time.
When operator alarms are set, the orange alarm will appear. An example below:
