Fast Deposit Module CA10 User Manual
Confidential material of GRG, No disclosure to unauthorized Party 32 / 35
detailed operations as follows:

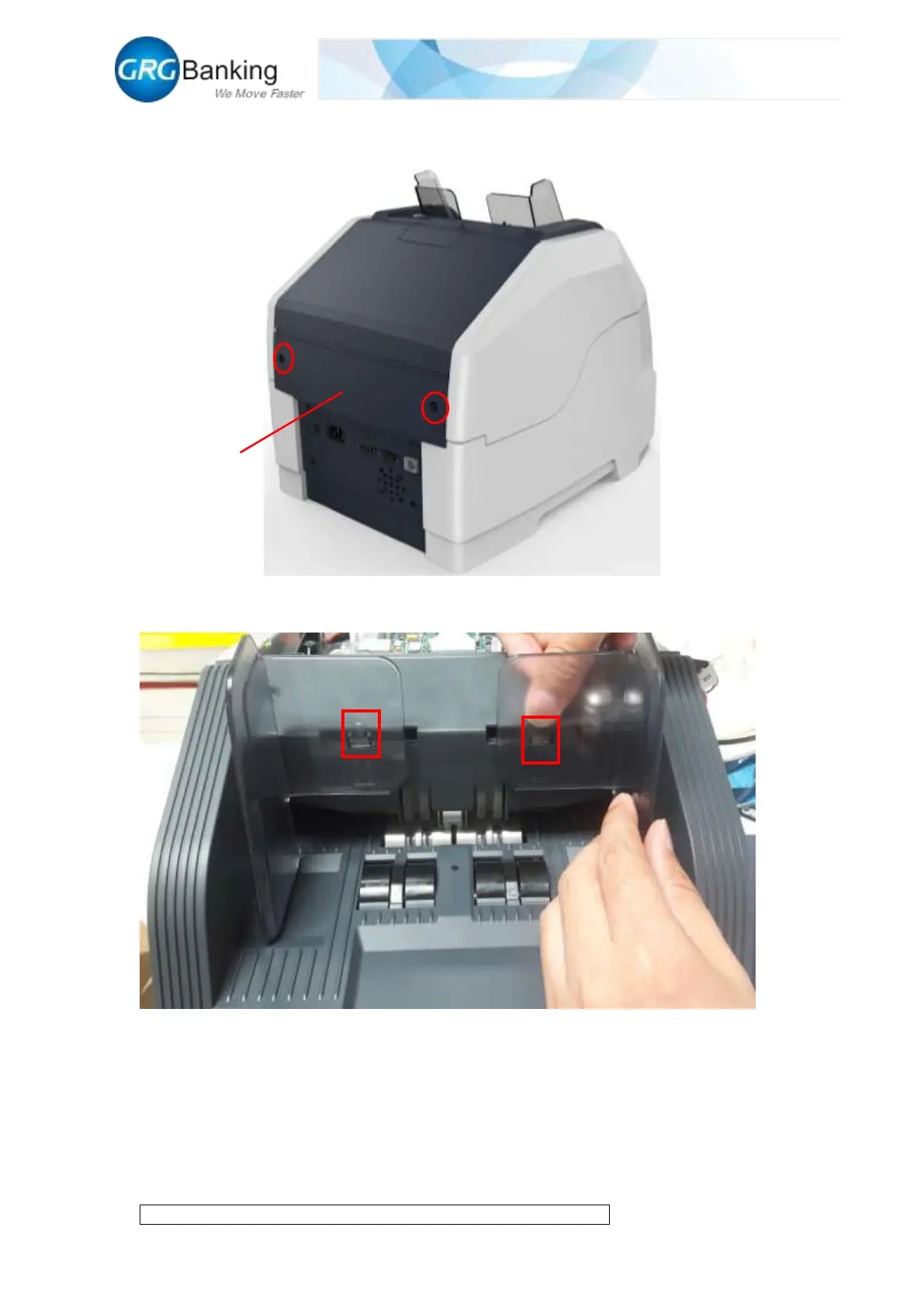

1) Remove the 2 fixing screws on the back cover plate as well as the back cover plate;
2) As shown in the following figure, press the buckle with one hand and pull out the baffle with
another hand to remove the left and right baffles;
3) Place 10 calibration notes or more with a special thickness of 110 μm in the input slot neatly,
click TIDH and after the calibration notes are fed in, check whether the thickness K value
displayed in the Message area is within 30-50;
