Fast Deposit Module CA10 User Manual
Confidential material of GRG, No disclosure to unauthorized Party 33 / 35

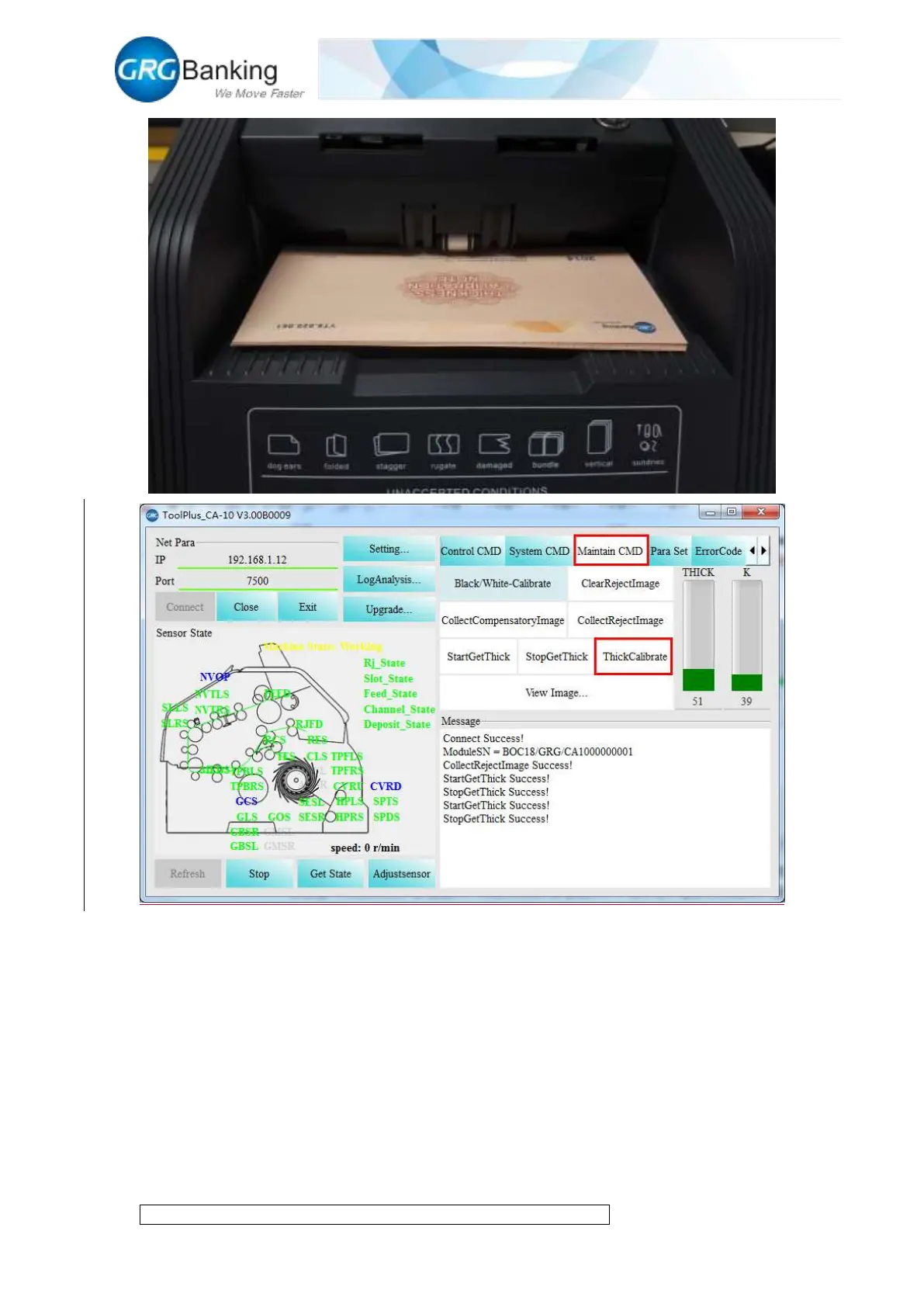

4) If the thickness K value is not in this range, unscrew the M3 combination screws shown in
the following figure with a screwdriver, slight adjust the thickness base position around and
tighten the screws again. Repeat the step 3) until the thickness K value is in the range of
30-50, and repeat the step 3) twice to achieve a successful thickness calibration in which the
fluctuation difference of the three thickness K values is less than 5.
