2.9 Ethernet Interface
2.9.1 LEDs

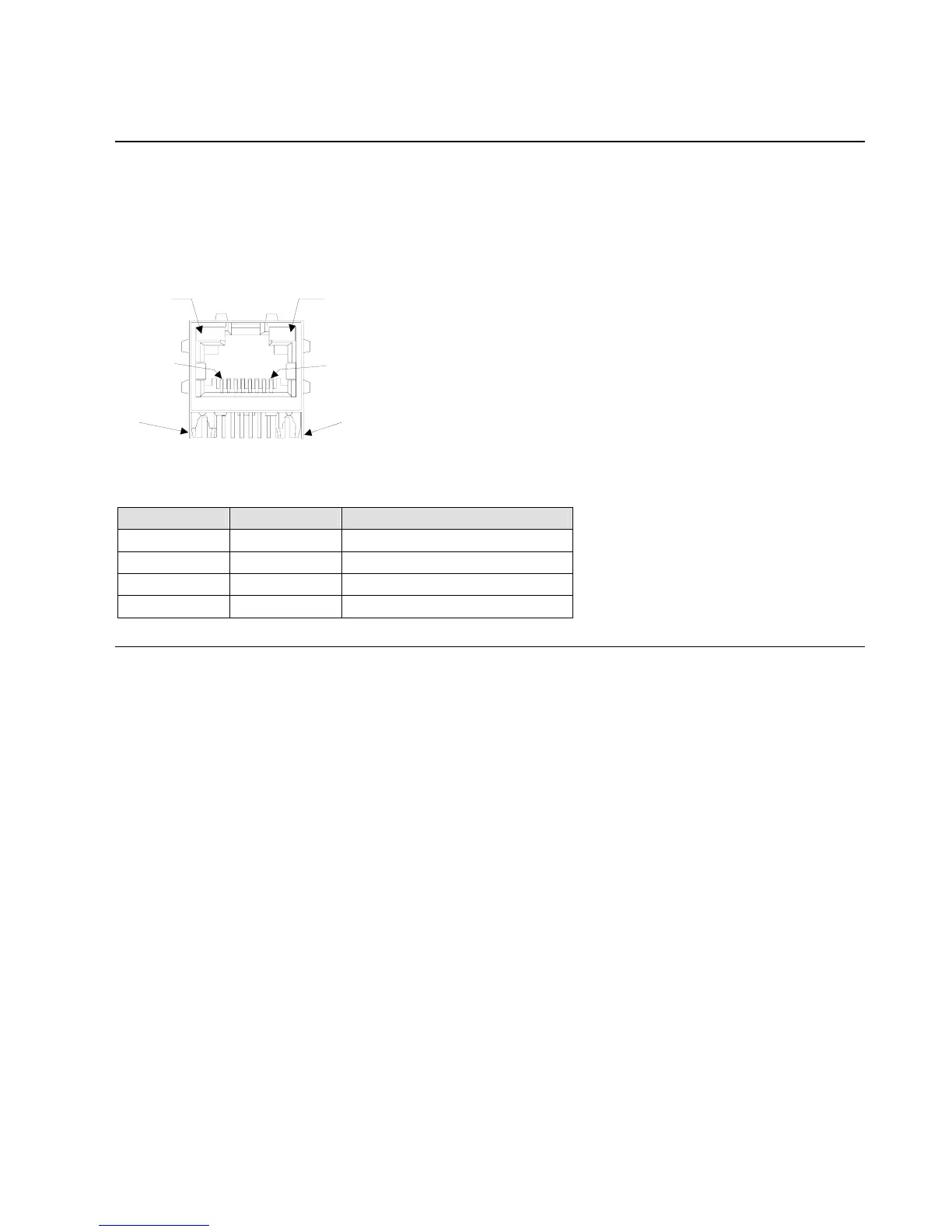

The device contains the following LEDs:
• 10BaseT/100BaseTX (Bi-color, Left LED)
• Full/Half Duplex (Bi-color, Right LED)
CONTACT 1
CONTACT 8
LEFT
LED
RIGHT
LED
SHIELD TABSHIELD TAB
Table 3 - NET232 LED Functions
Left LED Right LED Meaning
Solid Amber 10BASE-T
Solid Green 100BASE-Tx
Blinking Amber Half Duplex Activity
Blinking Green Full Duplex Activity
2.10 Product CD
The product CD sent with the NET232/USB contains Device Installer software, USB Device Drivers,
Application Notes, firmware, user guides and technical documents.
The CD contains Virtual COM Port Drivers for the NETUSB device.
NET232/NETUSB User Guide 2-7
