Overview
NET485 User Guide 1-3

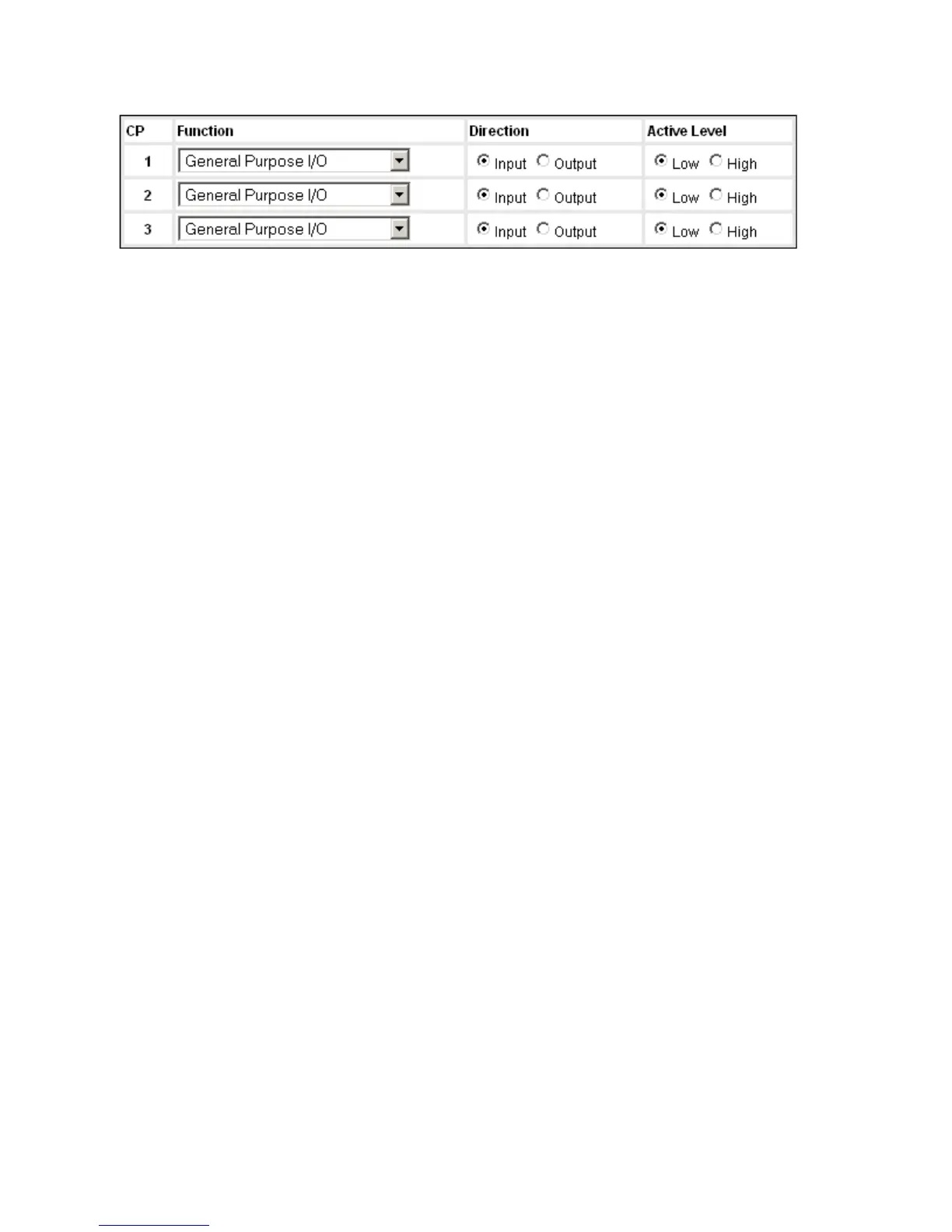

This version of the configurable pins window shows CP1-3. Web Manager 2.0.0.2.
The NET485 uses Configurable Pin 1 (CP1) for the transmit enable. You must enable CP1 for
RS485_TXEN during the configuration process. (See the Quick Start Guide for details)
The NET485 uses CP1 in the Active High condition. You must set CP1 to Active High during the
configuration process. (See the Quick Start Guide for details)
