Grifco DRIVE User Manual

7

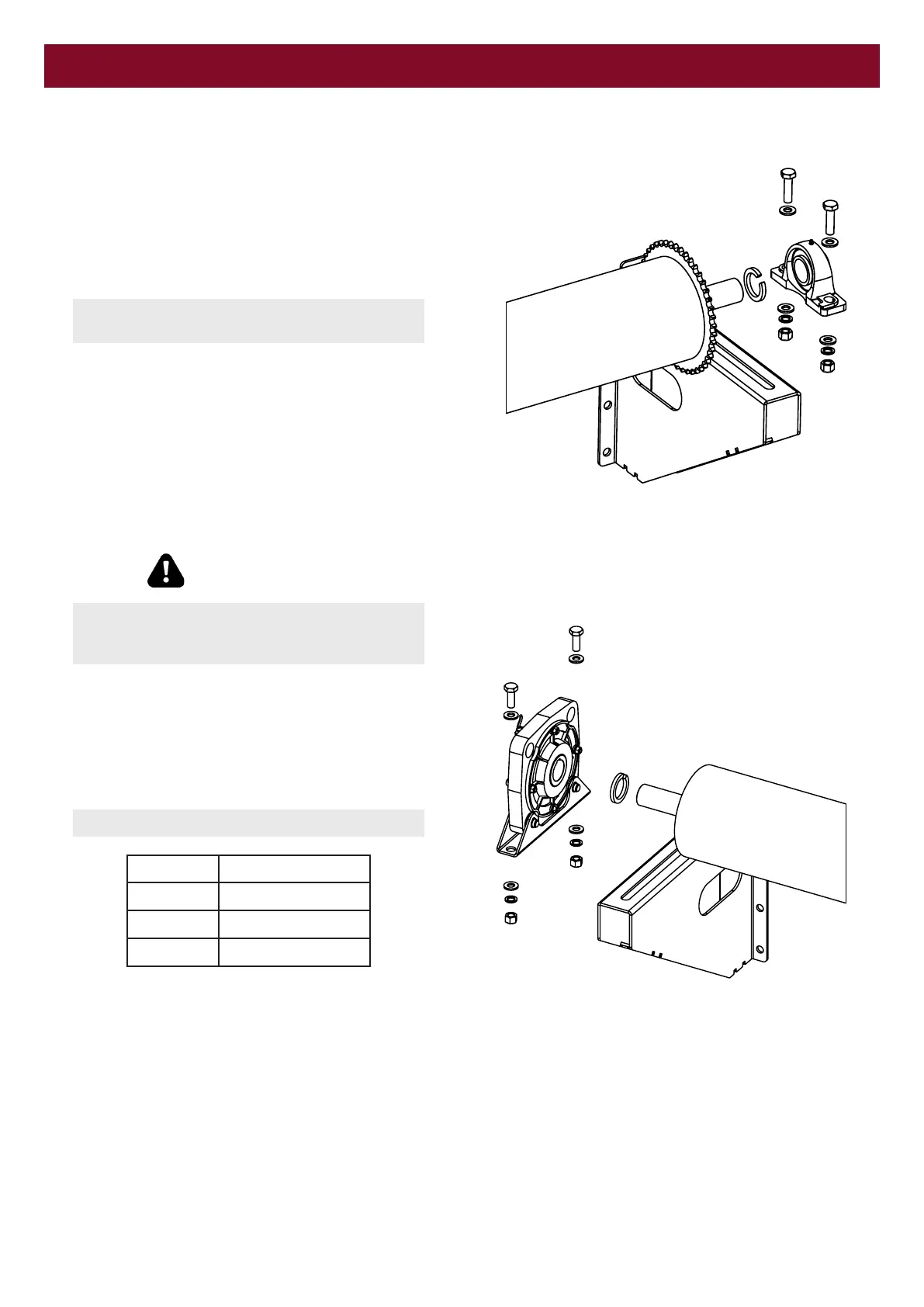

INSTALLATION
• Slide the retaining ring over the drum shaft.
• Slide the Bearing onto the shaft.
• Mount the bearing onto the mount bracket.
Weld the retaining ring into position to prevent axial float
NOTE: Bearing to have correct orientation as shown.
(bearing collar to be inside)
WARNING
Mechanical
A SAFETY BRAKE MUST BE INSTALLED TO
PREVENT DOOR FROM FALLING IN THE EVENT
OF A MECHANICAL MALFUNCTION
• Insert the brake shaft key into the drum shaft.
• Slide the retaining ring over the drum shaft
• Slide the safety brake onto the drum shaft.
• Mount the safety brake onto the mount bracket
• Weld the retaining ring into position to prevent axial float
NOTE: BOLT TORQUE VALUES
Bolt Size Tightening Torque
M12 50 Nm
M16 70 Nm
M20 110 Nm
BRAKE BEARING

Grifco DRIVE Specifications

General

Manufacturer	Grifco
Category	Door Opening System
Model	DRIVE
Voltage	230V AC
Operating Temperature	-20°C to +50°C
Opening Speed	0.3m/s
Closing Speed	0.3m/s
