Grizzly DEEP DIGGER - Page 38

38
Specications are subject to change without prior notication From serial number 7027
POS QTY PART NO DESCRIPTION
1 2 BDGAA001 GE50 RADIAL SPHERICAL PLAIN
2 2 BZGCA002 HOUSING 2 BOLT SB TYPE
3 2 BZJEA056 BEARING 1-1/2" Eccentric Locking Collar -
Wide Series
4 1 CABSE132 DEPTH GAUGE
5
2 CDEUU000 BEARING HOUSING - 3 BOLT
6 4 FABEA025 BOLT M 8 X 25
7 2
FABGA065 BOLT M12 X 65 PC 8.8
8 4 FABGA120 BOLT M12 X 120 PC 10.9
9 6 FABJA080 BOLT M20 X 80 pc 8.8 COARSE
10 4 FFBEA000
NYLOC NUT M8 P TYPE
11 6 FFBGA000 NYLOC NUT M12 P TYPE
POS QTY PART NO DESCRIPTION
12 6 FFBJA000 NYLOC NUT M20 P TYPE 2.5
13 2 FKDWA003 INTERNAL CIRCLIP 75
14 2 FMAUKP02 FLAT WASHER 30mm / 1 1/4" HD 33X55X4
15 4 FMCEE000 M8 WASHER 5/16"F436 HARD ZYP
16 4 FMCGE000 M12 WASHER 1/2" type 1HARD ZYP
17 1 GNBEN005 DEPTH GAUGE POINTER
18 1 GNBRM00435 ROLLER DRUM 7 TYNE DEEP DIGGER 3.5M
19 1
GNBRM353 ROLLER BRKT. 7 TYNE DEEP DIGGER
20 2 PD000GR10 GREASE EVERY 10 HRS DECAL
21 2 PD000GR40 GREASE EVERY 40 HRS DECAL

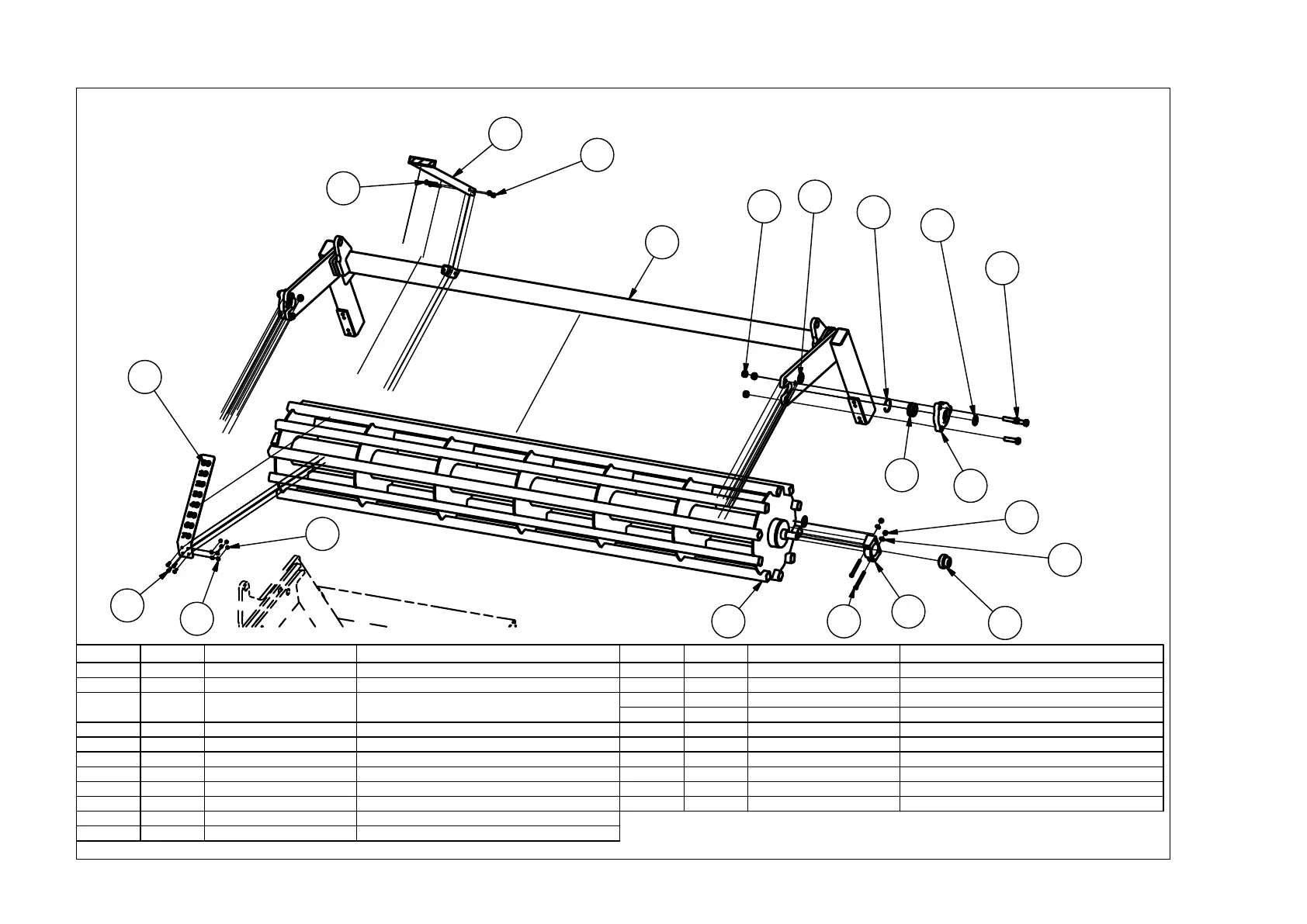

ROLLER - 7 TYNE DEEP DIGGER UNDER
3.5M TRANSPORT
L:\Inventor\Parts\GD-\GDNRJ007H35.idw
GDNRJ007H35
19
9
14
5
1
3
2
11
16
818
13
12
21
4
6
10
15
11
7
17
