Grizzly DEEP DIGGER - Page 37

37
Specications are subject to change without prior notication December 2019
DESCRIPTIONPART NOQTYPOS
GE50 RADIAL SPHERICAL PLAINBDGAA00121
HOUSING 2 BOLT SB TYPEBZGCA00222
Ball Bearing 1 1/2"BZJEA05623
PLATE 50mm BEARING HOUSINGCDEUU00024
BOLT M12 X 35FABGA03545
BOLT M12 X 65 PC 8.8FABGA06526
BOLT M12 X 120 PC 10.9FABGA12047
BOLT M20 X 80 pc 8.8 COARSEFABJA08068
NYLOC NUT M12 P TYPEFFBGA000109
NYLOC NUT M20 P TYPE 2.5FFBJA000610
NYLOC NUT M30 P TYPEFFBNA000211
INTERNAL CIRCLIP 75 FKDWA003212
30mm FLAT WASHER HD ZINC 33X55X4FMAUKP02213
M12 WASHER 1/2" type 1HARD ZYP
FMCGE000414
DEPTH GAUGE POINTERGNBEN005115
ROLLER BRKT. 7 TYNE DEEP DIGGERGNBRM003116
ROLLER DRUM 7 TYNE DEEP DIGGERGNBRM004
117
HYDRAULIC KIT (ROLLER)7 TYNE LINKAGEGNBRN001
1
18
ROLLER GAUGE - DEEP DIGGERMACPB210119
HOLLOW BAR 56 X 40 (30mm)MFHGA030220
DECAL 1-7 Depth GaugePD000087121
GREASE EVERY 40 HRS DECALPD000GR10222
GREASE EVERY 40 HRS DECALPD000GR40223

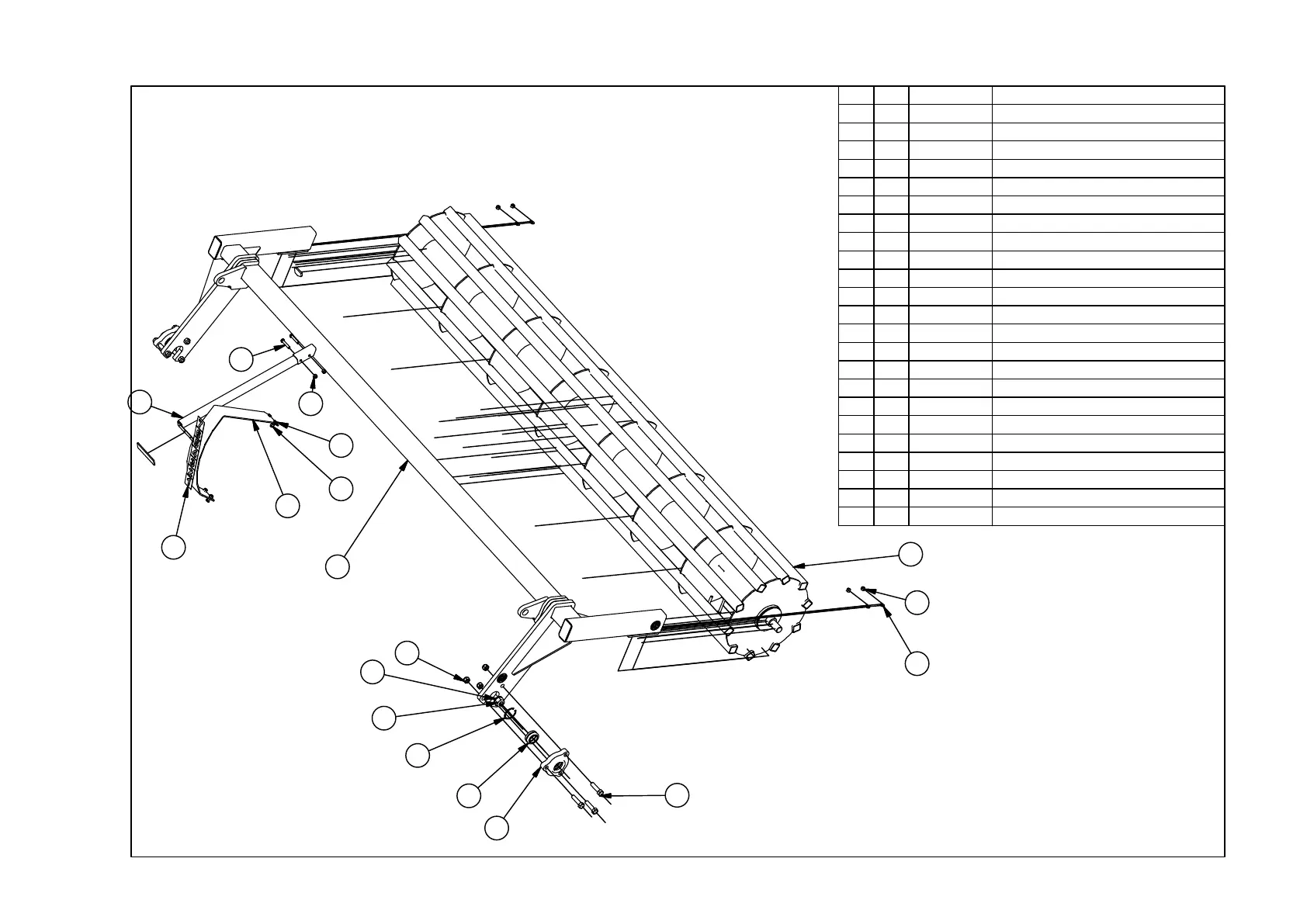

7 TYNE DEEP DIGGER ROLLER
L:\Inventor\Parts\GD-\GDNRJ007H.idw
GDNRJ007H
16
17
9
14
8
4
1
12
11
13
10
19
5
9
21
15
6
9
