Grizzly DEEP DIGGER - Page 40

40
Specications are subject to change without prior notication From serial number 7027
ITEM
QTY PART NO. DESCRIPTION
1 2 BDGAA001 GE50 RADIAL SPHERICAL PLAIN
2 2 BMCAA000 GREASE NIPPLE 1/8 BSP
3 3
BZGCA070S
BEARING ASSEMBLY UCFC 214
4 1 CABSE132 DEPTH GAUGE
5 2 CDEUU000 BEARING HOUSING - 3 BOLT 31mm FLANGE
6 4 FABEA025 BOLT M 8 X 25
7
2 FABGA075 BOLT M12 X 75 PC 8.8
8 8 FABHA070 BOLT M16 X 70 PC 8.8
9 6 FABJA080 BOLT M20 X 80 pc 8.8 COARSE
10 4 FFBEA000 NYLOC NUT M8 P TYPE
11 2 FFBGA000 NYLOC NUT M12 P TYPE
12 6 FFBJA000 NYLOC NUT M20 P TYPE 2.5
ITEM
QTY PART NO. DESCRIPTION
13 2 FFBNA000 NYLOC NUT M30 P TYPE
14
2 FKDWA003 INTERNAL CIRCLIP 75
15
2 FMAUKP02 FLAT WASHER 30mm / 1 1/4" HD 33X55X4
16 4 FMCEE000
M8 WASHER 5/16"F436 HARD ZYP
17 4 FMCGE000 M12 WASHER 1/2" type 1HARD ZYP
18 8 FMCHE000 M16 WASHER 5/8" F436 HARD ZYP
19
1
GNBEN005 DEPTH GAUGE POINTER
20 1 GNBRM008N
ROLLER DRUM 9 TYNE DEEP DIGGER NARROW (4.5M)
21 1 GNBRM009N ROLLER BRACKET 9 TYNE DEEP DIGGER
22 1 GNBRN002 HYDRAULIC KIT (ROLLER) 9 TYNE
23 2 PD000GR10 GREASE EVERY 10 HRS DECAL
24 2 PD000GR40 GREASE EVERY 40 HRS DECAL

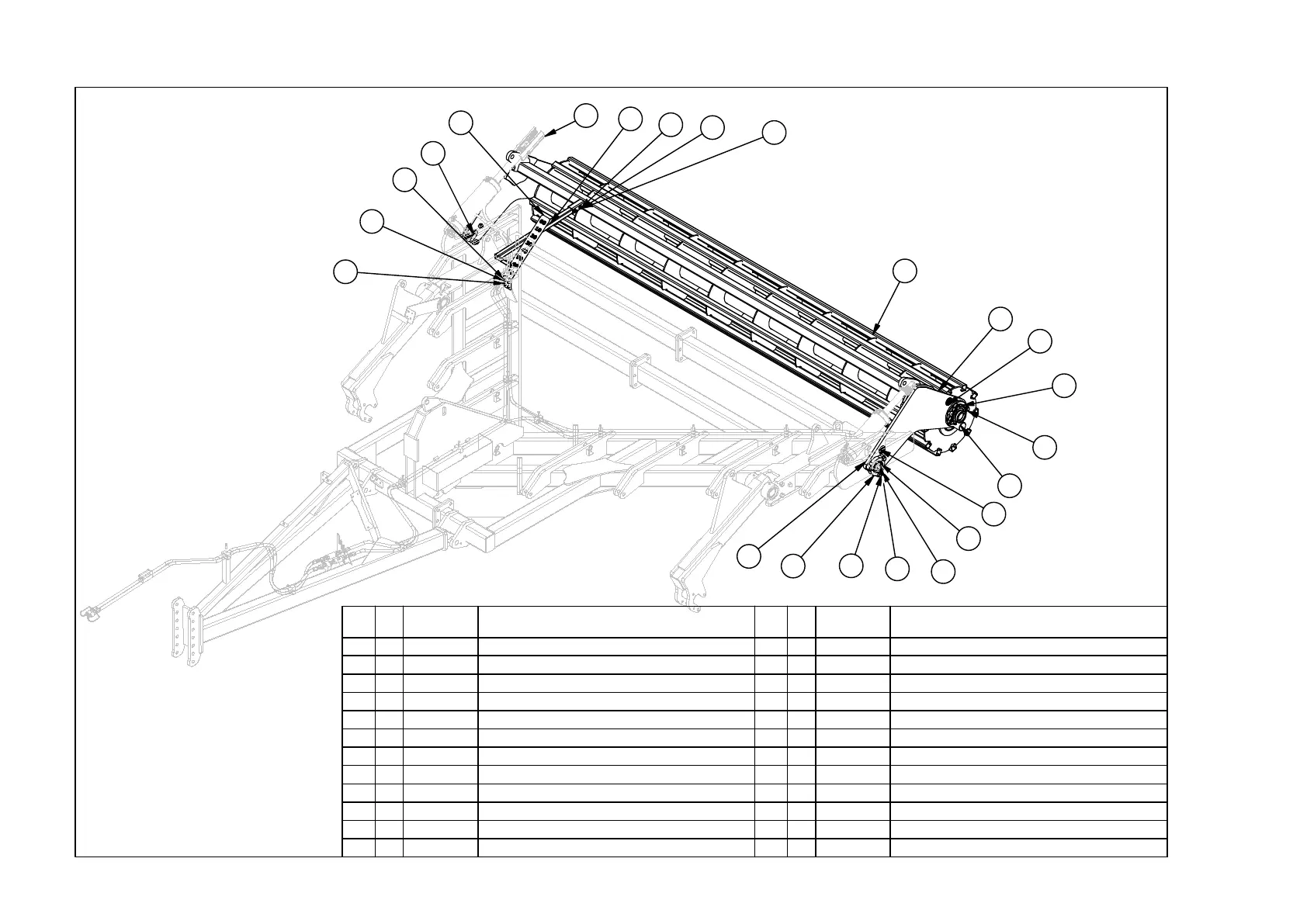

CRUMBLE ROLLER 9 TYNE NARROW
L:\Inventor\Parts\GD-\GDNRJ009N.idw
GDNRJ009N
20
21
3
8
18
5
9
13
19
4
11
7
17
6
10
16
23
24
22
12
1
15
14
