Grizzly DEEP DIGGER - Page 43

43
Specications are subject to change without prior notication December 2019
A ( 1:30 )
B ( 1 : 20 )
D ( 1 : 15 )
DESCRIPTIONPART NOQTYPOS
GE50 RADIAL SPHERICAL PLAINBDGAA00121
GREASE NIPPLE 1/8 BSP BMCAA00022
BEARING EW214 (EW214DH) 70mmBZGCA07023
HOUSING 214 PILLOW BLOCKBZJEA07C231
PLATE 50mm BEARING HOUSINGCDEUU00025
BOLT M12 X 40 PC 8.8FABGA040
46
BOLT M12 X 75 PC 8.8FABGA0752
7
BOLT M 16 X 160 pc 8.8 zincFABHA16048
BOLT M20 X 80 pc 8.8 COARSE
FABJA08069
NYLOC NUT M12 P TYPEFFBGA000610
NUT NYLOC M16 P TYPE PC8 ZINCFFBHA000411
NYLOC NUT M20 P TYPE 2.5
FFBJA000612
NYLOC NUT M30 P TYPEFFBNA000213
INTERNAL CIRCLIP 75 FKDWA003214
30mm FLAT WASHER HD ZINC 33X55X4FMAUKP02215
M12 WASHER 1/2" type 1HARD ZYPFMCGE000616
M16 WASHER 5/8" F436 HARD ZYPFMCHE000817
DEPTH GAUGE POINTERGNBEN005118
ROLLER BRACKET 11 TYNE DEEP DIGGER- 6.5GNBRM015-A119
WIDE ROLLER-11 TYNE DEEP DIGGER 6.5MGNBRM016-A
120
HYDRAULIC KIT (ROLLER) 11 TYNEGNBRN003121
ROLLER GUAGEMACPB210122
DECAL 1-7 Depth Gauge
PD000087127
GREASE EXERY 10 HRS DECALPD000GR10228
GREASE EXERY 40 HRS DECALPD000GR40229
A
B
D

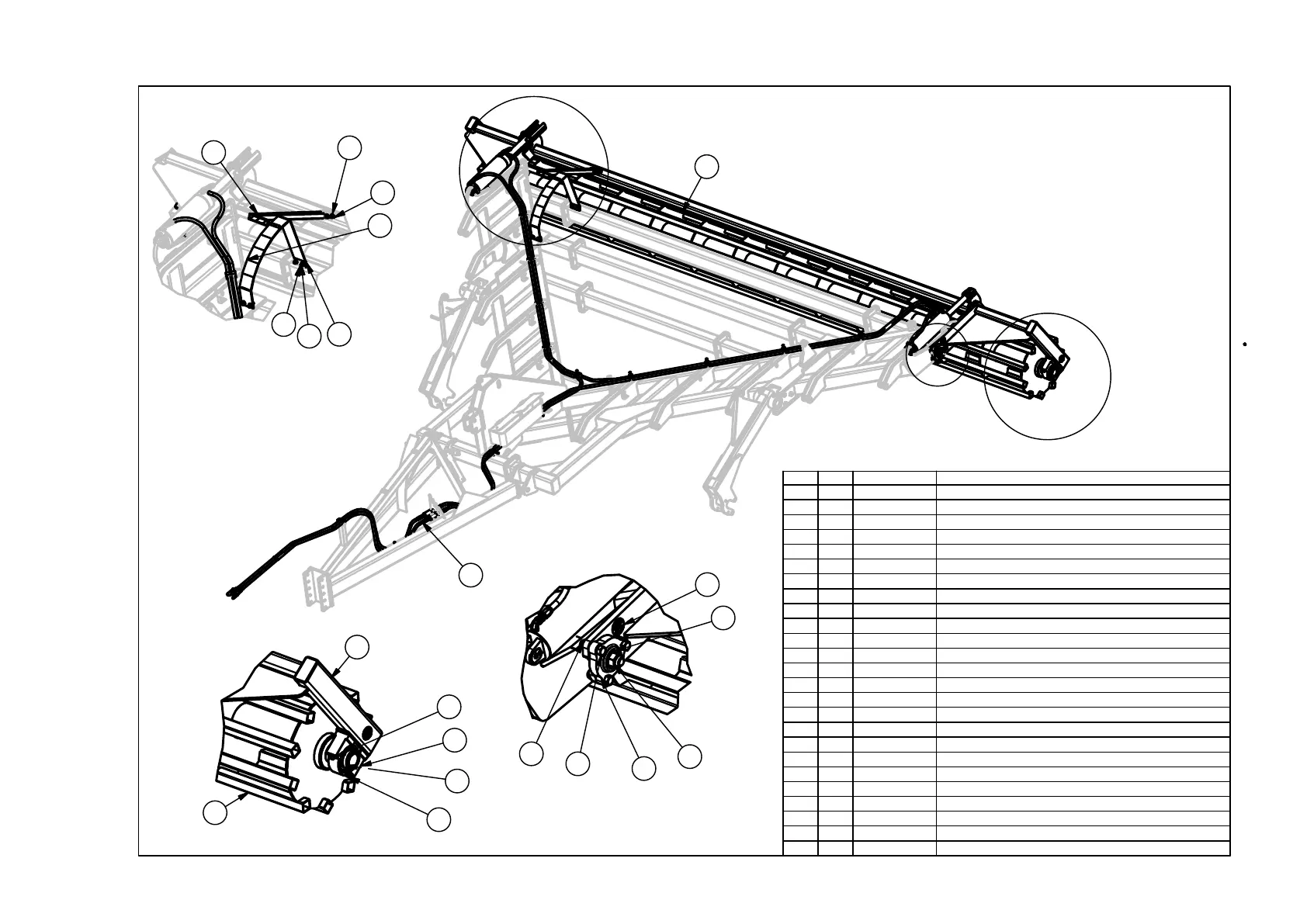

WIDE ROLLER ASSEMBLY 11 TYNE 6.5m
L:\Inventor\Parts\GD-\GDNRJ011WH.idw
21
GDNRJ011WH
18
22
10
16
6
7
20
16
31
8
17
3
20
19
9
13
5
1
12
29
