Grizzly DEEP DIGGER User Manual

54
Specications are subject to change without prior notication From serial number 7027
A ( 0.18 : 1 )
DESCRIPTIONPART NOQTYPOS
WEAR BOOT (HARD FACED)DYSPB50011
BOLT M24 X 110
FABKA11012
NYLOC NUT M24 P TYPEFFBKA00013
PIN 1" RIPPER SHEAR PIN (15mm)FGBKA094A04
RIPPER SHEAR PIN 18mm shear 94FGBKA094B
05
PIN 1" RIPPER SHEAR PIN (18mm)FGBKA094C16
ROLL PIN 8 X 50FGCBA05027
RIPPER TYNE 700mm UNDER
FRAME BIS 80
GNAFM50218
1" x 1 1/2" BUSH - SHEAR PIN
MDBZA02009
ROLL PIN PUNCH 5/16"TGA80050010
A

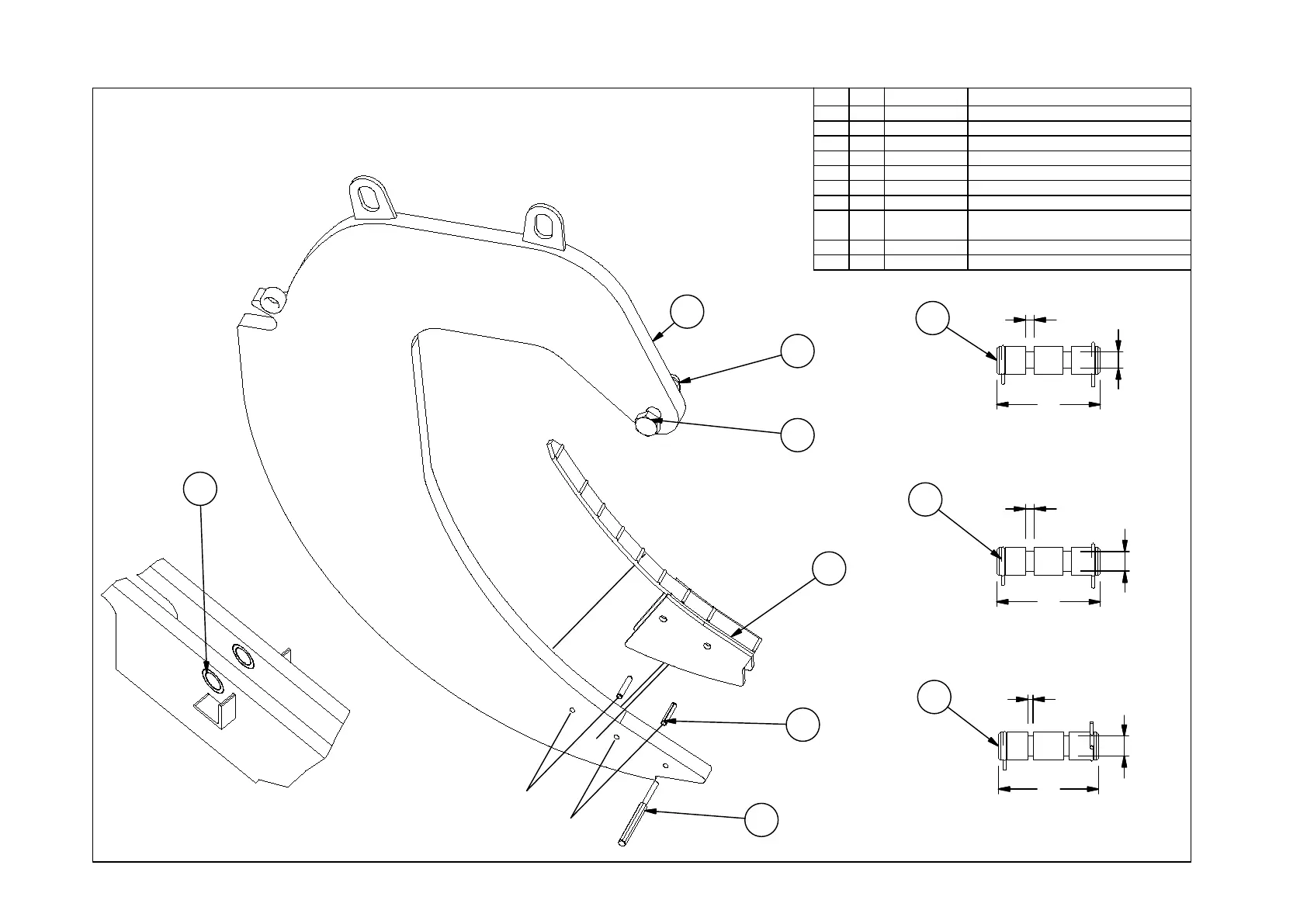

RIPPER TYNE ASSY / WEARBOOT 700
BIS 80
L:\Inventor\Parts\GN-\GNAFM503.idw
GNAFM503
1
7
2
3
8
8
8
5
18
18
15
94
94
91
4
5
6
9
10
USED ALL MACHINES FROM 2019
USED ON 15 TYNE BEFORE 2019
USED BEFORE 2019
#9 HARDENED BUSH USED FROM 2019
