Model G0440/G0441 (Mfg. Since 03/12)
-23-
Note—For the Model G0441 Only: If you
plan to keep your machine under an 8' ceil-
ing, skip Step 15.
15. Model G0441: Connect the upper and lower
collection drums together and secure them
with the included metal clamp and provided
fasteners, as shown in Figure 25.

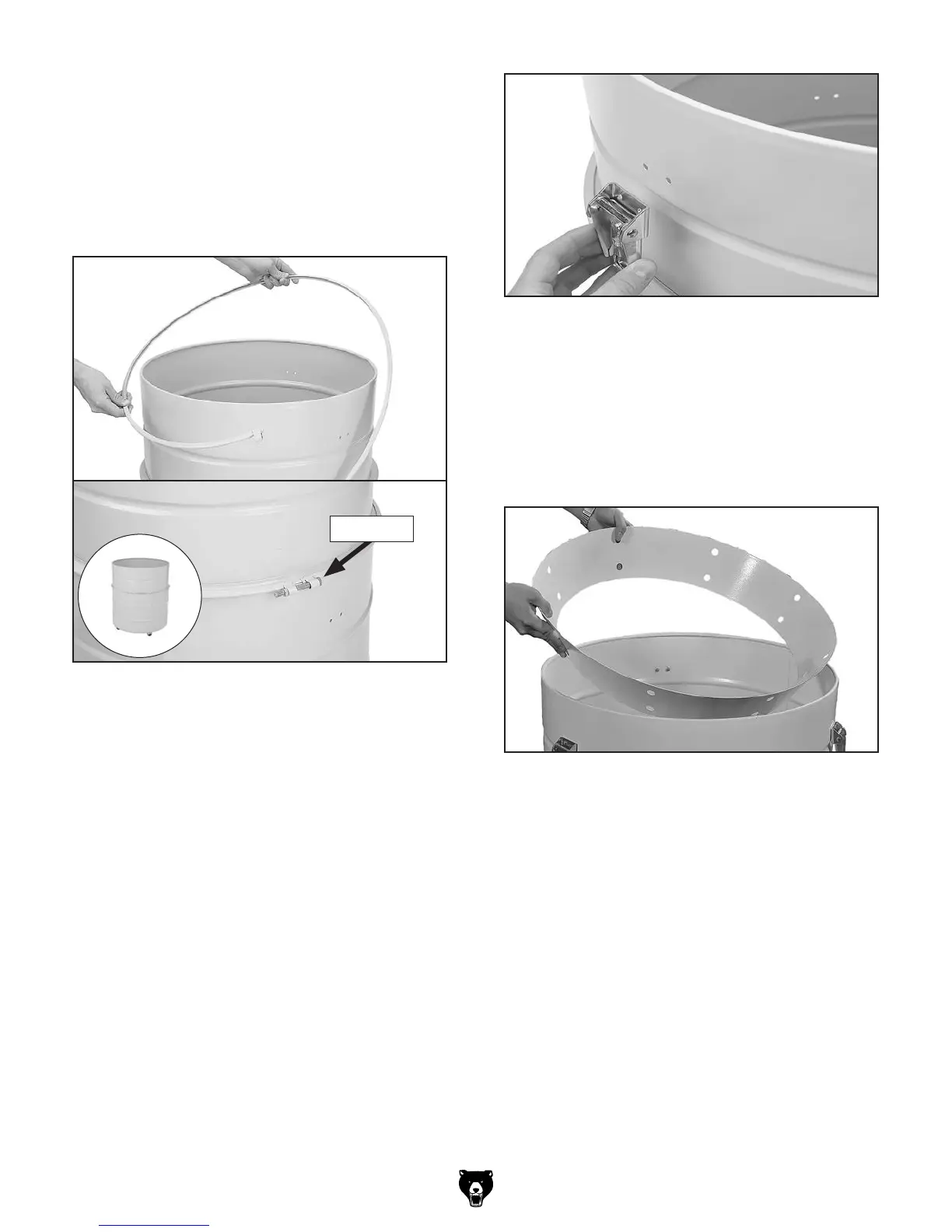

Figure 25. Installing metal clamp around
collection drum.
Fasteners
16. Install the drum latches, as shown in Figure
26, with the (6) #10-24 x
3
⁄8" Phillips head
screws and (6) #10-24 hex nuts included in
the box with the drum latches. Make sure the
hex nuts are on the outside of the drum so
that they will not snag the plastic collection
bag.
Note—For the Model G0441 Only: If you
are using the collection drum at full height,
use the extra (6) #10-24 Phillips head screws
and hex nuts provided to plug the lower latch
mounting holes.
Figure 26. Installing drum latches on collector
drum.
17. Place the collection drum vacuum ring on the
bottom of the collection drum (see Figure 27).
Note: During operation, this ring and the
vacuum connection to the cyclone funnel will
prevent the collection bag from collapsing.
Figure 27. Inserting collection drum vacuum
ring.
