Grizzly G0453 User Manual

-15-
G0453/G0454 (Mfg. Since 3/08)
Inventory
Box Inventory: (Figure 5) Qty
A. Planer (Not Shown) .................................... 1
B. Dust Hood .................................................. 1
C. Foot Pedal .................................................. 1
D. Handwheel ................................................. 1
E. Caster ......................................................... 1
F. Extension Wings ........................................ 2
G0453 Hardware and Tools (not shown)
• Set Screws M8-1.25 x 20 (Wings) .............. 4
• Hex Bolts M8-1.25 x 30 (Wings) ................. 6
• Flat Washers 8mm (Wings) ........................ 6
• Lock Washers 8mm (Wings) ...................... 6
• Handwheel Bushing ................................... 1
• Handwheel Handle ..................................... 1
• Hex Nut M12-1.75 (Handwheel) .................. 1
• Flat Washer 12mm (Handwheel) ................ 1
• Hex Bolts M6-1 x 10 (Dust Hood) .............. 3
• Flat Washers 6mm (Dust Hood) ................. 6
• Hex Nuts M6-1 (Dust Hood) ....................... 3
• Cap Screws M8-1.25 x 20 (Dust Hood) ...... 3
• Hex Wrenches 2.5, 3, 4, 6mm ...........1 Each
• Wrenches 10/12, 14/17, 17/19mm ...... 1 Each
• Knife Gauge ............................................... 1

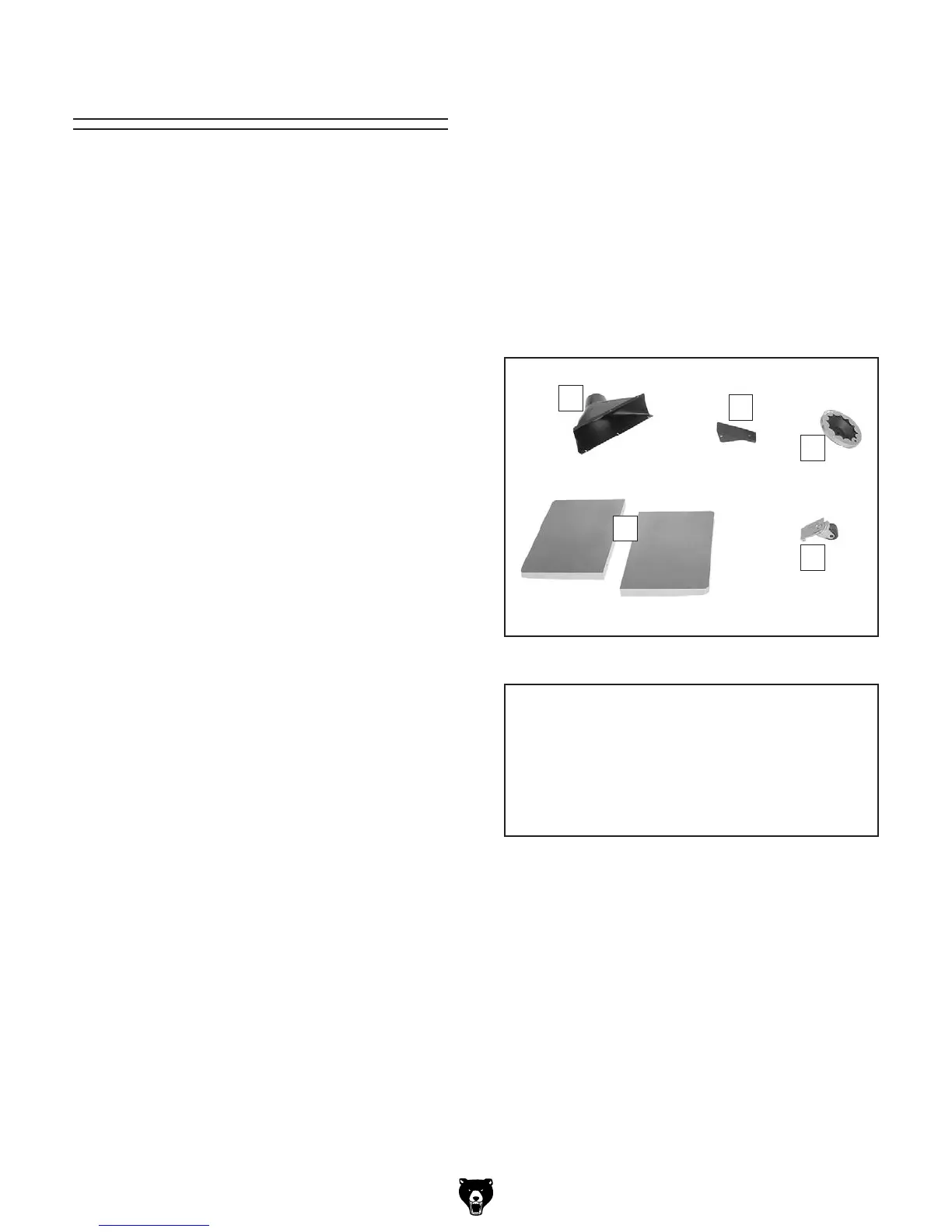

Figure 5. Model G0453/G0454 inventory.
B
C
D
E
F
G0454 Hardware and Tools (not shown)
• Set Screws M8-1.25 x 20 (Wings) .............. 6
• Hex Bolts M8-1.25 x 30 (Wings) ................. 6
• Flat Washers 8mm (Wings) ........................ 6
• Lock Washers 8mm (Wings) ...................... 6
• Handwheel Bushing ................................... 1
• Handwheel Handle ..................................... 1
• Hex Nut M12-1.75 (Handwheel) .................. 1
• Flat Washer 12mm (Handwheel) ................ 1
• Flange Bolts M6-1 x 12 (Dust Hood) .......... 6
• Hex Wrenches 3, 4, 5, 6mm .............. 1 Each
• Wrenches 8/10, 12/14, 17/19mm ........ 1 Each
• Knife Gauge ............................................... 1
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
