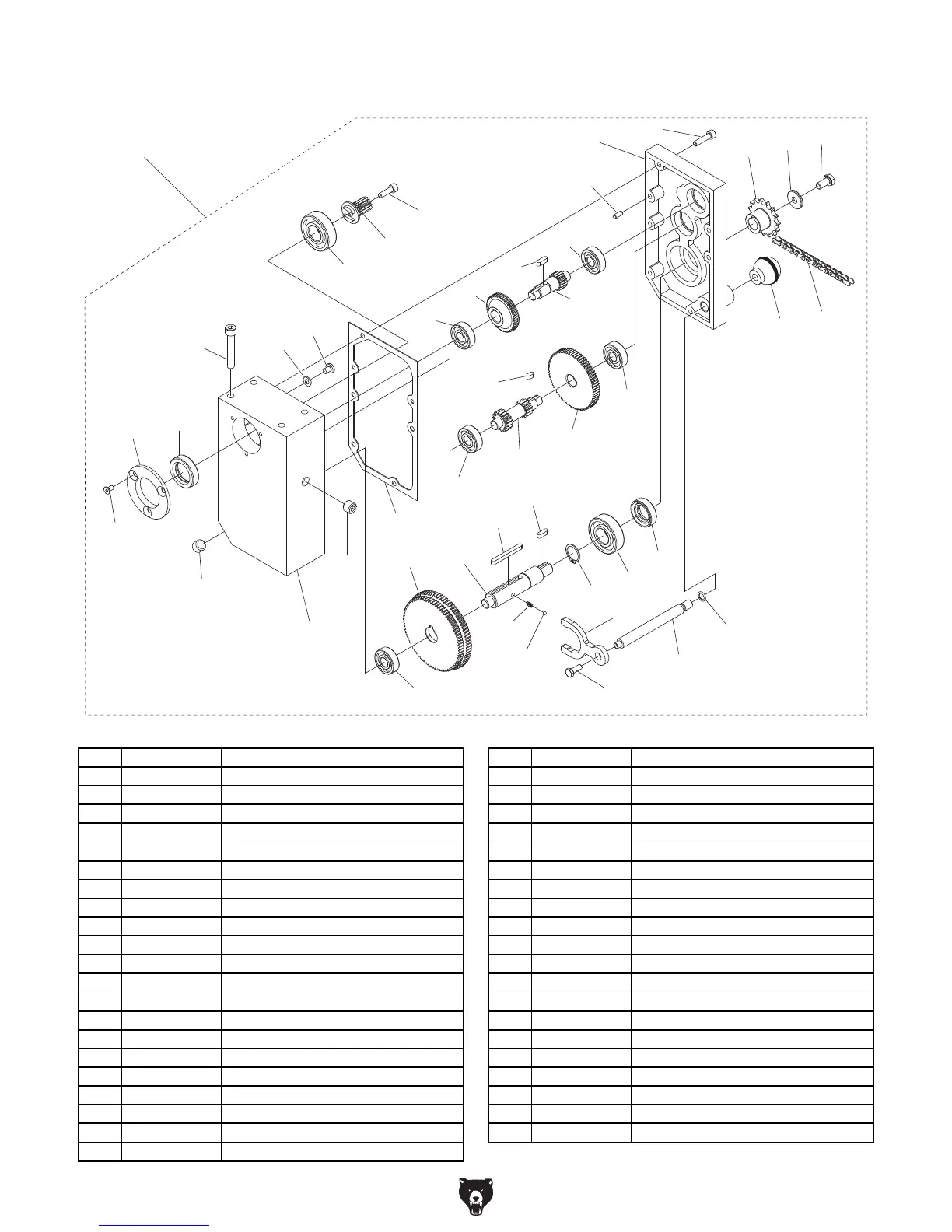

G0454 Gearbox Breakdown
500A
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
504
529
525
543
REF PART # DESCRIPTION REF PART # DESCRIPTION
500A P0454500A GEARBOX ASSEMBLY 522 P0454522 KEY 5 X 5 X 50
501 P0454501 BALL BEARING 6204ZZ 523 P0454523 SHAFT
502 P0454502 CHAIN 06B-1 X 51 524 P0454524 GEAR
503 P0454503 EXT RETAINING RING 20MM 525 P0454525 BALL BEARING 6201ZZ
504 P0454504 OIL PLUG 526 P0454526 KEY 5 X 5 X 10
505 P0454505 CAP SCREW M6-1 X 25 527 P0454527 GEAR SHAFT
506 P0454506 GEARBOX BASE 528 P0454528 GEAR
507 P0454507 GASKET 529 P0454529 BALL BEARING 6201ZZ
508 P0454508 PIN 5 X 10 530 P0454530 KEY 5 X 5 X 14
509 P0454509 BALL KNOB M10-1.5 531 P0454531 GEAR SHAFT
510 P0454510 OIL RING 12 X 17MM 532 P0454532 GEAR
511 P0454511 HANDLE SHAFT 533 P0454533 FLAT WASHER 6MM
512 P0454512 SHIFTING FORK 534 P0454534 PHLP HD SCR M6-1 X 8
513 P0454513 HEX BOLT M8-1.25 X 16 535 P0454535 CAP SCREW M6-1.0 X 20 LH
514 P0454514 FLAT WASHER 8MM 536 P0454536 GEAR 14T
515 P0454515 KEY 5 X 5 X 16 537 P0454537 OIL SEAL 25 X 40 X 10
516 P0454516 SPROCKET 538 P0454538 CAP SCREW M5-.8 X 12
517 P0454517 OIL SEAL 20 X 35 X 7 539 P0454539 FLANGE COVER
518 P0454518 BALL BEARING 6204ZZ 540 P0454540 CAP SCREW M8-1.25 X 50
519 P0454519 BALL BEARING 6201ZZ 541 P0454541 GEARBOX COVER
520 P0454520 STEEL BALL 4MM 543 P0454543 FLANGE BOLT M6-1 X 12
521 P0454521 COMPRESSION SPRING
