10.
11.

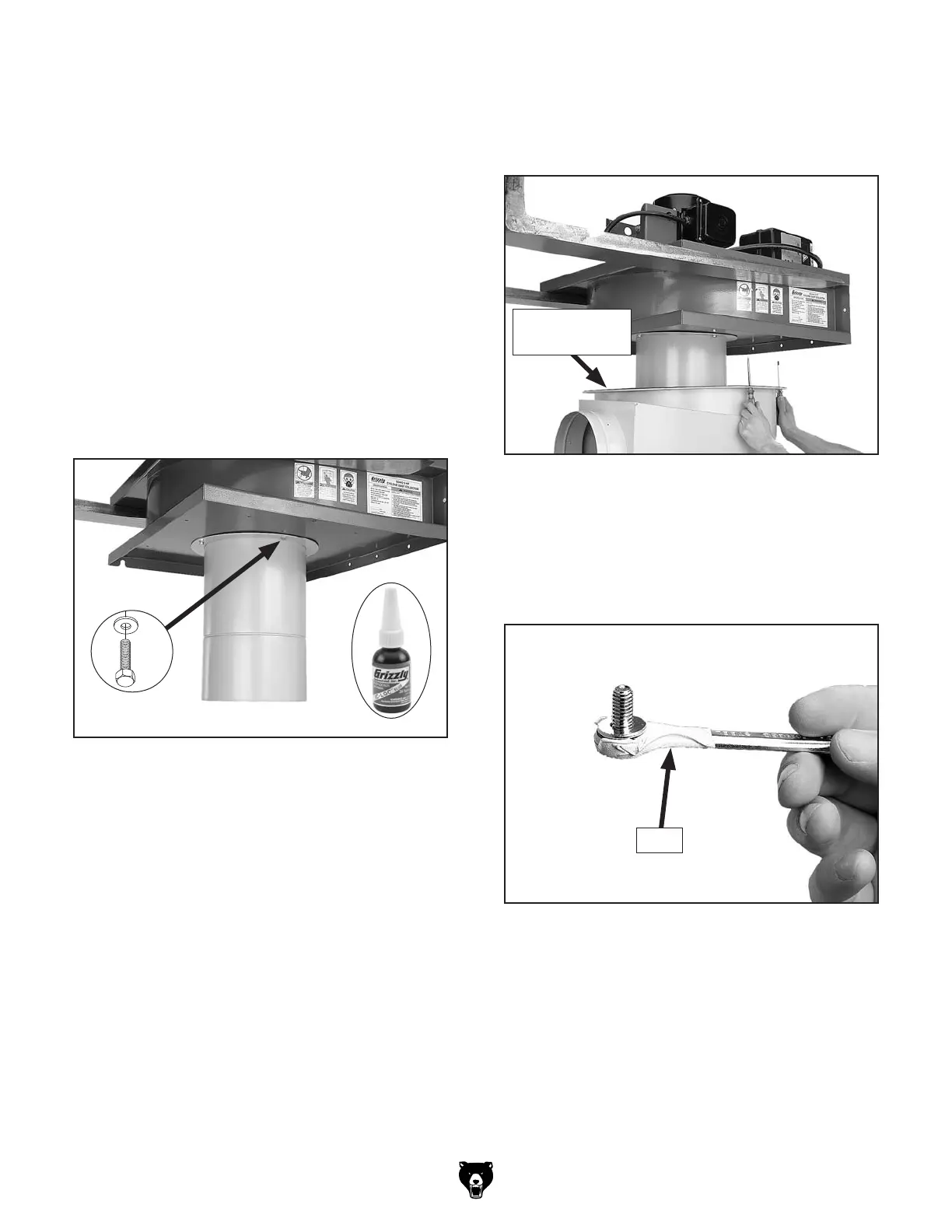

Figure 17
Note: Because this part of the dust collec-
tor is not accessible after the assembly is
complete, consider using Medium Strength
Blue Thread Locker (Grizzly Model T21854)
on the bolts that secure the intake cylinder
to the motor/blower housing assembly to
ensure that the fasteners won't come loose
with vibration.
Figure 17.
13.
Figure 18
Figure 18.
Note: In the next step, when installing the two
bolts above the intake port, use duct tape on
the bottom of your wrench to hold the bolts
in place, as shown in Figure 19. This will
enable you to start the bolts easier.
12.
Figure 19.
