READ ELECTRICAL SAFETY
ON PAGE 82!

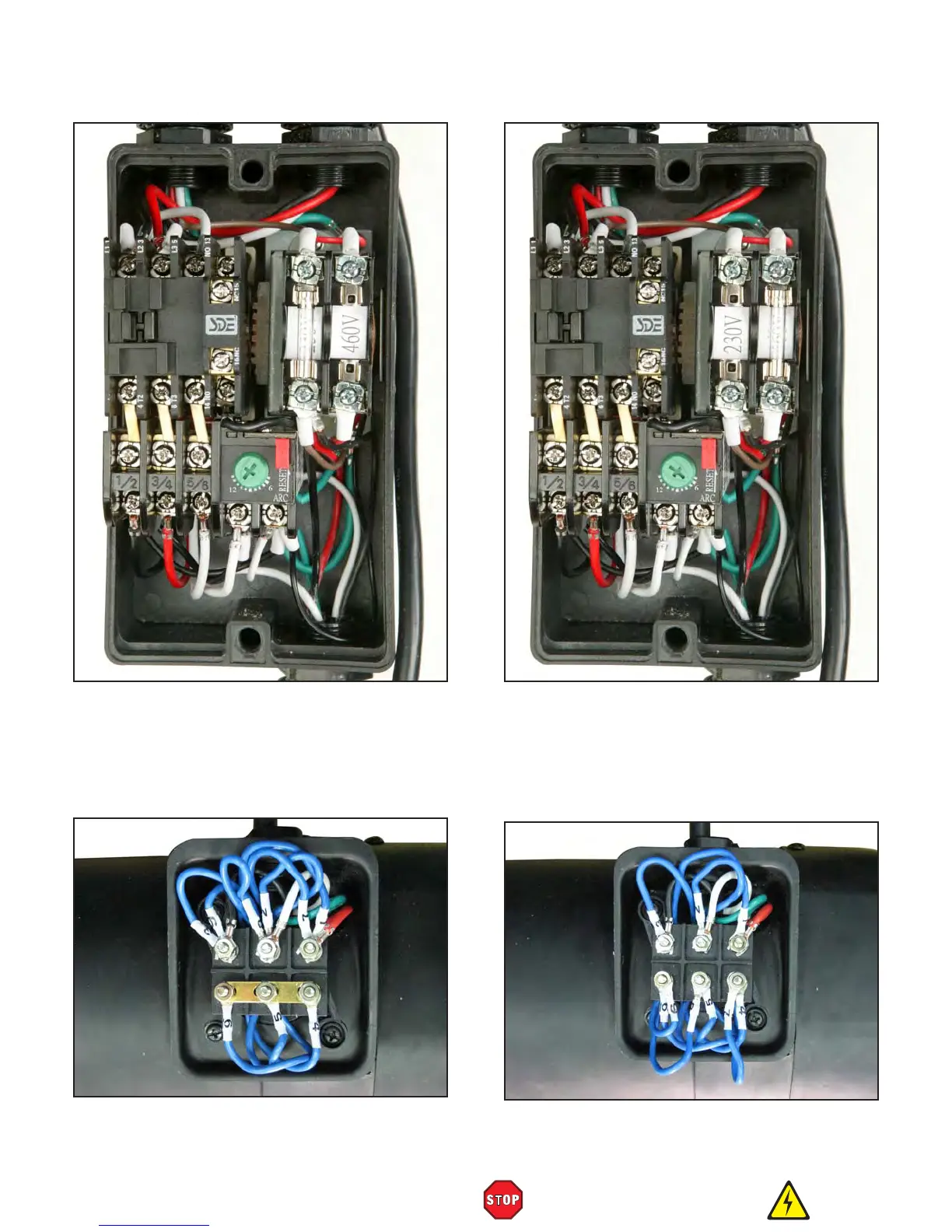

G0652 Electrical Components
Figure 154
Note: The therrmal relay in Figure 154 is adjusted
for 6 amp, 440V, 3-phase operation.
Figure 152
Note: The thermal relay in Figure 152 is set for 12
amp, 220V, 3-phase operation.
Figure 153
Figure 155
To Next Page
