Grizzly G0716 User Manual


 
READ ELECTRICAL SAFETY
ON PAGE 39!

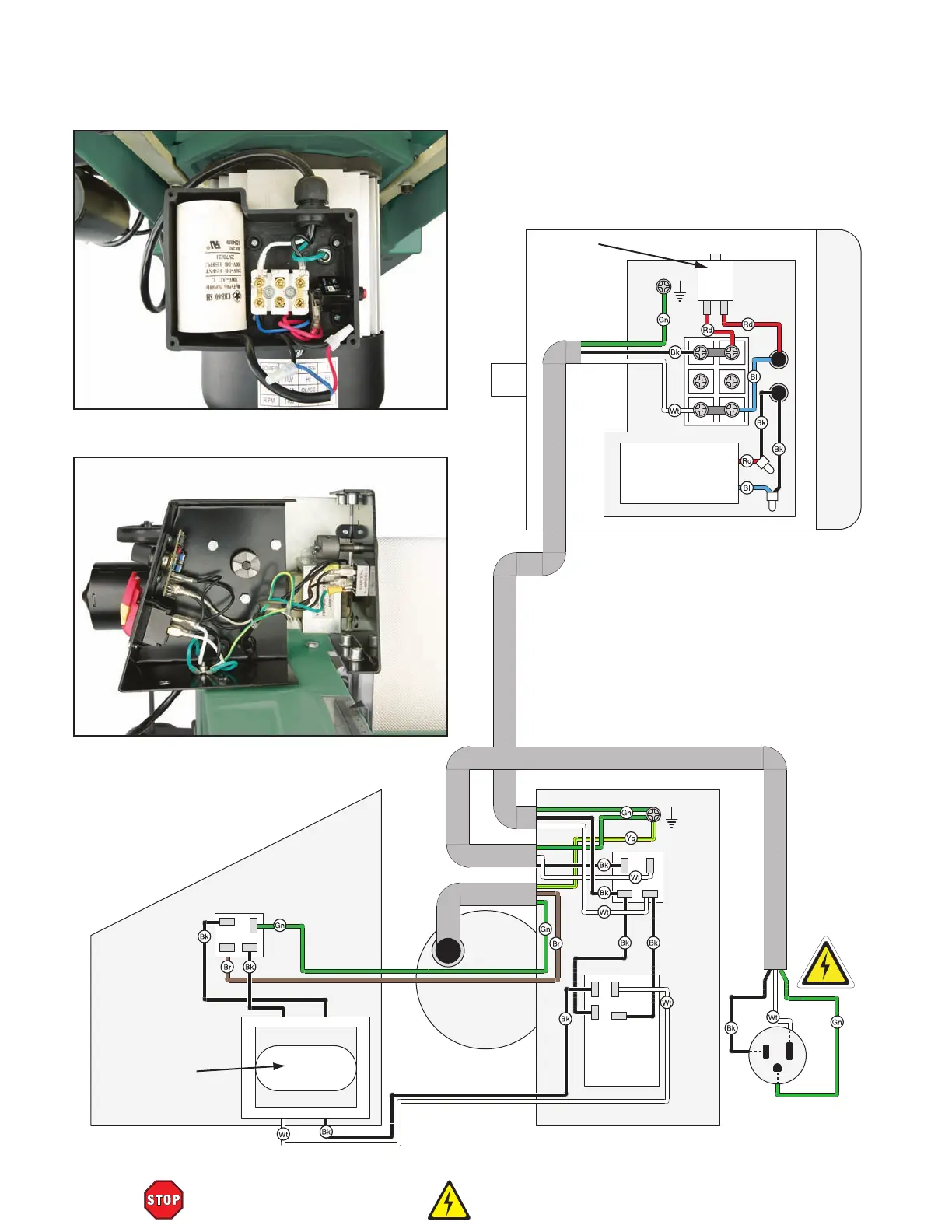

G0716 Wiring Diagram
Ground
Start Capacitor
80Mfd 300VAC
Ground
ON/OFF
Switch
Conveyor
Circuit
Board
Conveyor
Motor
Sanding Motor
5-15 Plug 110VAC
(As Recommended)
Ground
Neutral
Hot
Bridge
Rectifier
Thermal
Overload
Circuit
Breaker
HF-7A
Transformer
Omron
DB-B838
120V/60Hz
24V/1.4A
AC
+
Line Load
Figure 41.
Figure 42.

Grizzly G0716 Specifications

General

Brand	Grizzly
Model	G0716
Category	Sander
Language	English
