Grizzly G0716 User Manual

 

1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
16
17
18
19
20
21
22
23
24
25
26
27
28
9
1
2
4
5
3
6
19
6
19
17
27
28
15
19
17
9
21
19
12
29

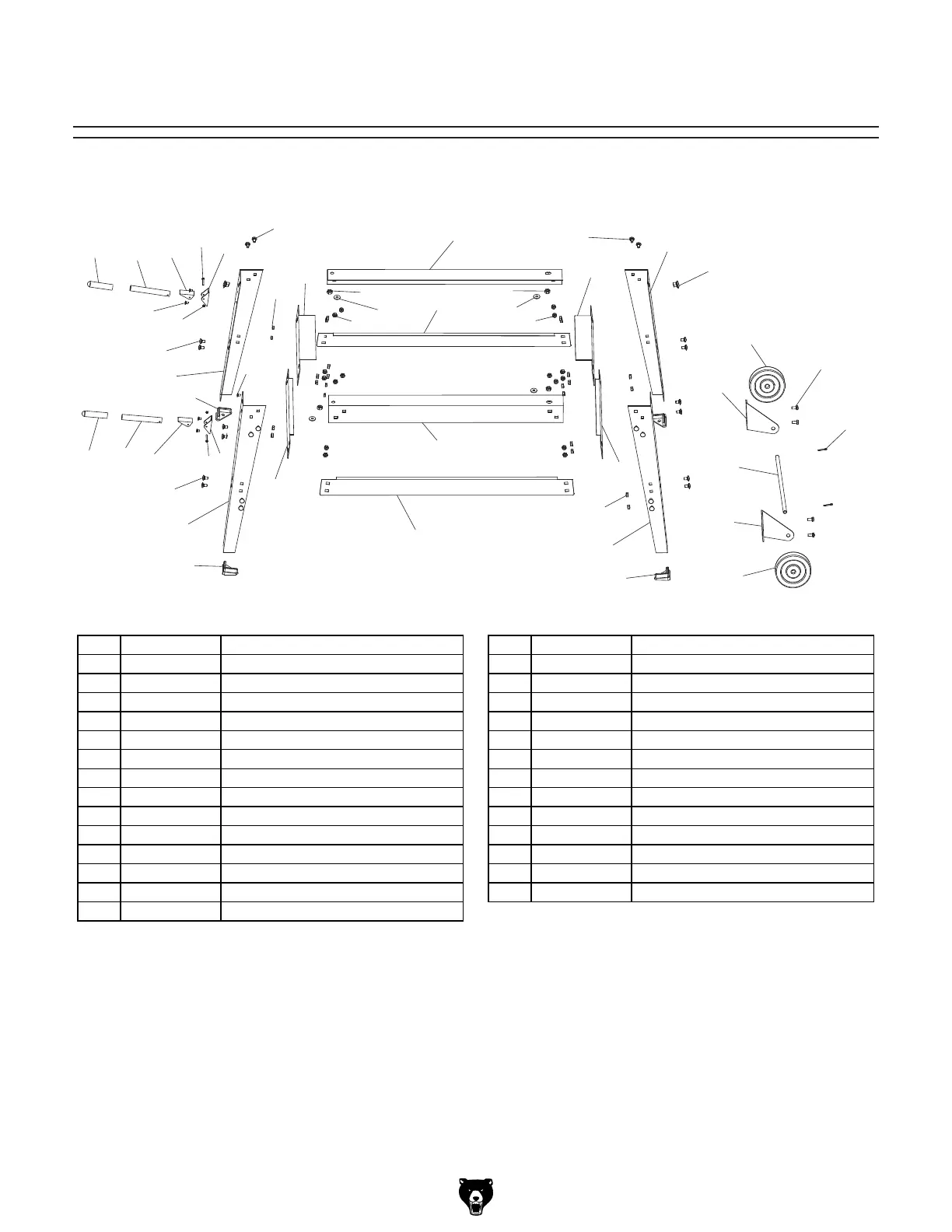

Stand
SECTION 9: PARTS
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0716001 HANDLE GRIP 16 P0716016 RIGHT LONG TOP BRACE
2 P0716002 HANDLE 17 PLN04M LOCK NUT M8-1.25
3 PS25M PHLP HD SCR M4-.7 X 35 18 P0716018 LEFT REAR STAND LEG
4 P0716004 HANDLE BRACKET 19 PCB11M CARRIAGE BOLT M8-1.25 X 12
5 P0716005 HANDLE BASE 20 P0716020 LEFT WHEEL MOUNTING BRACKET
6 PFH43M FLAT HD SCR M6-1 X 10 21 P0716021 WHEEL 5"
7 PN04M HEX NUT M4-.7 22 PB03M HEX BOLT M8-1.25 X 16
8 P0716008 LEFT FRONT STAND LEG 23 P0716023 WHEEL AXLE
9 P0716009 LEG FOOT PAD 24 P0716024 RIGHT REAR STAND LEG
10 P0716010 RIGHT FRONT STAND LEG 25 P0716025 RIGHT WHEEL MOUNTING BRACKET
11 PLN03M LOCK NUT M6-1 26 P0716026 COTTER PIN 4 X 20
12 P0716012 SHORT BOTTOM BRACE 27 PW04M FLAT WASHER 10MM
13 P0716013 FRONT SHORT TOP BRACE 28 PLN05M LOCK NUT M10-1.5
14 P0716014 LEFT LONG TOP BRACE 29 P0716029 REAR SHORT TOP BRACE
15 P0716015 LONG BOTTOM BRACE
