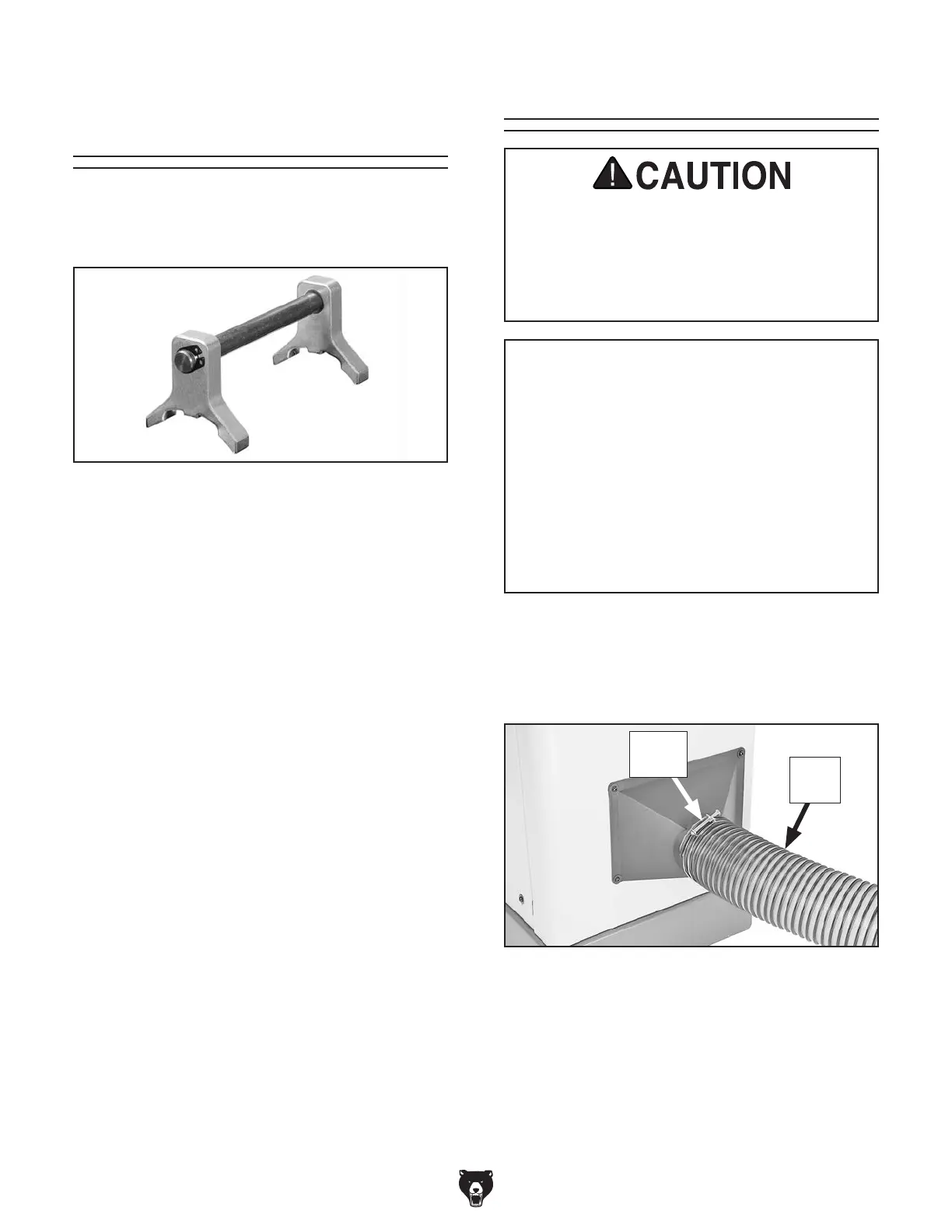

Figure 14. Knife-setting jig assembly
(G0857 only).
To connect dust-collection hose:
1.
Fit 4" dust hose over dust port, as shown in
Figure 15, and secure with a hose clamp.
2.
Tug hose to make sure it does not come
off. A tight fit is necessary for proper
performance.
Dust Collection
Recommended CFM at Dust Port: 400 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col-
lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal-
culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.
This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma-
nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.
Figure 15. Example of dust hose attached to
dust port.
Hose
Clamp
Dust
Hose
Assemble the knife-setting jig (see Figure 14)
using the knife-setting jig rod, feet, and external
retaining rings.
Knife-Setting Jig
(G0857)
To Next Page
