I. Outfeed Table Lock: Tighten to secure
outfeed table position; loosen for table
adjustment.
J. Cutterhead Guard: Covers cutterhead until
workpiece pushes guard out of the way
during operation. When workpiece leaves
cutterhead, guard springs back to its starting
position.
K. Table Release Knob: Pull out to lower infeed
table more than
1
⁄8". Infeed table is factory-set
to automatically stop at
1
⁄8".
L. Infeed Table Lock: Tighten to secure infeed
table position; loosen for table adjustment.
M. Depth-of-Cut Scale: Shows depth of cut (per
pass).
N. Fence Tilt Handle: Use to tilt fence through-
out its range of motion from 45° inward to
45° outward (135°). (Fence tilt lock must be
loosened first.)
O. 90° Stop Block: Swivels to engage with 90°
stop bolt. When engaged, stops fence at 90°.
When disengaged, allows bevel cuts greater
than 90°.
P. 45° Inward Fence Stop: Stops fence at 45°
inward.
Q. 90° Fence Stop: Stops fence at 90°.
R. 45° Outward Fence Stop: Stops fence at
45° outward (135°).
S. Fence Tilt Lock: Tighten to secure fence at
any position in available tilt range.
IMPORTANT: Always tighten tilt lock before
starting machine—even when fence is rest-
ing against stops.
T. Fence Lock Lever: Tighten to secure fence
position along width of tables; loosen for
fence adjustment.
U. Fence Adjustment Knob: Rotate to move
fence position forward/backward. (Fence lock
lever must be loosened first.)

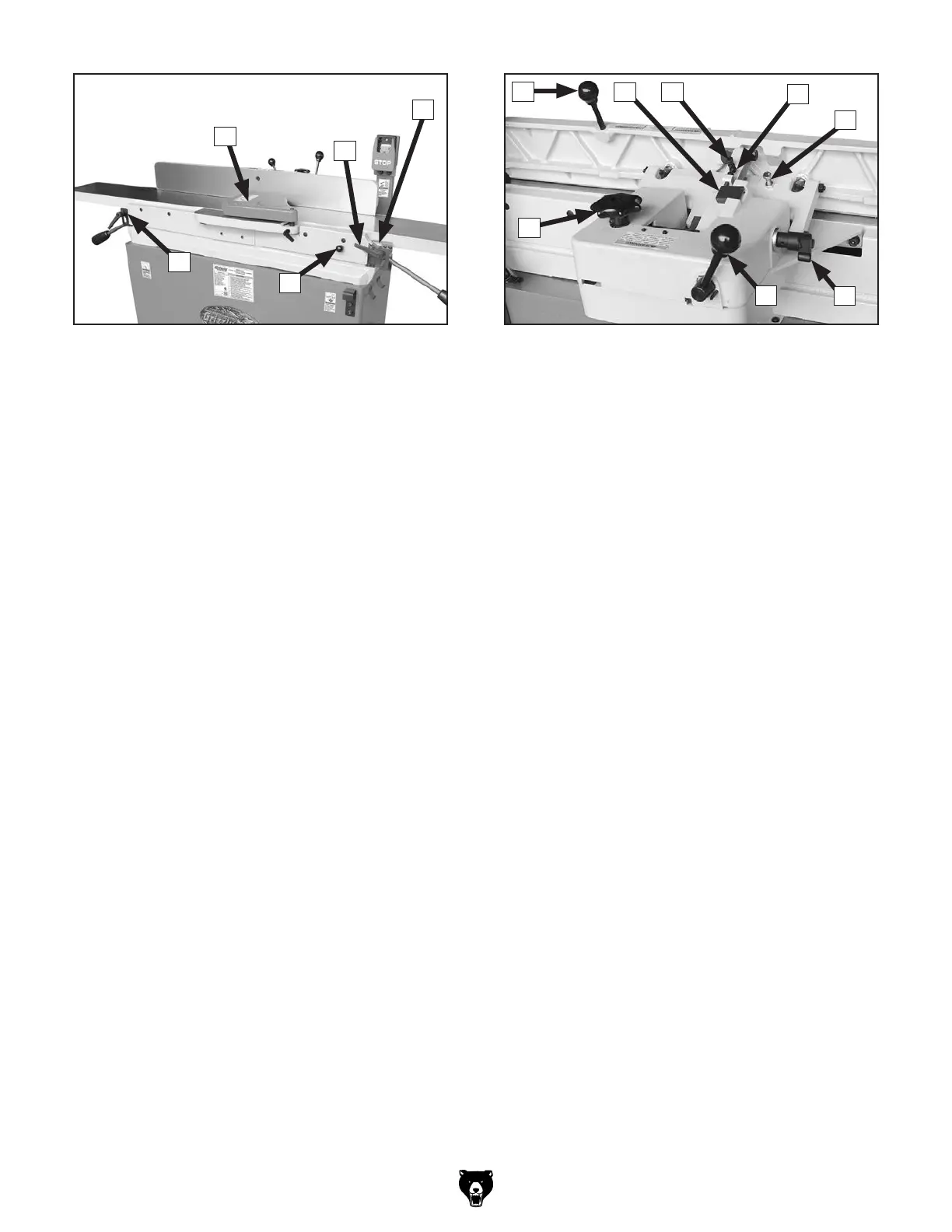

Figure 4. Fence controls and components.
O
P
Q
R
S
T
U
N
Figure 3. Table locks, cutterhead guard, and
depth-of-cut scale.
I
J
M
L
K
