7. Insert front of pawl assembly into spreader
where shown in Figure 17, then pivot back of
pawl assembly down and snap in place.

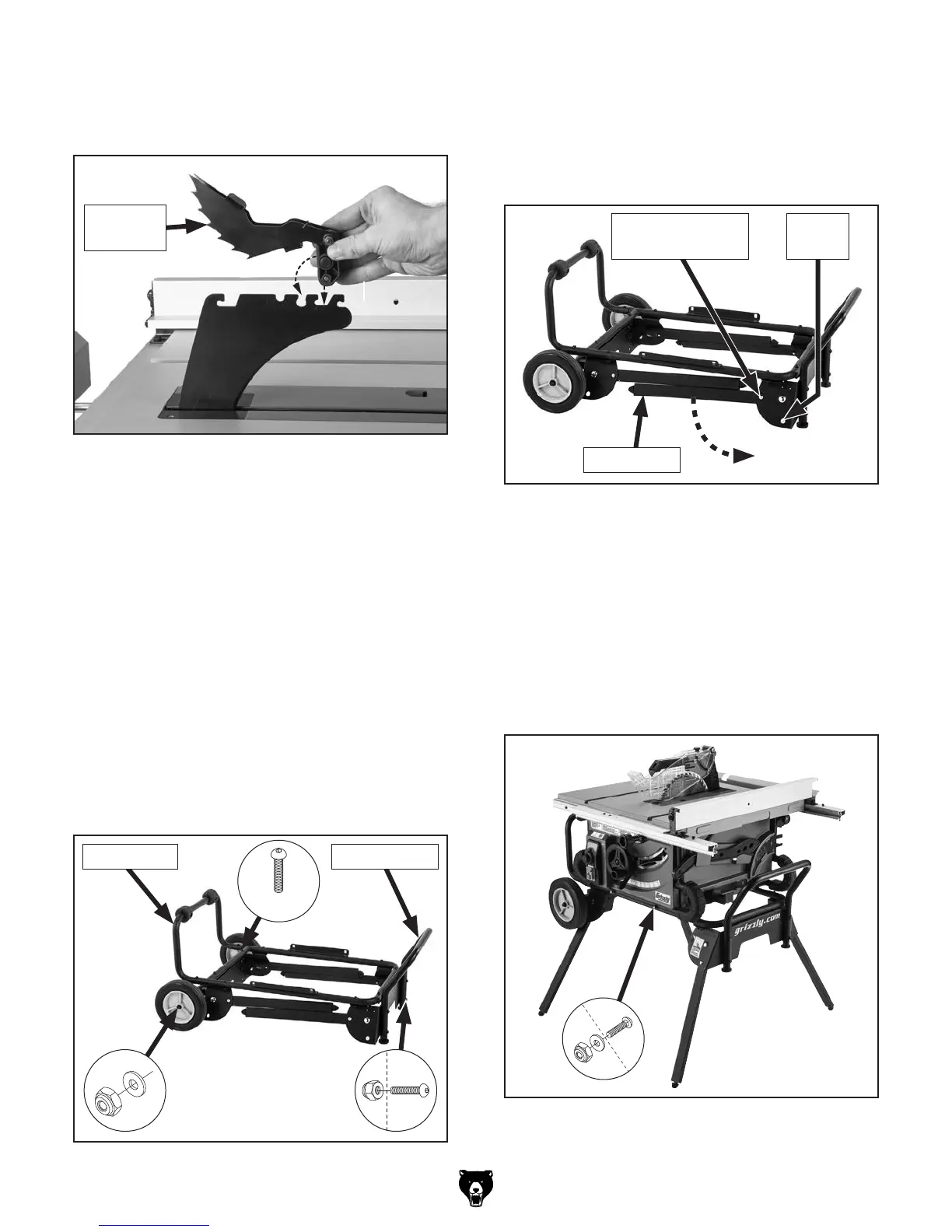

Figure 17. Installing anti-kickback pawls onto
spreader.
8. Re-install upper blade guard assembly and
tighten blade guard knob (see Figure 16).
Pawl
Assembly
1. Attach (2) wheels to axle with (2) 8mm flat
washers and (2) M8-1.25 lock nuts (see
Figure 18).
2. Attach left handle to stand body with (2)
M8-1.25 x 16 button head cap screws (see
Figure 18).
3. Attach right handle to stand body with (4)
M8-1.25 x 40 button head cap screws and
(4) M8-1.25 lock nuts (see Figure 18).
Figure 18. Roller stand assembly.
x 2
x 4
x 2
Left Handle Right Handle
Assembling Roller Stand (G0870)
Mounting Table Saw to Roller Stand
(G0870 Only)
1. Push leg lock buttons in and unfold legs until
lock buttons click into place in holes shown in
Figure 19.
Figure 19. Location of stand legs, leg lock
buttons, and leg lock holes.
Leg Lock Button
(1 of 4)
Hole
(1 of 4)
Leg (1 of 4)
2. Place table saw unit on stand and secure
with (4) M8-1.25 x 40 carriage bolts, (4) 8mm
flat washers, and (4) M8-1.25 lock nuts (see
Figure 20).
Note: The table saw can mount to the stand
facing either direction—with the stand wheels
oriented to the left or to the right.
Figure 20. Model G0869 mounted on Model
G0871 Roller Stand.
x 4
