-50-
Model G0869/G0870 (Mfd. Since 01/19)
The table saw features stop cams that stop the
blade exactly at 45° and 90° when tilting it. The
stops have been set at the factory and should
require no adjustments, unless you notice that
your cuts are not accurate.
Note: The tilt scale reads "0" when the blade is
90° to the table.
Tools Needed Qty
90° Square ........................................................ 1
45° Square ........................................................ 1
Phillips Head Screwdriver #2 ............................ 1
— If blade is 90° to table, then no adjustment
to stop cam is necessary. Make sure tilt
scale pointer shown in Figure 80 points
to 0° mark on scale. If necessary, adjust
position by loosening adjustment screw,
moving pointer with your fingers, then
tightening screw.

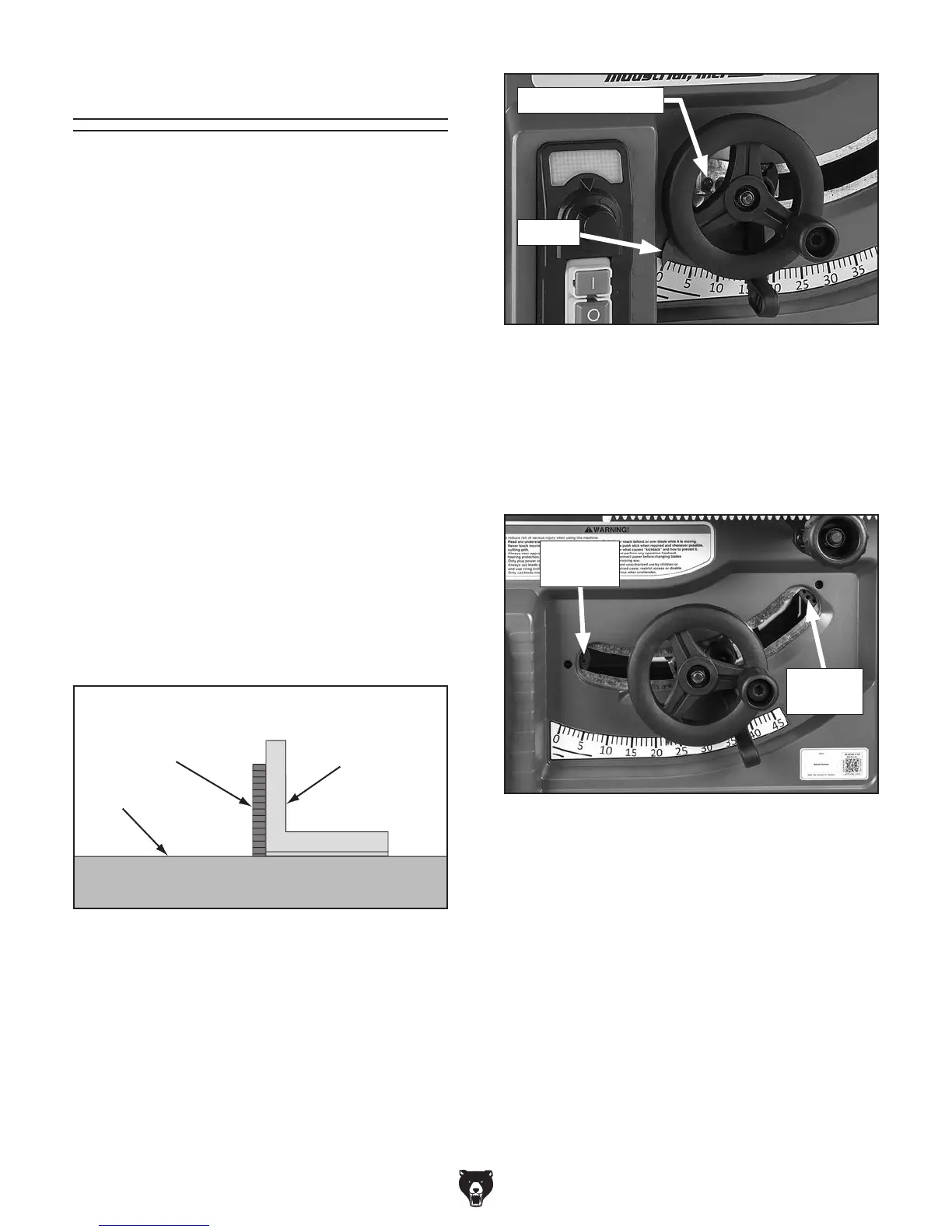

Figure 79. Checking blade at 90°.
Table
90° Square
Blade
— If blade is not 90° to table, you will need to
adjust 90° stop cam. Proceed to Step 4.
4. Tilt blade to approximately 25°, so there is
room to adjust 90° stop cam (see Figure 81).
Blade Tilt Stops
Figure 80. Location of tilt scale pointer and
adjustment screw.
Pointer
Adjustment Screw
Figure 81. Location of 90° stop cam.
90° Stop
Cam
45° Stop
Cam
Setting 90° Stop Cam
1. DISCONNECT MACHINE FROM POWER!
2. Raise blade as high as it will go, then tilt it
toward 0° until it stops and cannot be tilted
any more.
3. Place 90° square against table and blade so
it contacts blade evenly from bottom to top,
as shown in Figure 79. Make sure blade
tooth does not obstruct placement of square.
To Next Page
