Grizzly G0869 User Manual

-64-
Model G0869/G0870 (Mfd. Since 01/19)
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
324
321
320
319
316
327
317
318
314
315
322
323
327
306
308
307
326
310
309
305
302
306
312
312
304
302
301
311
309
310
304
303
313
300A

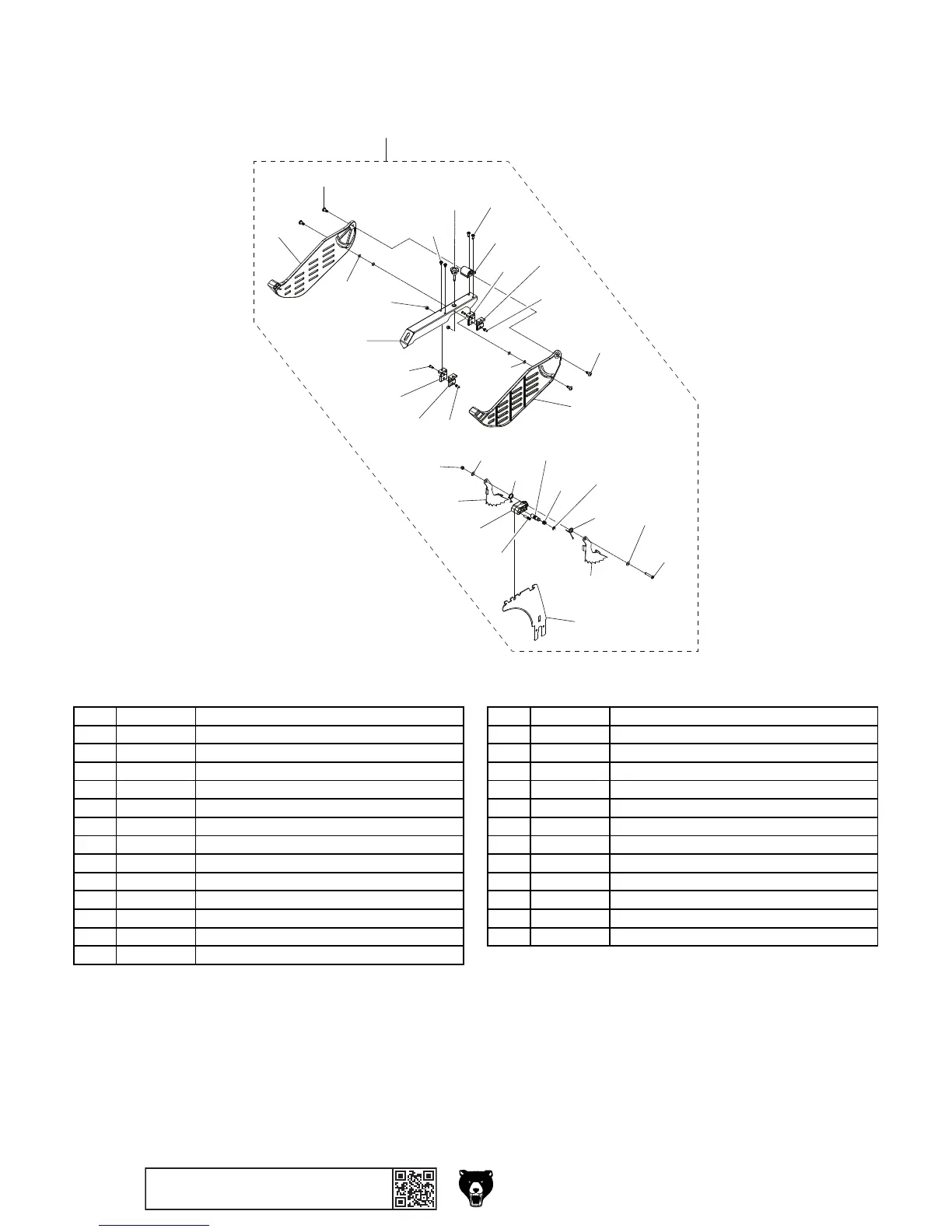

Blade Guard
REF PART # DESCRIPTION REF PART # DESCRIPTION
300A P0869300A BLADE GUARD ASSEMBLY 314 P0869314 ANTI-KICKBACK PAWL (LEFT )
301 P0869301 BLADE GUARD COVER (RIGHT) 315 P0869315 TORSION SPRING (LEFT)
302 P0869302 SHOULDER SCREW M5-.8 X 6, 6 X 8 316 P0869316 ANTI-KICKBACK PAWL MOUNTING BLOCK
303 P0869303 BLADE GUARD COVER (LEFT) 317 P0869317 LOCATING PIN 5.25 X 10, 5 X 16
304 P0869304 O-RING 5.65 X 2 P6 318 P0869318 ANTI-KICKBACK PAWL RELEASE PIN
305 P0869305 BLADE GUARD PIVOT BLOCK 319 P0869319 COMPRESSION SPRING 0.7 X 10.6 X 11
306 P0869306 LOCK NUT M5-.8 320 P0869320 E-CLIP 7MM
307 P0869307 PHLP HD SCR M5-.8 X 6 321 P0869321 TORSION SPRING (RIGHT)
308 P0869308 KNOB BOLT M6-1 X 26, 3-LOBE, D26 322 P0869322 ANTI-KICKBACK PAWL (RIGHT)
309 P0869309 PIVOT GUIDE BRACKET (LEFT) 323 P0869323 PHLP HD SCR M5-.8 X 30
310 P0869310 PIVOT GUIDE BRACKET (RIGHT) 324 P0869324 SPREADER
311 P0869311 PHLP HD SCR M4-.7 X 10 326 P0869326 PHLP HD SCR M5-.8 X 12
312 P0869312 LOCATING PIN 5.3 X 4, 5 X 9.5 327 P0869327 FLAT WASHER 5MM
313 P0869313 BLADE GUARD BODY
