Model G0869/G0870 (Mfd. Since 01/19)
-5-
Table and Fence Controls &
Components
M. Fence Lock Lever: Locks fence position.
Move down to loosen fence; move up to lock
fence.
M

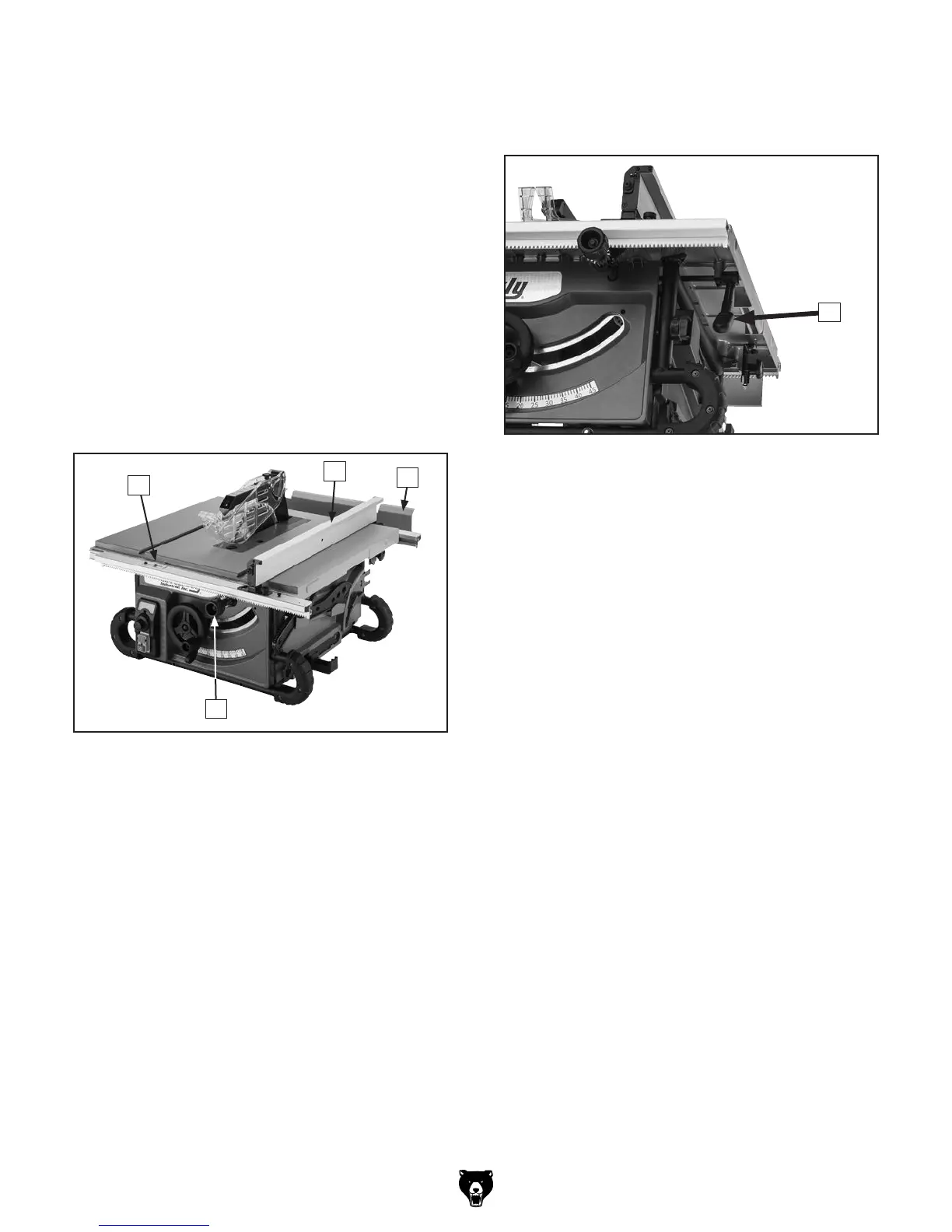

Figure 4. Location of fence lock lever.
I. Fence Scale & Pointer: Indicate distance
of fence from blade. Set to desired width of
finished workpiece.
J. Fence with Narrow-Rip Attachment:
Supports long edge of workpiece during rip
cuts. Narrow-rip attachment pivots down to
allow narrow rip cuts with blade guard installed
(refer to Page 32 for more information).
K. Table Extension: Slides out to provide sup-
port for long workpieces.
L. Fence Adjustment Knob: Rotates to adjust
distance between fence and blade.
Figure 3. Location of table and fence controls
and components.
J
L
I
K
