-4-
Model G0941 (Mfd. Since 09/20)
SETUP
Inventory
Table Saw Unit

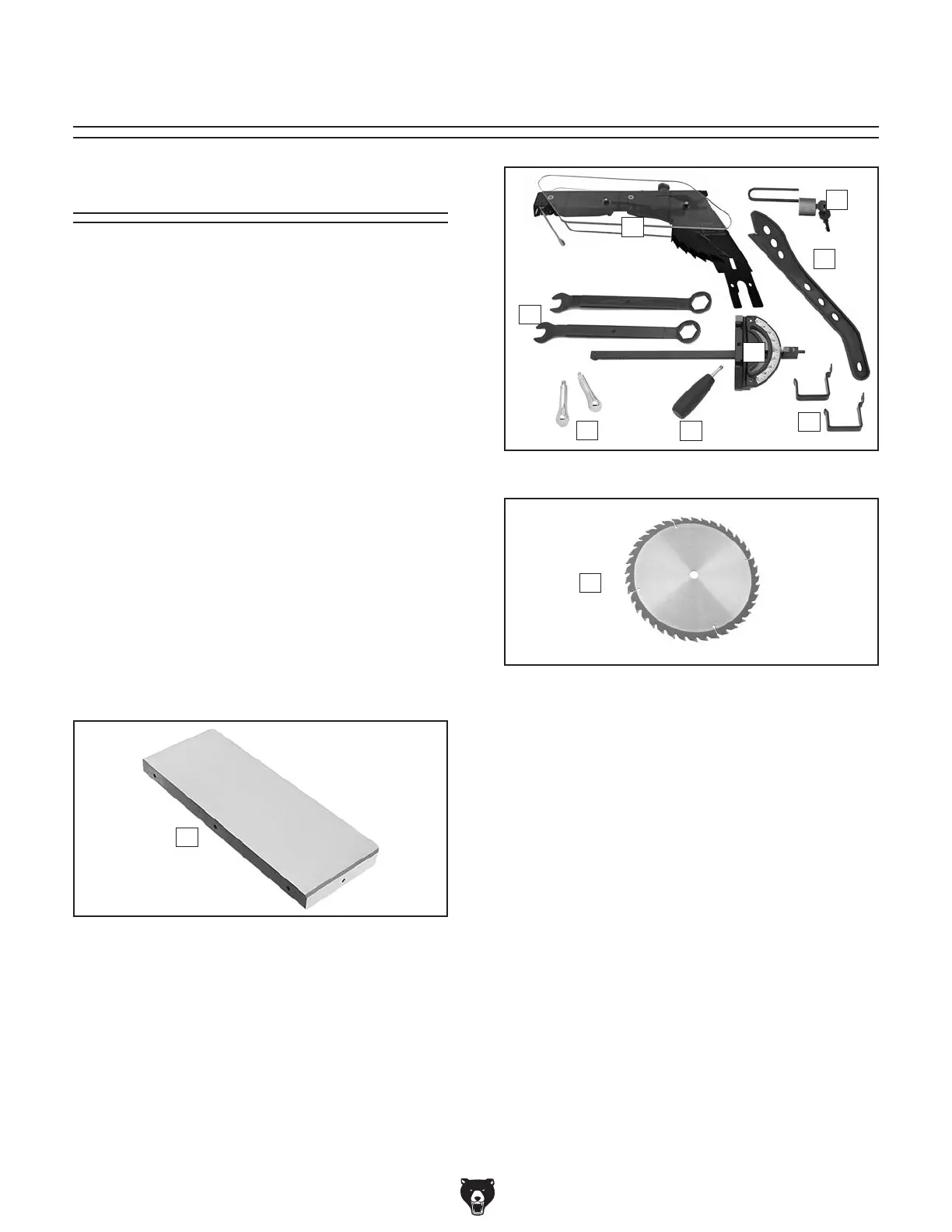

Box Contents (Figures 1–3) Qty
A. Table Saw Unit (not shown) ....................... 1
B
. Cast Iron Extension Wing ........................... 1
C.
Blade Guard Assembly .............................. 1
D.
Push Stick .................................................. 1
E.
Fence Storage Brackets ............................. 2
F.
Miter Gauge ................................................ 1
G.
Miter Gauge Handle ................................... 1
H.
Handwheel Handles ................................... 2
I.
Arbor Wrenches ......................................... 2
J.
Switch Disabling Lock & Key ..................... 1
K
. Blade 10" .................................................... 1
Tools (not shown) Qty
• Open-End Wrenches
8 x 10, 11 x 13, 14 x 17mm ..............1 Each
• Hex Wrenches 3, 4, 5, 6mm ............. 1 Each
• Phillips/Flat Combo Screwdriver ................ 1
Figure 2. Main components.
Figure 3. Saw blade.
K
C
F
E
G
I
H
D
J
Figure 1. Extension wing.
B
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
