-12-
Model G1015 (Mfg. since 7/99)
Inventory
Inventory: (Figure 3) Qty
A. Motor Assembly .......................................... 1
B. Sanding Belt 2" x 72", 100G ....................... 1
C. Pivot Arm Mounting Bracket ....................... 1
D. Sanding Arm Assembly .............................. 1
E. Quick Release Lever Knob ........................ 1
F. Cap Screws
1
⁄4"-20 x
1
⁄2" ............................. 6
G. Mounting Adapter ....................................... 1
H. Drive Wheel Flanges .................................. 2
I. Drive Wheel Arbor Hex Nut
3
⁄4"-16 .............. 1
J. Auxiliary Arbor Flanges .............................. 2
K. Auxiliary Arbor Flanges & Nut
5
⁄8"-18 ......... 1
L. Pivot Arm Bracket ....................................... 1
M. Pivot Arm .................................................... 1
N. Drive Wheel ................................................ 1
O. Tool Rest Support Assembly ...................... 1
P. Tool Rest .................................................... 1
Q. Platen Bracket ............................................ 1
R. Sanding Platen ........................................... 1

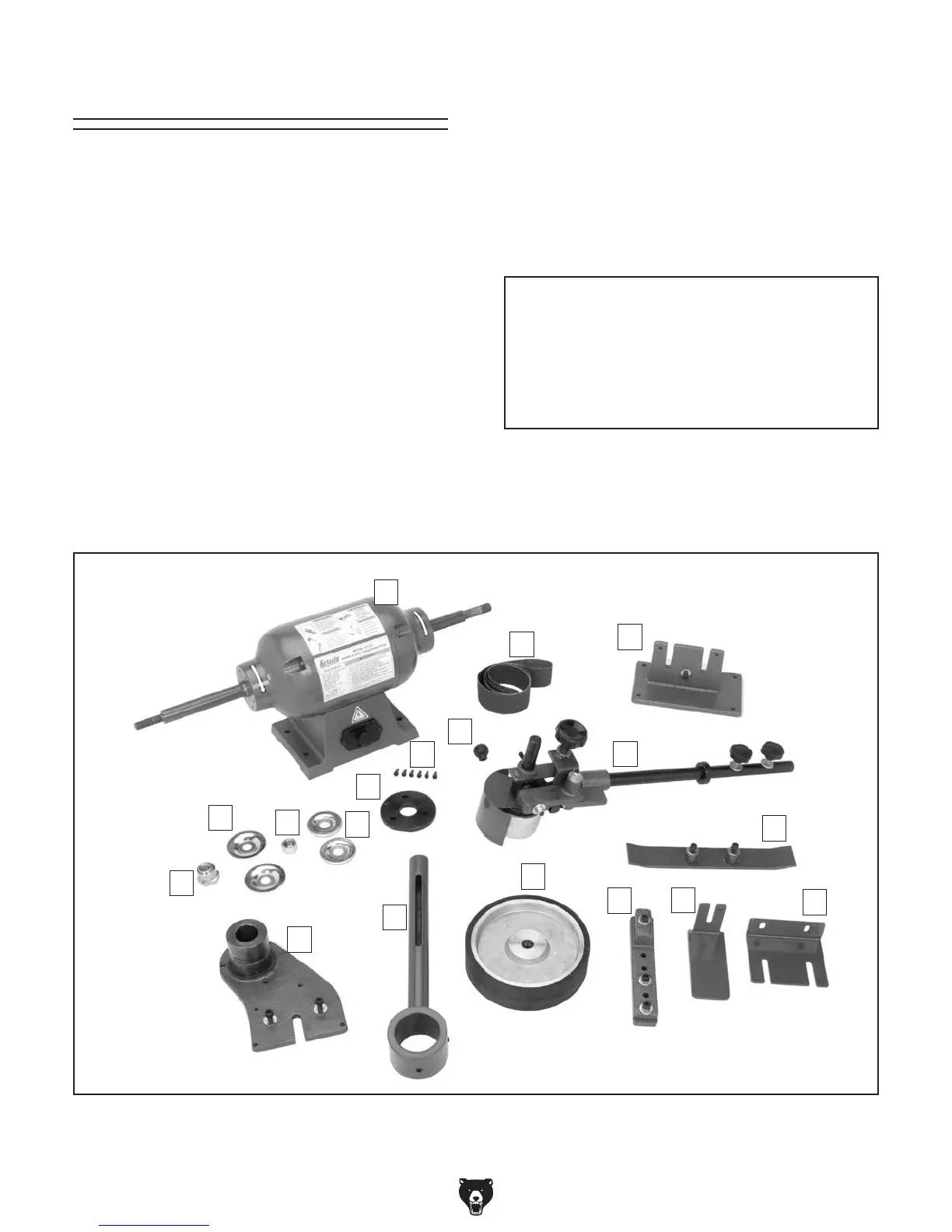

Figure 3. Model G1015 inventory.
A
B
C
D
E
F
G
H
I
J
K
L
M
O
N
P
Q
R
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
