Grizzly G1015 User Manual

Model G1015 (Mfg. since 7/99)
-31-
10
6
11
13
14
16
2
3
20
26
27
7
19
12
14
13
16
9
8
1
4
5
21
28
24
17
18
31
29A
22
25
23
17-1
15
85
15
Main

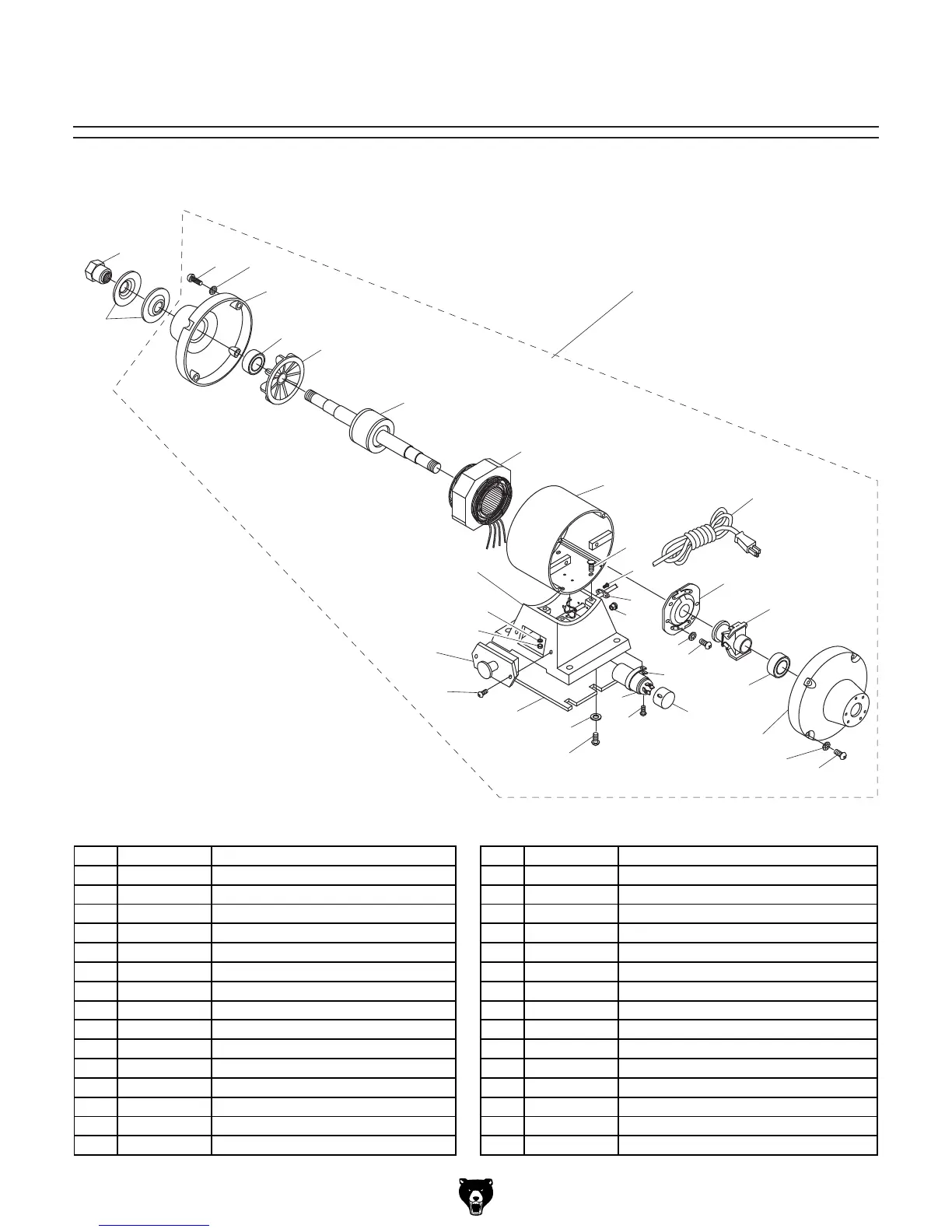

SECTION 9: PARTS
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P1015001 BASE 17 P1015017 CORD CLAMP
2 P1015002 MOTOR CASE 17-1 P1015017-1 STRAIN RELIEF
3 P1015003 PHLP HD SCR 5/16-18 X 1-1/4 18 P1015018 PHLP HD SCR 10-24 X 1-1/4
4 P1015004 LOCK WASHER 5/16 19 P1015019 POWER CORD 16GA/3W 73"L
5 P1015005 HEX NUT 5/16-18 20 P1015020 ON/OFF BUTTON
6 P1015006 STATOR WINDING 21 P1015021 PHLP HD SCR 10-24 X 1/2
7 P1015007 CONTACT PLT, LG, INT PT 22 P1015022 S CAPACITOR 400M 125V 1-3/4 X 3-3/8
8 P1015008 LOCK WASHER 3/16 23 P1015023 CAPACITOR COVER
9 P1015009 PHLP HD SCR 10-24 X 1/2 24 P1015024 CAPACITOR CLAMP
10 P1015010 ROTOR/SHAFT 25 P1015025 PHLP HD SCR 10-24 X 3/8
11 P1015011 FAN 26 P1015026 COVER PLATE
12 P1015012 CENTRIFUGAL SWITCH 27 P1015027 FLAT WASHER 1/4
13 P1015013 END BELL 28 P1015028 PHLP HD SCR 10-24 X 3/8
14 P1015014 BALL BEARING 6206ZZ 29A P1015029A WHEEL FLANGE 64.7 X 19.2 X 2.8MM
15 P1015015 LOCK WASHER 1/4 31 P1015031 ARBOR NUT 5/8-18 LH
16 P1015016 PHLP HD SCR 1/4-20 X 5/8 85 P1015085 COMPLETE MOTOR ASSEMBLY
