Grizzly G1033 User Manual

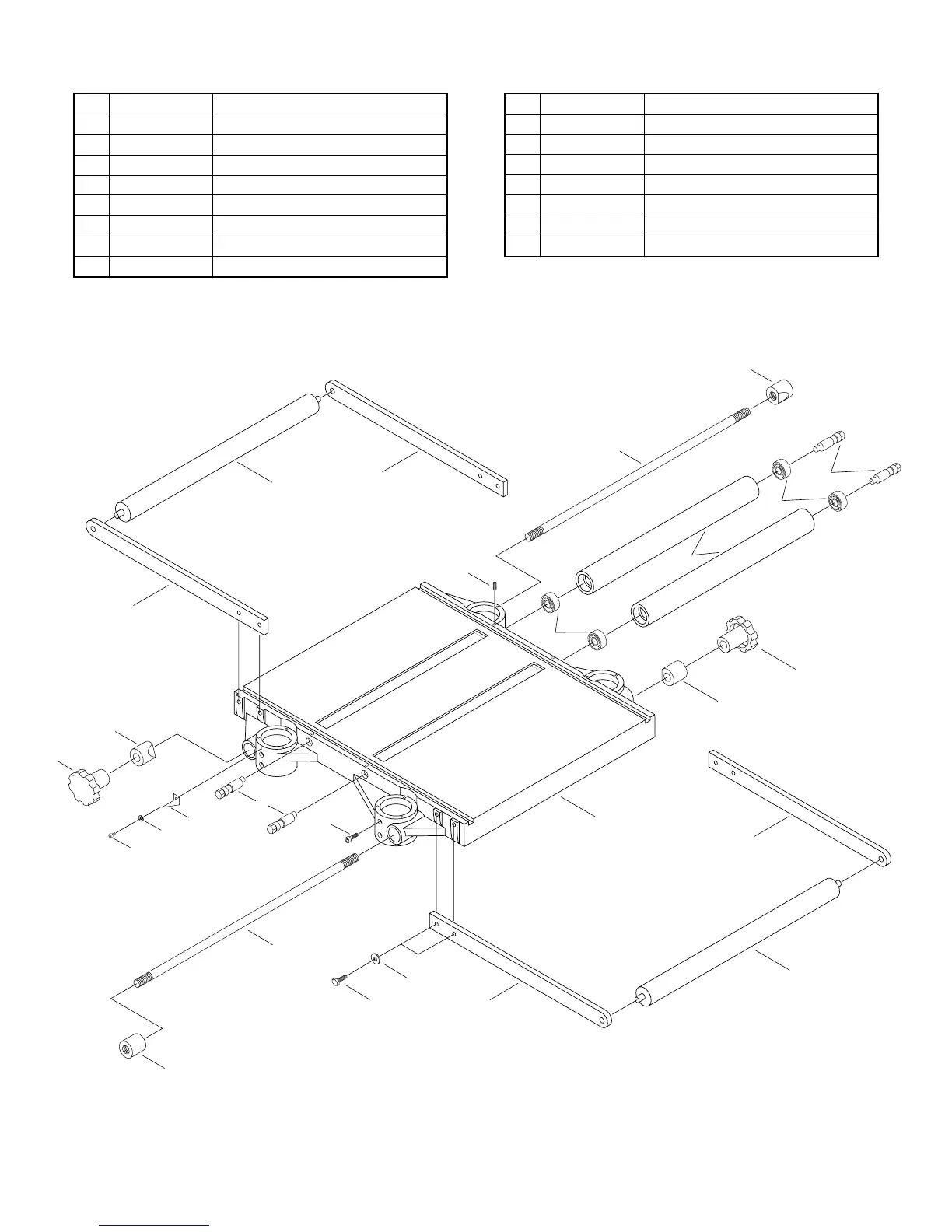

G1033 20" Planer -31-
11
11
12
1
14
13
7
6
4
8
10
12
11
11
7
6
2
3
4
3
8
9
5
15
16
17
9
01 P1033201 MIDDLE TABLE
02 P1033202 ROLLER
03 P6201 BEARING 6201
04 P1033204 ECCENTRIC SHAFT
05 PSS04M SETSCREW M6-1.0X12
06 P1021143 THREADED GIB
07 P1033207 LOCK ROD
08 P1021146 GIB
09 P1021145 KNOB
REF PART # DESCRIPTION
10 PSB14M CAP SCREW M10-1.25X20
11 P1033211 EXT ROLLER BAR
12 P1033212 EXTENSION ROLLER
13 PB32M HEX BOLT M10-1.5X25
14 PW04M FLAT WASHER 10MM
15 P1033071 POINTER
16 PSB04M CAP SCREW M6-1.0X10
17 PLW03M LOCK WASHER 6MM
REF PART # DESCRIPTION
