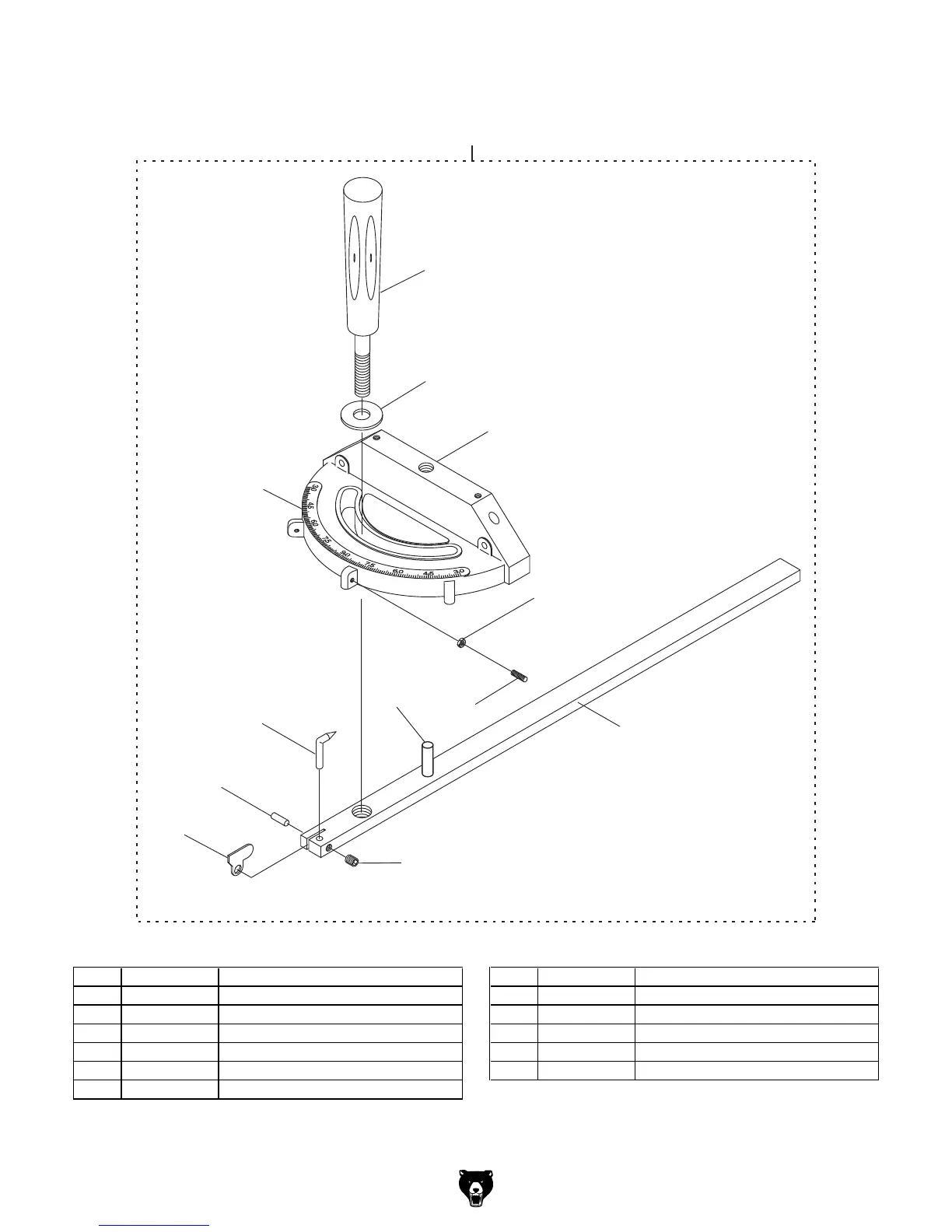

Miter Gauge
REF PART # DESCRIPTION REF PART # DESCRIPTION
601A P1023401A MITER GAUGE HANDLE V2.10.01 609A PSS29 SET SCREW 10-24 X 1/4
602A PW07 FLAT WASHER 5/16 610 P1026610 MITER GAUGE STOP
603 P1026603 MITER GAUGE BODY V2.05.07 611 P1023411 POINTER
604 P1035604 MITER BAR 612 P1026612 MITER GAUGE SCALE
604A P1035604A MITER GAUGE ASSY V1.10.02 614 PRP14M ROLL PIN 3 X 6
607 PN07 HEX NUT 10-24 615 P1026615 MITER GAUGE HINGE PIN
608A PSS32 SET SCREW 10-24 X 3/4

Grizzly G1035 Specifications

General

Disc Diameter	6 inches
Belt Size	4 x 36 inches
Disc Speed	3450 RPM
Voltage	110V
Arbor Size	1/2 inch
Weight	44 lbs
Type	Benchtop Belt/Disc Sander
