G1182 6" Series Jointers -13-
6. The power switch is already installed on the
right hand panel of the stand. To complete the
wiring, it is first necessary to remove the
switch assembly from the stand. Remove the
two Phillips
®
head screws holding the metal
mounting plate to the stand. The entire switch
can then be pulled out of the stand.
7. Turn the stand upright and securely tighten all
fasteners on the stand and dust chute.
This step will require at least two people. To
mount the jointer to the stand:
1. Lift the main unit onto the stand, making sure
to position the cutterhead pulley over the slot
in the top of the stand.
2. Carefully align the mounting holes in the
stand with the threaded holes in the base of
the jointer. Secure the jointer to the stand
using the three
3
⁄8" - 16 x
3
⁄4" hex bolts and
3
⁄8"
flat washers provided. Be sure not to over-
tighten
Jointer to Stand
Stand (G1182Z, ZX & ZHW)
The stand for the Z-Series models are pre-assem-
bled.

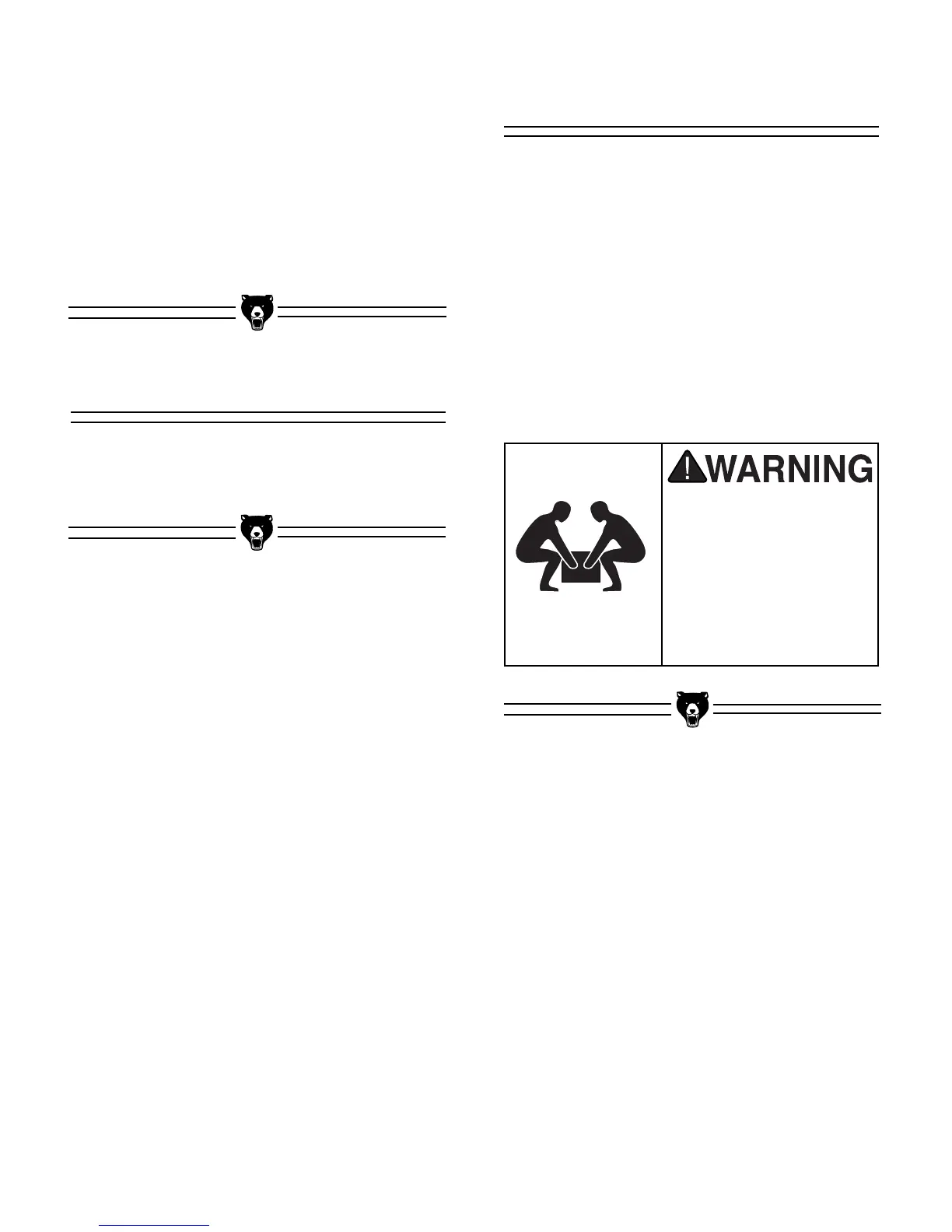

The jointer main unit is
very heavy – you will
need assistance when
lifting it onto the stand.
Serious personal injury
may occur if safe mov-
ing methods are not fol-
lowed.
