Grizzly G1182HW User Manual

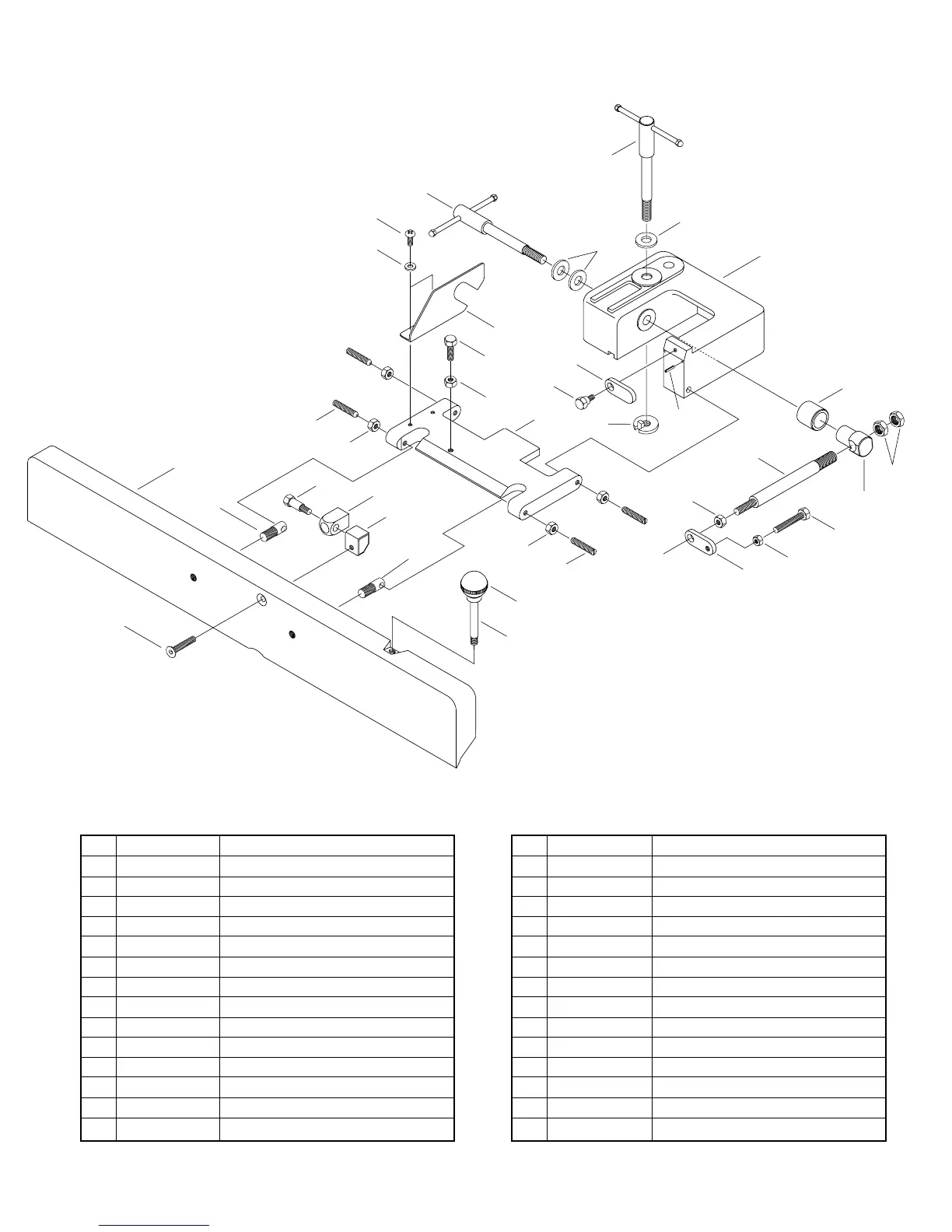

G1182 6" Series Jointers -31-
108
101
102
110
111
109
103
124
102
106
107
104
105
105
104
115
112
113
116
120
119
114
121
123
122
122
130
129
128
125
117
118
123
126
126
127
101 PG1182101 FENCE
102 PG1182102 PIVOT STUD
103 PG1182103 FENCE HINGE
104 PG1182104 SPECIAL SCREW
105 PN08 HEX NUT
3
⁄8"-16
106 PG1182106 TILT LEVER
107 PG1182107 KNOB
108 PG1182108 SPECIAL SCREW
109 PG1182109 FENCE BRACKET
110 PG1182110 FENCE STOP BRACKET
111 PG1182111 SPECIAL CAP SCREW
112 PN10 HEX NUT
7
⁄16"-20
113 PG1182113 FENCE ADJUSTMENT ROD
114 PG1182114 FENCE TILT CLAMP
115 PG1182115 90° STOP TAB
REF PART # DESCRIPTION
116 PRP18M ROLL PIN 4 x 12mm
117 PG1182117 SPECIAL BOLT
118 PG1182118 STOP TAB
119 P1023040 JAM NUT
5
⁄8"-11
120 PG1182120 FENCE TILT SLEEVE
121 PG1182121 FENCE BASE
122 PW01 FLAT WASHER
1
⁄2"
123 PG1182123 LOCKING SCREW
124 PG1182124 SPECIAL NUT
125 PB03 HEX BOLT
5
⁄16"-18 x 1"
126 PN02 HEX NUT
5
⁄16"-18
127 PB22 HEX BOLT
5
⁄16"-18 x 1
3
⁄4"
128 PG1182128 FENCE LOCK BRACKET
129 PS07 SCREW
1
⁄4"-20 x
3
⁄8"
130 PW06 FLAT WASHER
1
⁄4"
REF PART # DESCRIPTION
FENCE
