Grizzly G1182HW User Manual

-34- G1182 6" Series Jointers
401
403
406
403
407
408
409
410
411
412
404
405
402
413
REF PART # DESCRIPTION
401 PB19 HEX BOLT
1
⁄4"-20 X
1
⁄2"
402 PW06 FLAT WASHER
1
⁄4"
403 PG1182HW403 BRONZE FLAT WASHER
1
⁄2"
404 PB03 HEX BOLT
5
⁄16"-18 X 1"
405 PW07 FLAT WASHER
5
⁄16"
406
PG1182HW406 LEAD SCREW BRACKET
407 PG1182HW407 LEAD SCREW
408 PG1182HW408 LOCK COLLAR
409 PG1182HW409 HANDWHEEL
411 PW03 FLAT WASHER 10
412 PS01 PHLP HD SCR 10-24 X
1
⁄2"
413 PSS11 SET SCREW
1
⁄
4"-20 X
1
⁄
4"
The handwheel adjustment mechanism
is substituted for the lever adjustment
mechanism on the G1182HW &
G1182ZHW only.

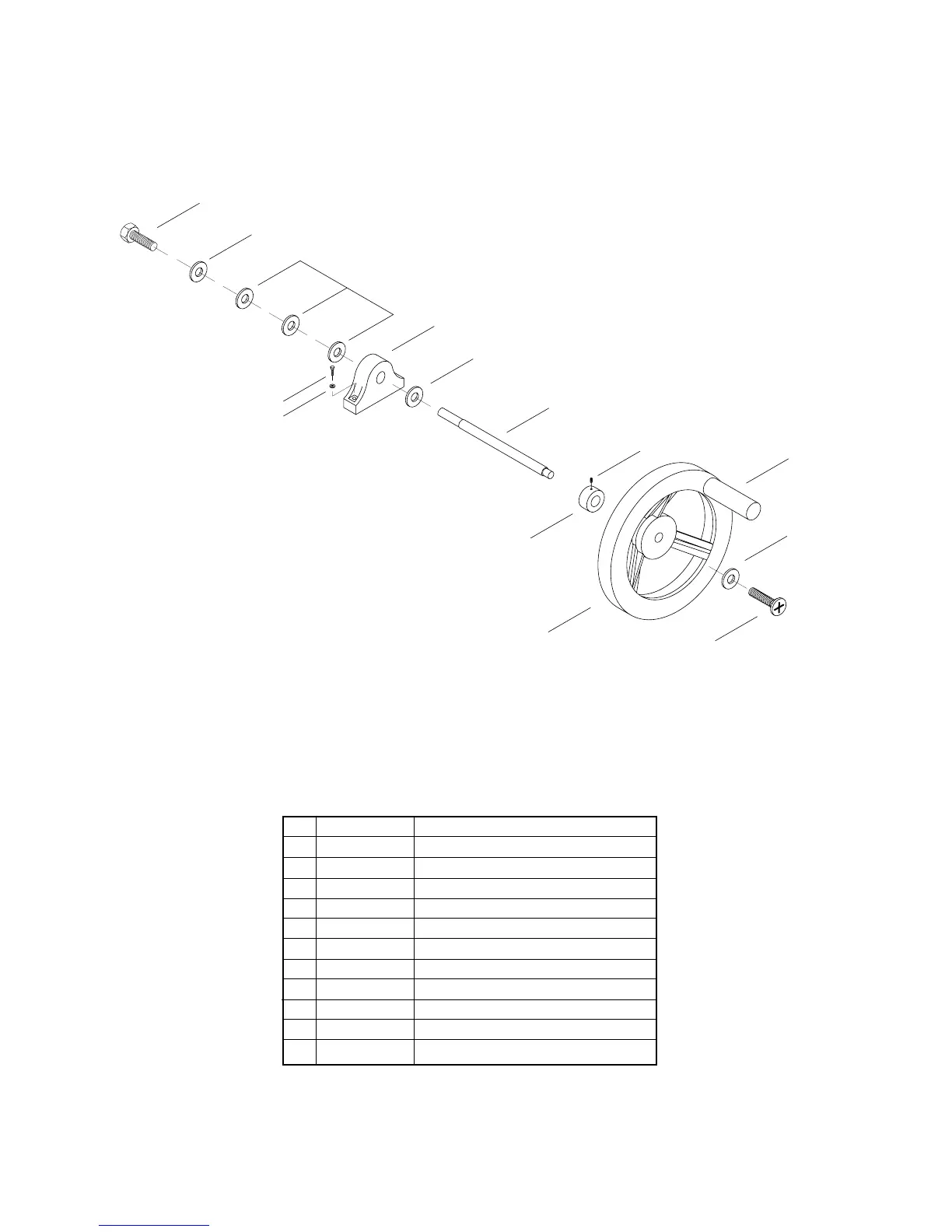

HANDWHEEL ASSEMBLY FOR
MODEL G1182HW & G1182ZHW
