Model G4002/G4003 (Mfd. Since 3/14)
-57-

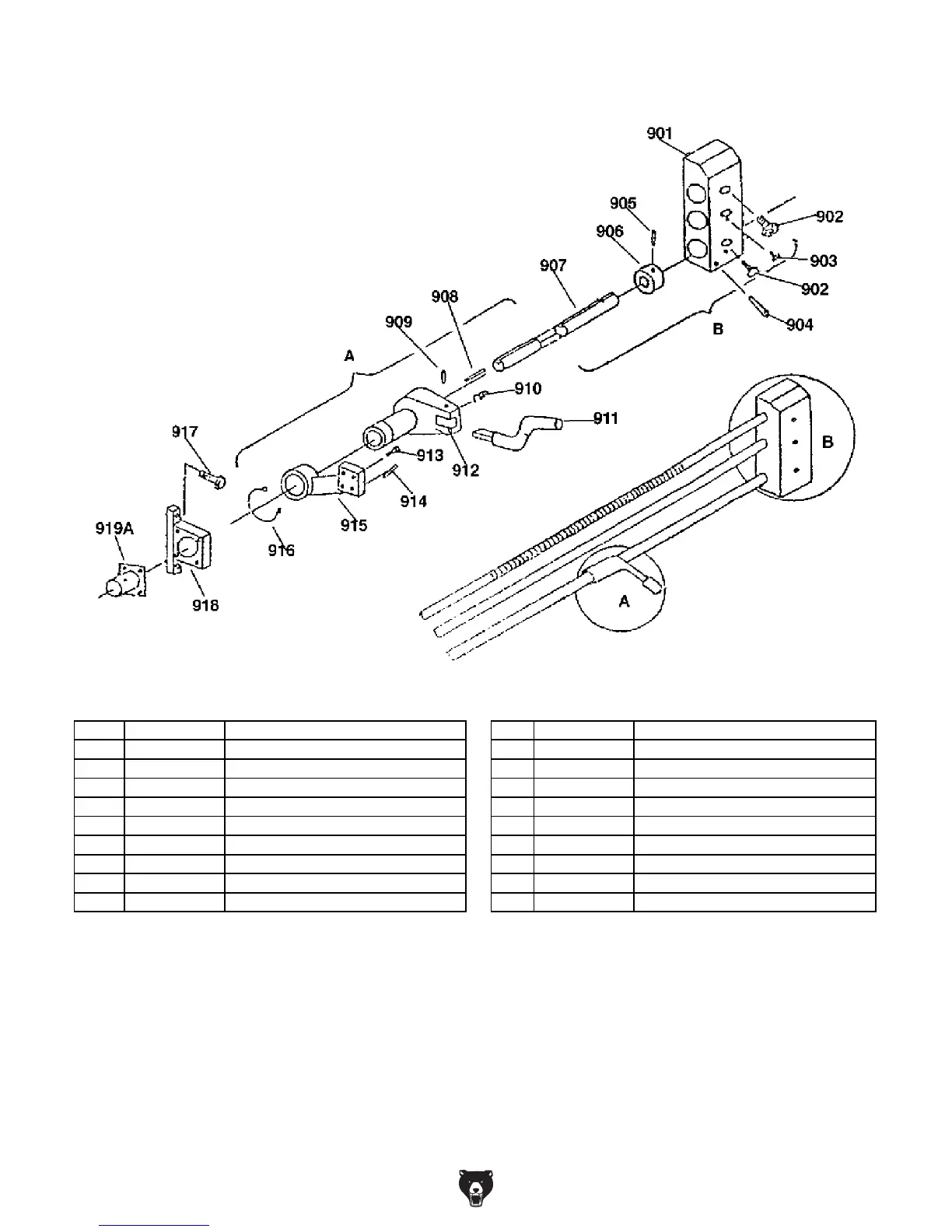

Feed Rod Leadscrew
p PART # DESCRIPTION REF PART # DESCRIPTION
901 P4002901 BRACKET 910 P4002910 COMPRESSION SPRING 7020
902 P4002902 CAP SCREW M6-1 X 11 911 P4002911 HANDLE
903 P4002903 OIL CAP 6MM 912 P4002912 BRACKET
904 P4002904 ROLL PIN 6 X 55 913 P4002913 CAP SCREW M6-1 X 14
905 P4002905 SET SCREW M6-1 X 6 914 P4002914 ROLL PIN 5 X 25
906 P4002906 COLLAR 915 P4002915 BRACKET
907V2
P4002907V2
SPINDLE ROD V2.12.14 (G4002)
916 P4002916 EXT RETAINING RING 30MM
907 P4003907 SPINDLE ROD (G4003) 917 P4002917 CAP SCREW M8-1.25 X 25
908 P4002908 KEY 918 P4002918 BRACKET
909 P4002909 ROLL PIN 4 X 20 919A P4002919A FWD/REV SWITCH SQUARE TYPE
