Model G4002/G4003 (Mfd. Since 3/14)
-53-
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P4002601 SCREW 613 P4002613 THRUST BEARING 8101
602 P4002602 GIB 614 P4002614 INDEX RING
603 P4002603 COMPOUND SLIDE 615A P4002615A SPANNER NUT
604 P4002604 HEX NUT M8-1.25 616A P4002616A BRACKET
605 P4002605 COMPOUND T-BOLT 617A P4002617A SHORT HANDLE
606 P4002606 COMPOUND GIB BOLT 617 P4002617 LONG HANDLE W/SCREW
607 P4002607 LEAD SCREW NUT 618A P4002618A SET SCREW M5-.8 X 5
608 P4002608 SET SCREW M6-1 X 8 619 P4002619 CAP SCREW M6-1 X 15
609 P4002609 HEX NUT M6-1 620 P4002620 COMPOUND REST
610 P4002610 COMPOUND REST LEADSCREW 640 P4002640 PIN
611 P4002611 THRUST BEARING 8101 641 P4002641 COMPRESSION SPRING 1 X 5 X 12
612 P4002612 BRACKET

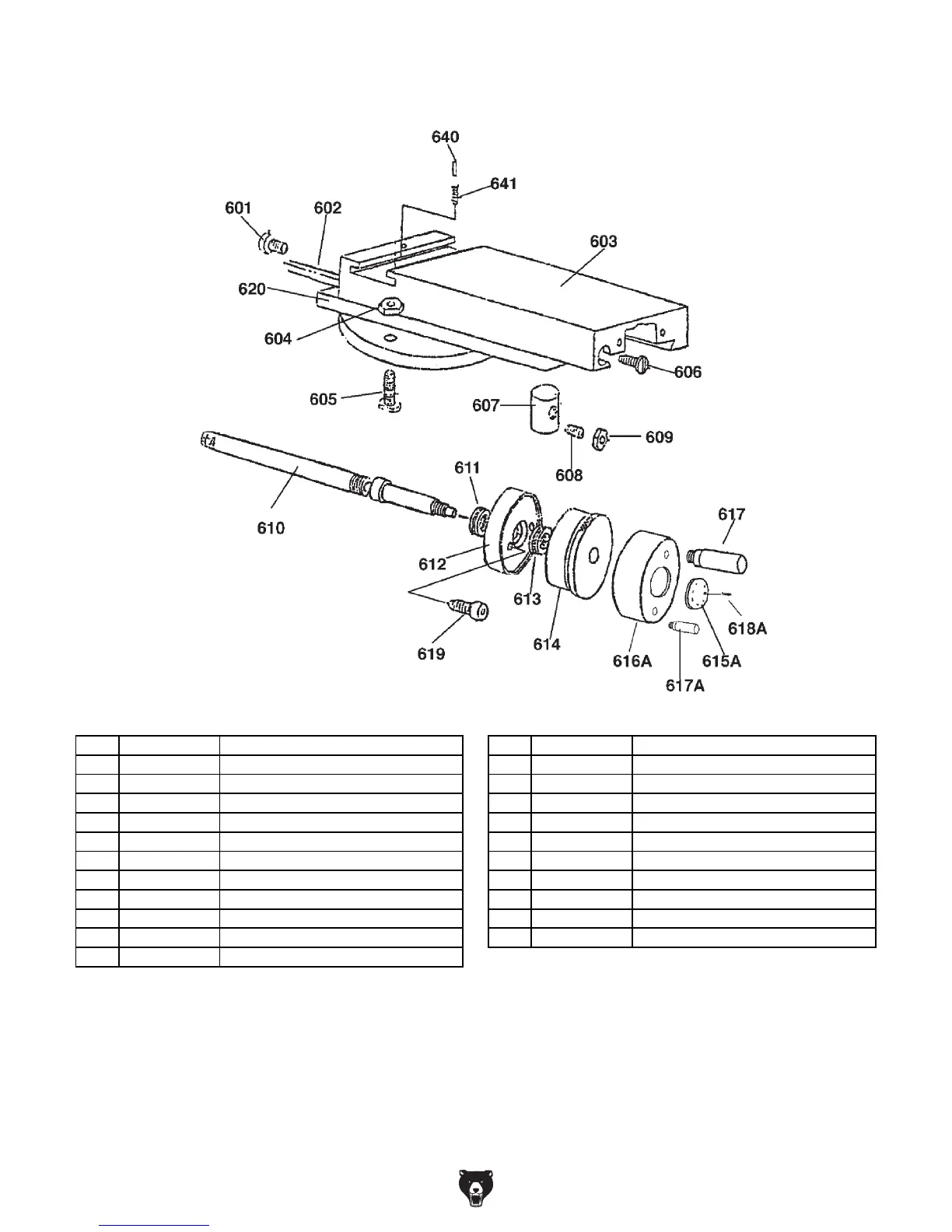

Compound Rest
