Model G4002/G4003 (Mfd. Since 3/14)
206
205
237
208

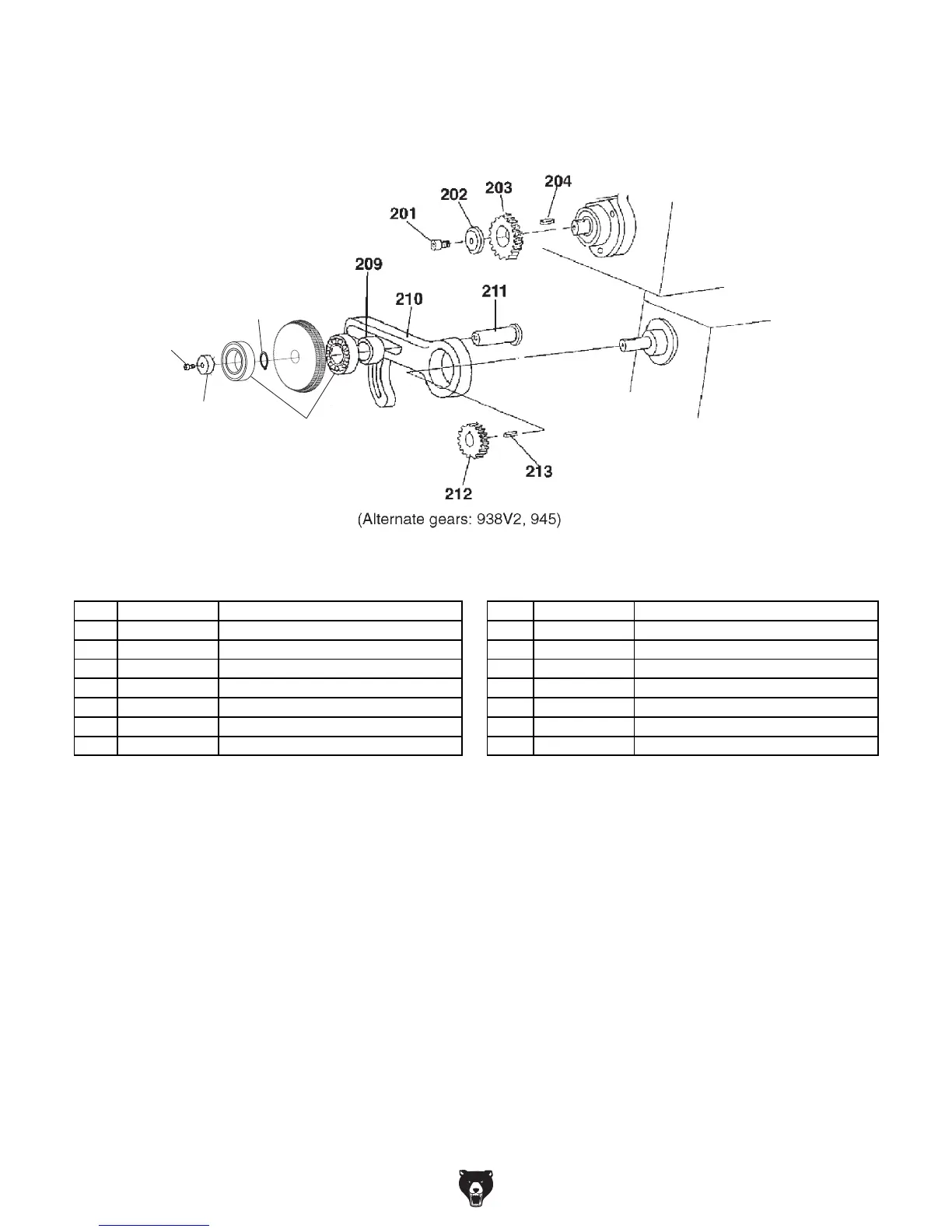

Change Gear Train
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P4002201 CAP SCREW M6-1 X 12 209 P4002209 SPACER
202 P4002202 WASHER 210 P4002210 QUADRANT
203 P4002203 GEAR 211 P4002211 SHAFT
204 P4002204 KEY 5 X 5 X 30 212 P4002212 GEAR 40T
205 P4002205 CAP SCREW M6-1 X 12 213 P4002213 KEY 5 X 5 X 30
206 P4002206 WASHER 237 P4002237 EXT RETAINING RING 35MM
207B P4002207B GEAR 86T/91T V3.08.05 938V2 P4003938V2 GEAR 35T V2.08.05
208 P4002208 BALL BEARING 6003-2RS 945 P4003945 GEAR 36T
