-32-
Model G4003 (Mfd. Since 6/20)

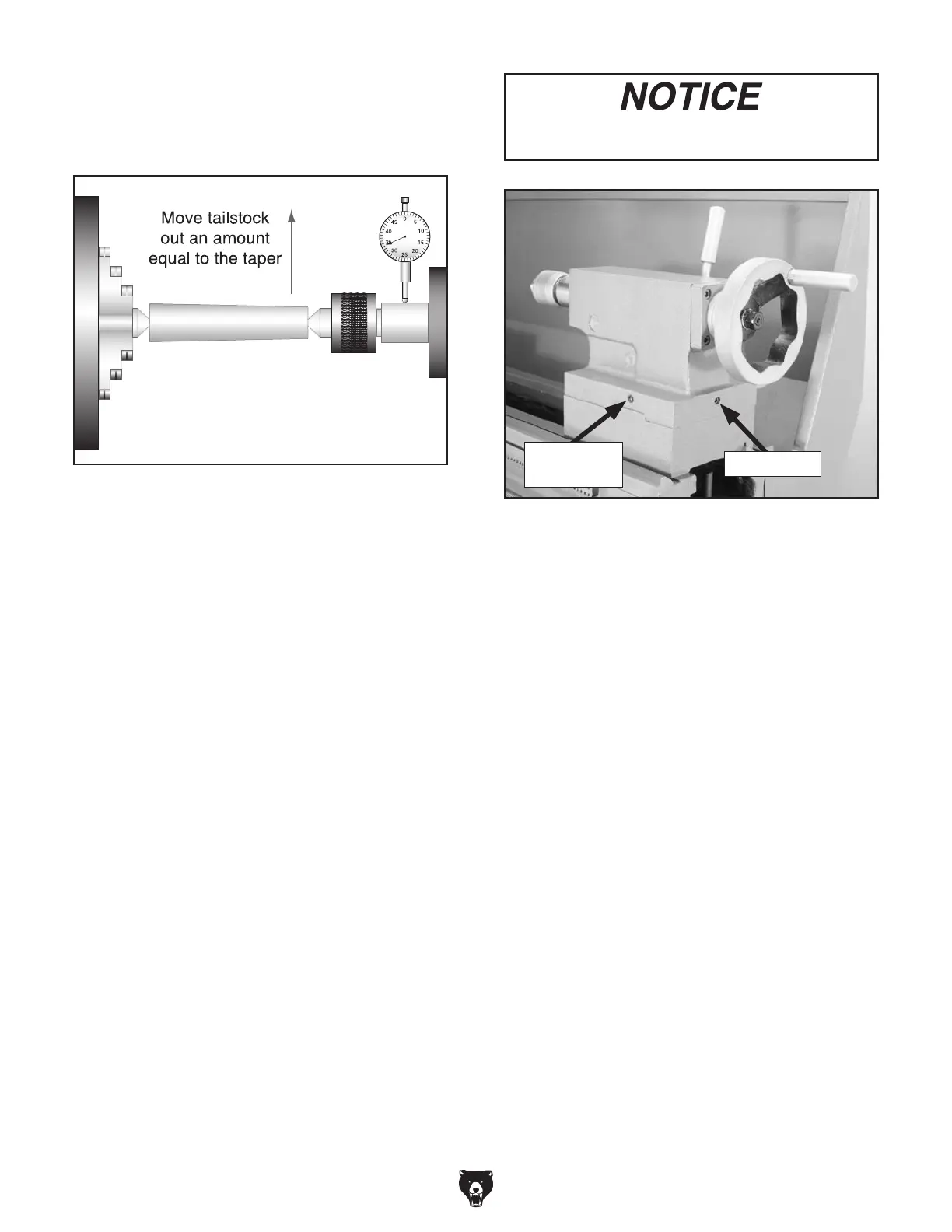

Figure 38. Adjusting for tailstock end taper.
7. Loosen the tailstock mounting bolt. Adjust
the tailstock offset by the amount of the
taper by turning the adjustment setscrews.
See Figure 39. Turn another .010'' off of the
stock and check for taper. Repeat as neces-
sary until the desired amount of accuracy is
achieved.
— If the stock is thinner at the tailstock end,
the tailstock needs to be moved away from
the operator by at least the amount of the
taper. See Figure 38.
Viewed from above.
Lock down the tailstock after each adjust-
ment.
Figure 39. Tailstock offset adjustment screw.
Lock Screw
Adjustment
Screw
